Canon LBP7110Cw

To Next Page

To Previous Page

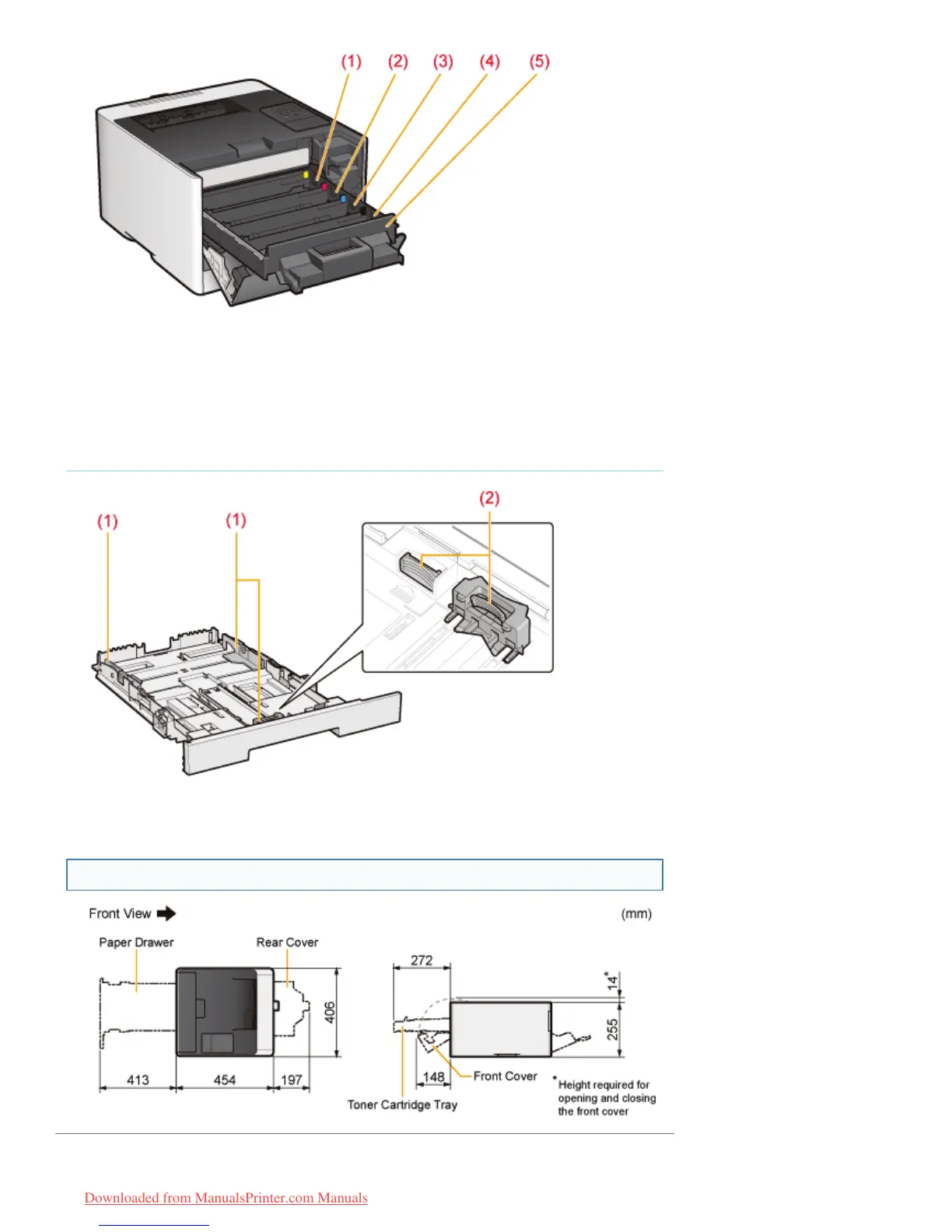

(1) Y (Yellow) Toner Cartridge Slot (4) K (Black) Toner Cartridge Slot

(2) M (Magenta) Toner Cartridge Slot

(5) Toner Cartridge Tray

(3) C (Cyan) Toner Cartridge Slot

Paper Drawer

(1) Paper Guide (2) Lock Release Lever

Dimensions of Each Part

㻡㻞㻌㻛㻌㻡㻝㻠
