7.Starttheengine.Pressandholdtheattachmentse-
lectorbuttonfor1stogetdirectlytothededicatedtab
foroperationalsettingsoftheauxiliaryhigh-owhy-
drauliccircuit.

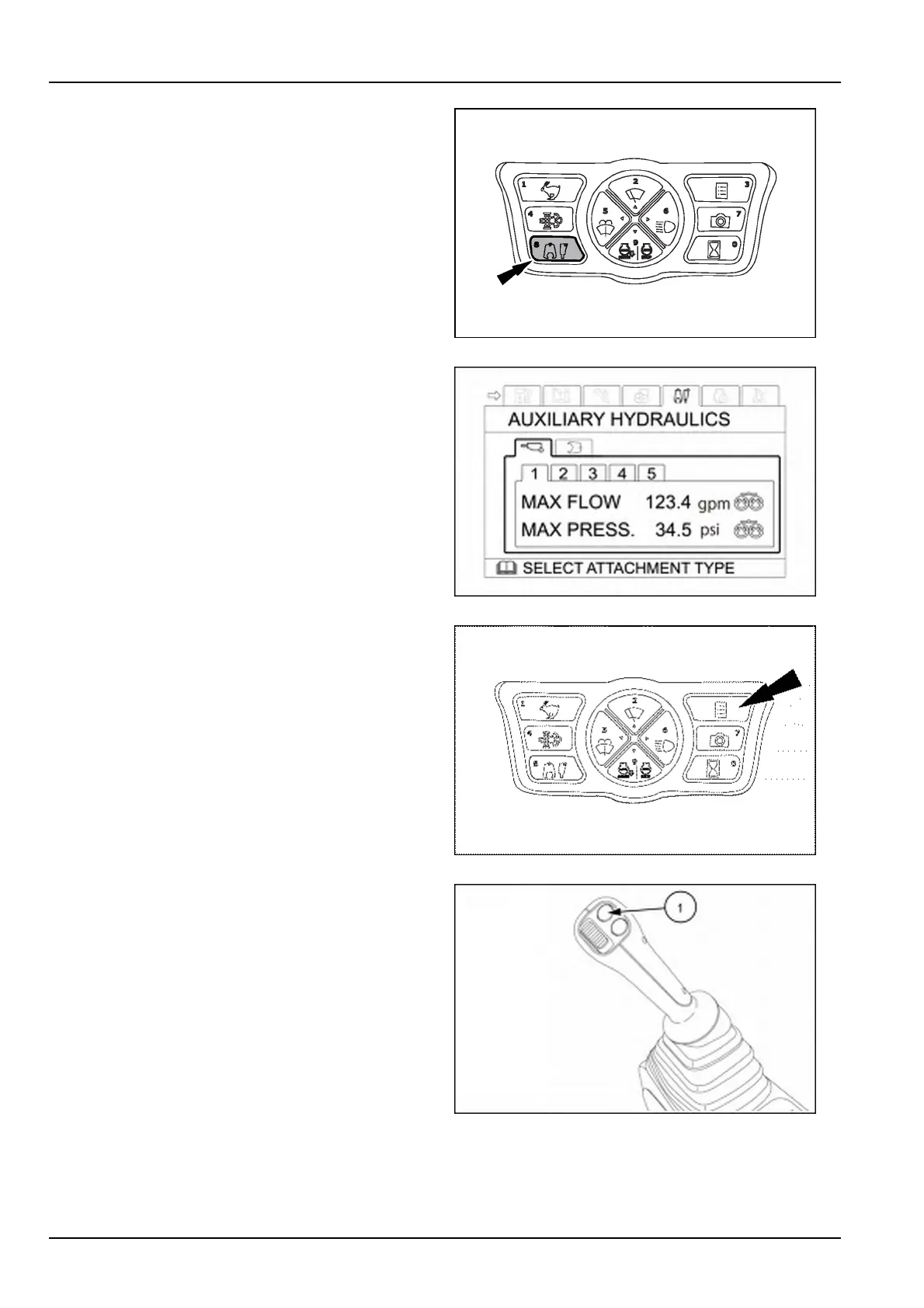

SMIL14CEX1709AA15
8.Selectthebreakerpageandsettheproperowrate/
pressurecombination.
NOTICE:Themaximumworkingpressureoftheaux-
iliaryhigh-owhydrauliccircuitshallbesetaccording
tothespecicationofthebreaker.
NOTICE:TheworkingpressureoftheSingle-acting
auxiliaryhigh-owhydrauliccircuitshallbesetmanu-
allybytheportreliefvalveontherelevantsectionof
thecontrolvalve.
SMIL15CEXZZ48AA16
9.Pressthedisplaymodeselectorbuttontoconrmthe
selection.
10.SelecttheSPworkmode.
11.Setthegatelockleverinunlockposition.
12.Operatethecontrolsofboom,armandbucketinor-
dertopositionthebreakerrighttothestructureorto
theobjecttobecrushed.
SMIL15CEX1234AA17
13.PressandholdtheON-OFFbutton(1)locatedon
theright-handcontrollevertooperatethehydraulic
breakerwiththecontinuousselectedowproviding
aconstantblowingfrequency.Releasethebuttonto
stopbreakeroperation.
NOTE:Tochangetheblowingfrequency,getback
tothededicatedtabforoperationalsettingsofthe
auxiliaryhigh-owhydrauliccircuit,andchangethe
owrate/pressurecombinationtobeused.
