9-ACCESSORIES

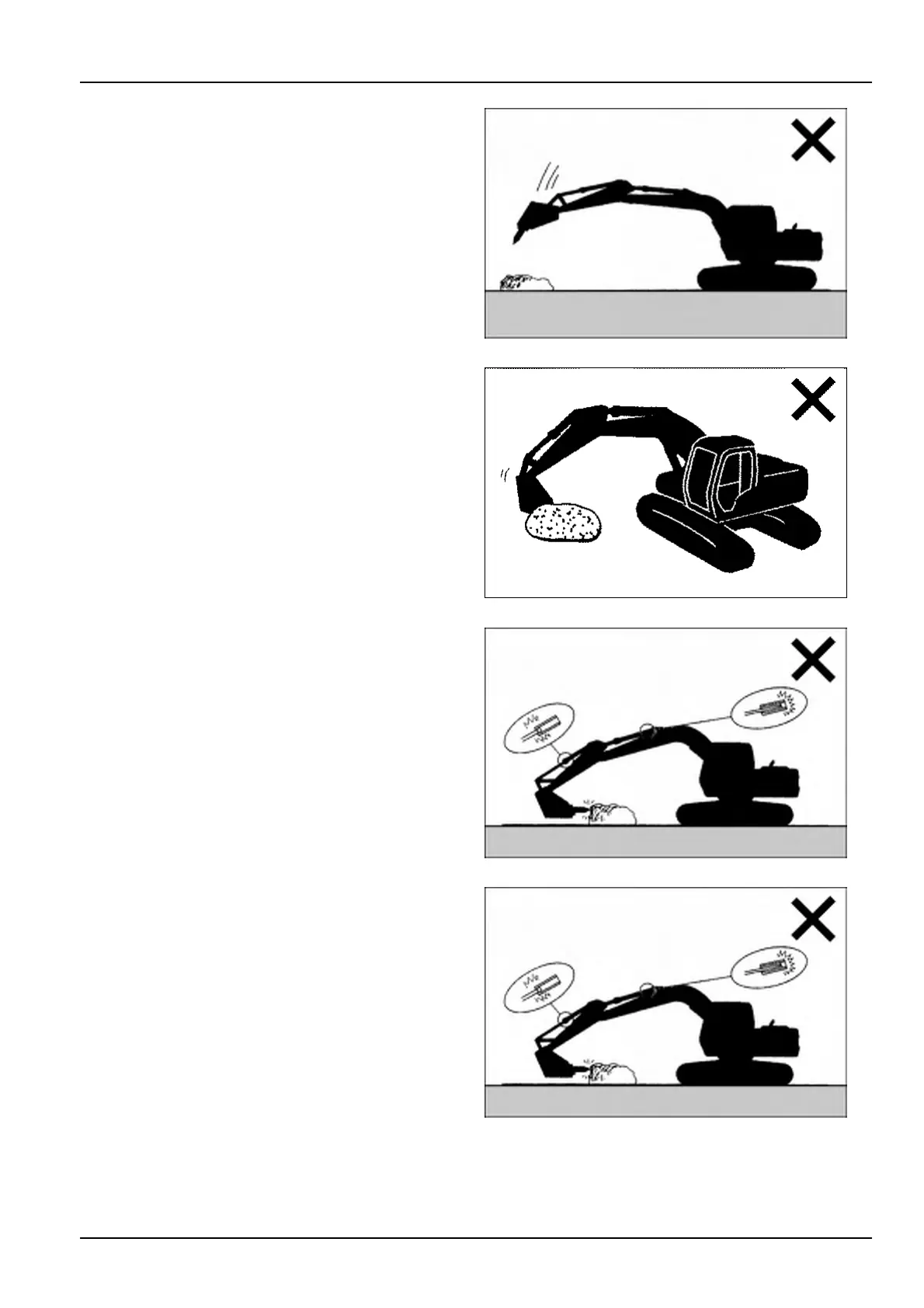

Avoidhittingobjectswithbreaker.Thebreakerisheav-

ierthanthebucketandlowersfaster.Thismaycause

damagestothebreaker,attachment,andupperstructure.

Alwayslowerthebreakerslowlyuntilthechiselpoint

touchestheobjecttobebrokenbeforestartingbreaker

operation.

NH019519

Donotusethehydraulicbreakerand/orswingfunctionto

pushobjectsasdamagestotheattachmentmayresult.

NH019620

Donotoperatethebreakerwiththeexcavatorcylinders

fullyextendedorretractedtoavoidattachmentand/or

cylinderdamage.

NH019721

Stopworkingifhydraulichoseslookabnormallybent.

ContactyourauthorizedDealer.

NH019722

9-17
