Cisco ME 3400 User Manual

11-2
Cisco ME 3400 Ethernet Access Switch Software Configuration Guide
OL-9639-07
Chapter 11 Configuring VLANs
Understanding VLANs

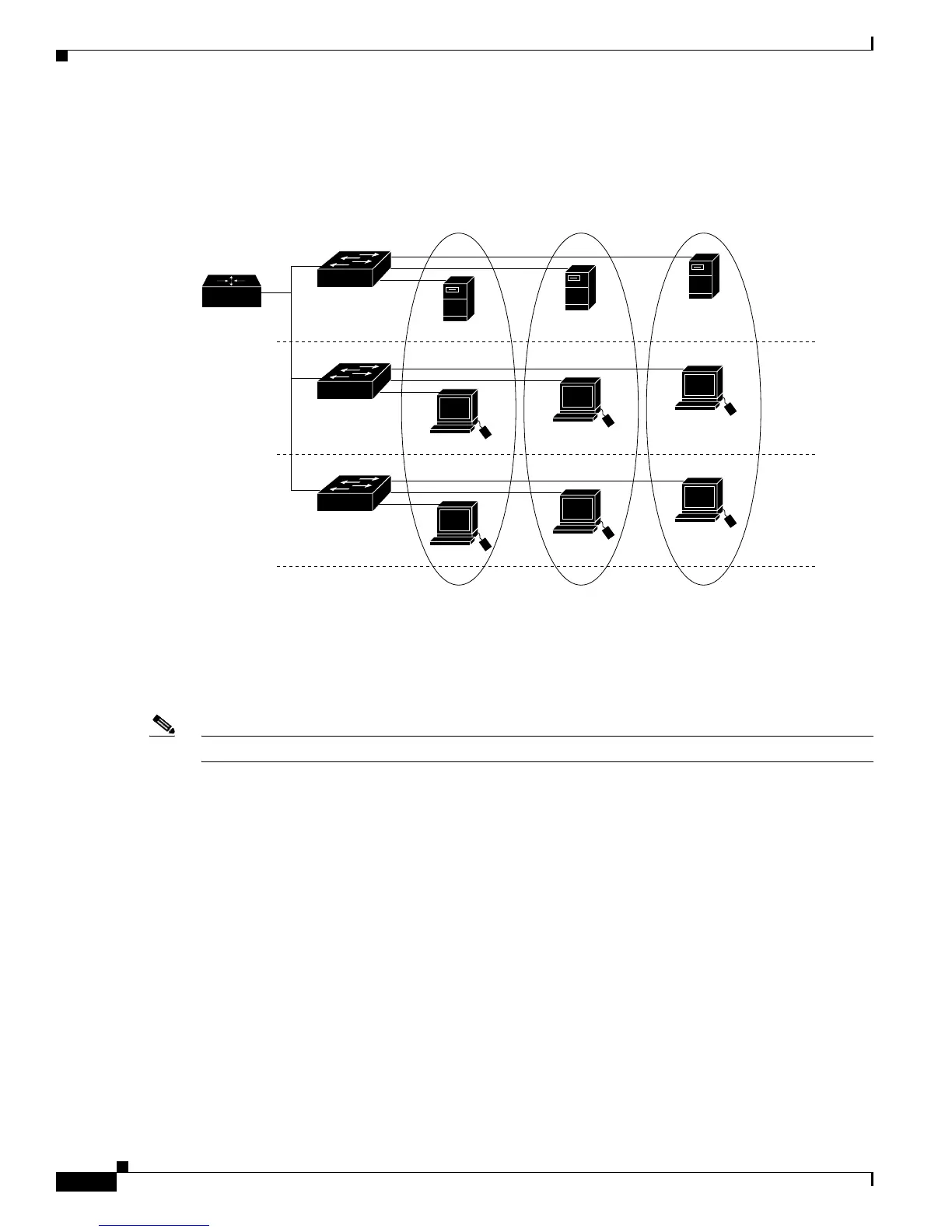

Figure 11-1 shows an example of VLANs segmented into logically defined networks.
Figure 11-1 VLANs as Logically Defined Networks
VLANs are often associated with IP subnetworks. For example, all the end stations in a particular IP
subnet belong to the same VLAN. Interface VLAN membership on the switch is assigned manually on
an interface-by-interface basis. When you assign switch interfaces to VLANs by using this method, it is
known as interface-based, or static, VLAN membership.
Note The switch does not support VLAN Trunking Protocol (VTP).
Traffic between VLANs must be routed. Switches that are running the metro IP access image can route
traffic between VLANs by using switch virtual interfaces (SVIs). To route traffic between VLANs, an
SVI must be explicitly configured and assigned an IP address. For more information, see the
“Switch
Virtual Interfaces” section on page 9-5 and the “Configuring Layer 3 Interfaces” section on page 9-22.
This section includes these topics:
• Supported VLANs, page 11-3
• Normal-Range VLANs, page 11-3
• Extended-Range VLANs, page 11-4
• VLAN Port Membership Modes, page 11-4
• UNI-ENI VLANs, page 11-5
Floor 1
Floor 2
Engineering
VLAN
Cisco router
Gigabit
Ethernet
Floor 3
Marketing
VLAN
Accounting
VLAN
90571

Cisco ME 3400 Specifications

General

Category	Switch
Rack Mountable	Yes
Jumbo Frame Support	Yes
Authentication Method	RADIUS, TACACS+
RAM	128 MB
Flash Memory	32 MB
Power Device	Internal power supply
Model	ME 3400
Layer	Layer 2
MAC Address Table Size	8000 entries
Remote Management Protocol	SNMP, Telnet, SSH, HTTP, HTTPS
Features	VLAN support, IGMP snooping, Quality of Service (QoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Memory	128 MB
Power Supply	AC 120/230 V (50/60 Hz)
Dimensions (H x W x D)	4.4 cm x 44.5 cm x 24.2 cm
Routing Protocol	Static routing
