Catalyst 2900 Series XL and Catalyst 3500 Series XL Software Configuration Guide
78-6511-05
Chapter 2 Getting Started with CMS
Cluster View and Cluster Builder

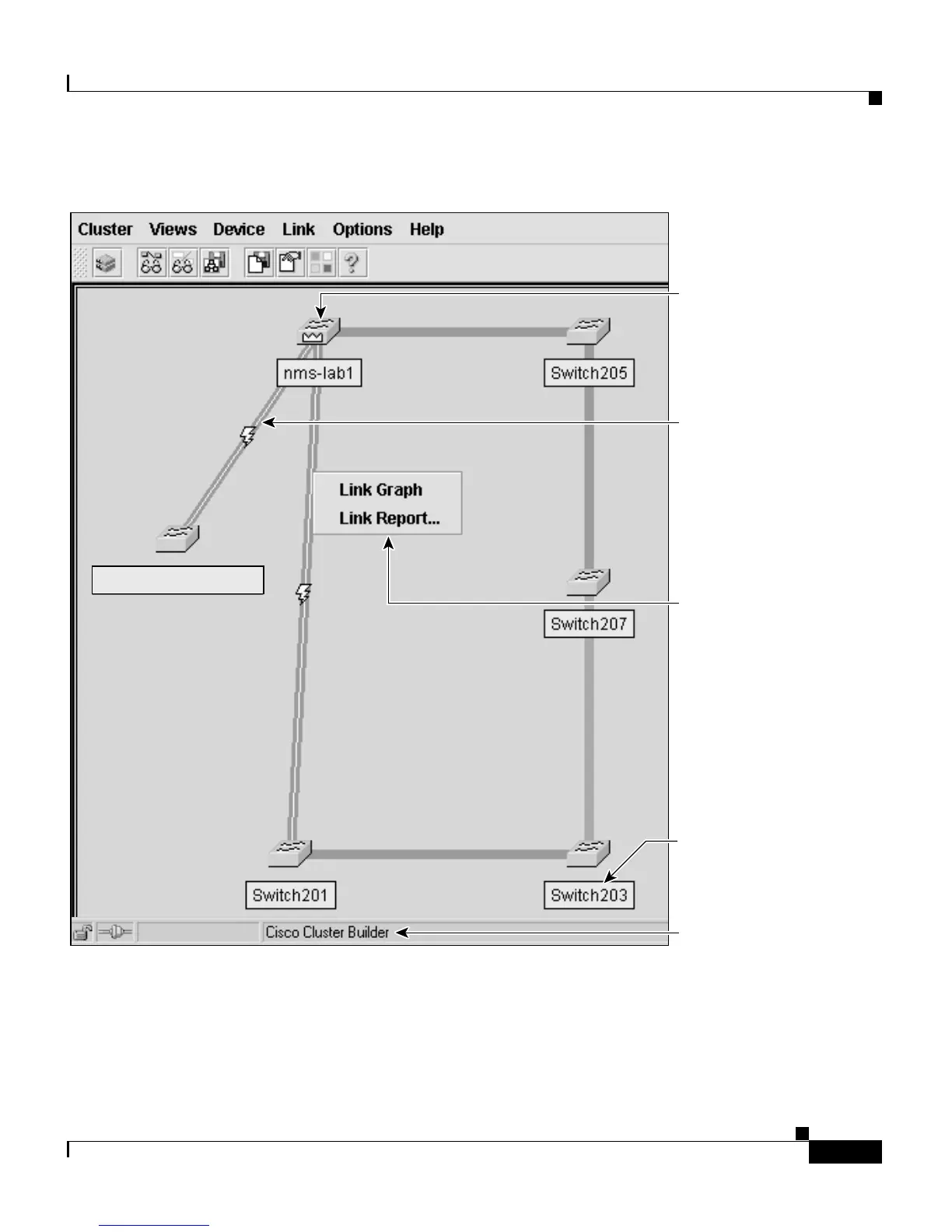

Figure 2-6 Cluster Builder
Right-click a line to
display the link pop-up
menu, and select an
option to display link
information.
Lines indicate the type
of connection between
two devices, such as
lightning bolts are
Gigastack GBIC
connections.
Status bar shows that
Cluster Builder is
displayed.
Device label identifies
the switch.
A switch icon with a
crown indicates the
command switch.
54503
Switch202
