2-17
Catalyst 2900 Series XL and Catalyst 3500 Series XL Software Configuration Guide
78-6511-05
Chapter 2 Getting Started with CMS
Cluster Manager and VSM
Toolbar
The VSM and Cluster Manager toolbar (Figure 2-4) buttons display some switch-
and cluster-level configuration windows. Hover the cursor over a button to
display a pop-up description. From left to right on the toolbar, the following
windows can be displayed:
• Cluster Builder (On VSM, this button is not applicable and is therefore
disabled.)
• Software Upgrade window
• SNMP Management window
• VLAN Membership window
• Spanning Tree Protocol window
• Save Configuration window
• User Settings window
• Legend that describes the icons, labels, and links
• Online help table of contents

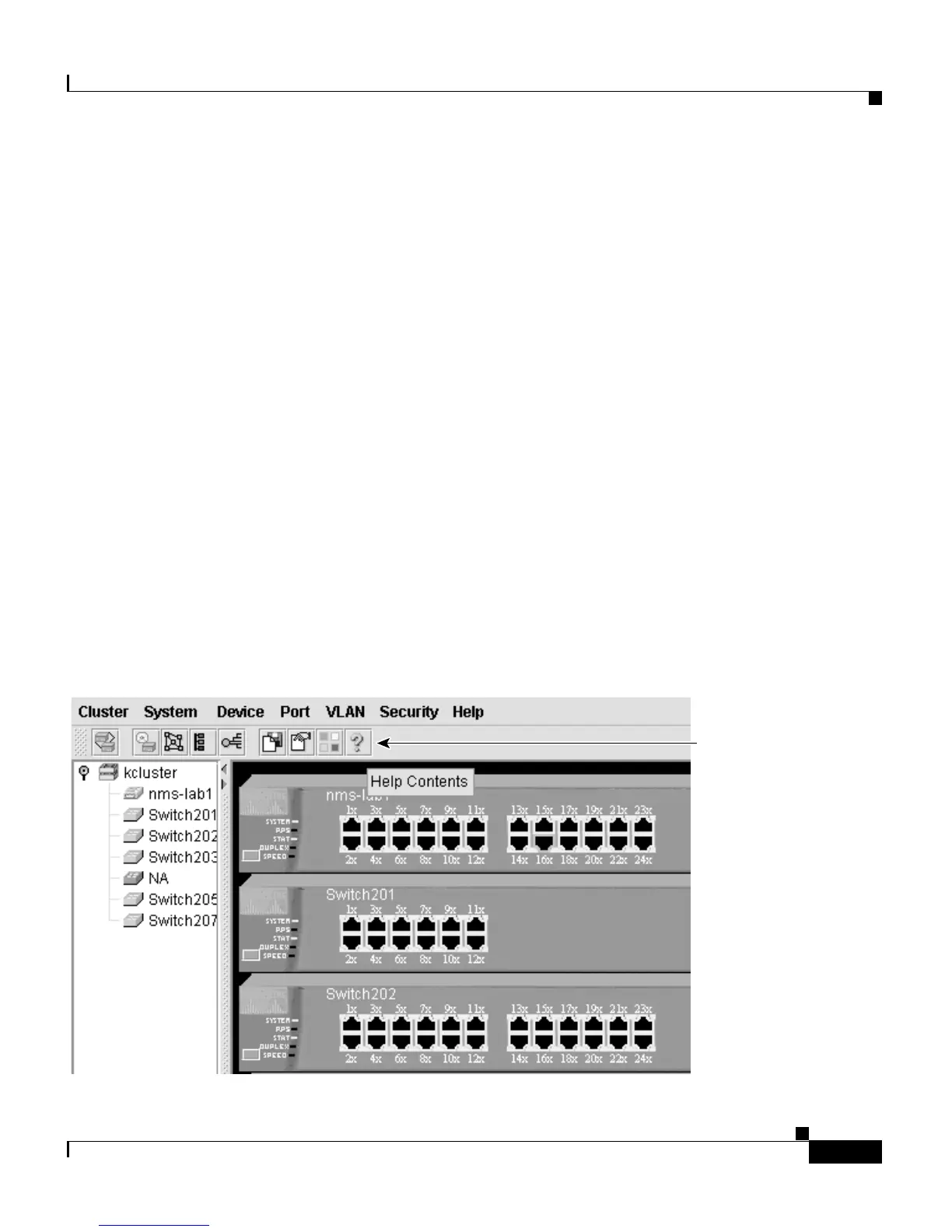

Figure 2-4 Cluster Manager Toolbar
Move the cursor over
the icon to display the
tool tip. For example,
the ? button displays
Help Contents.
54511
10.1.126.45
