Chapter 2 Getting Started with CMS
Cluster View and Cluster Builder
2-28
Catalyst 2900 Series XL and Catalyst 3500 Series XL Software Configuration Guide
78-6511-05

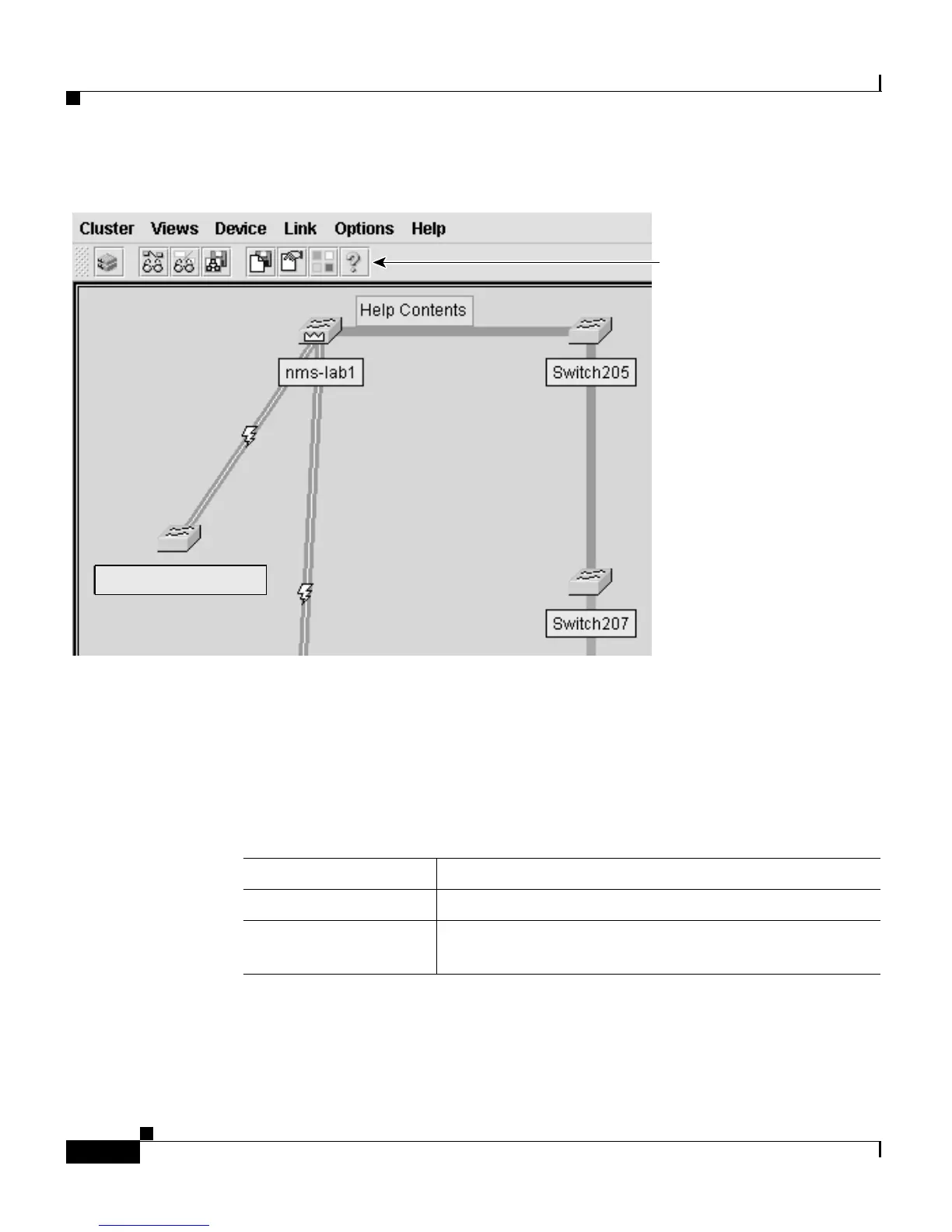

Figure 2-9 Cluster Builder and Cluster View Toolbar
Device Pop-Up Menu
Table 2-16 describes the menu options available when you right-click an icon in
Cluster View.
Move the cursor over
the icon to display the
tool tip. For example,
the ? button displays
Help Contents.
54512
Switch202
Table 2-16 Cluster View Device Menu
Menu Option Action
Device Web Page Displays the web management page for the device.
Disqualification Code Describes why the switch is not a cluster member or
candidate.
