Comtech EF Data CRS-300 - Figure 4-32. CDM-700 IP Connections

To Next Page

To Previous Page

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Cables and Connections Revision 19

4–80

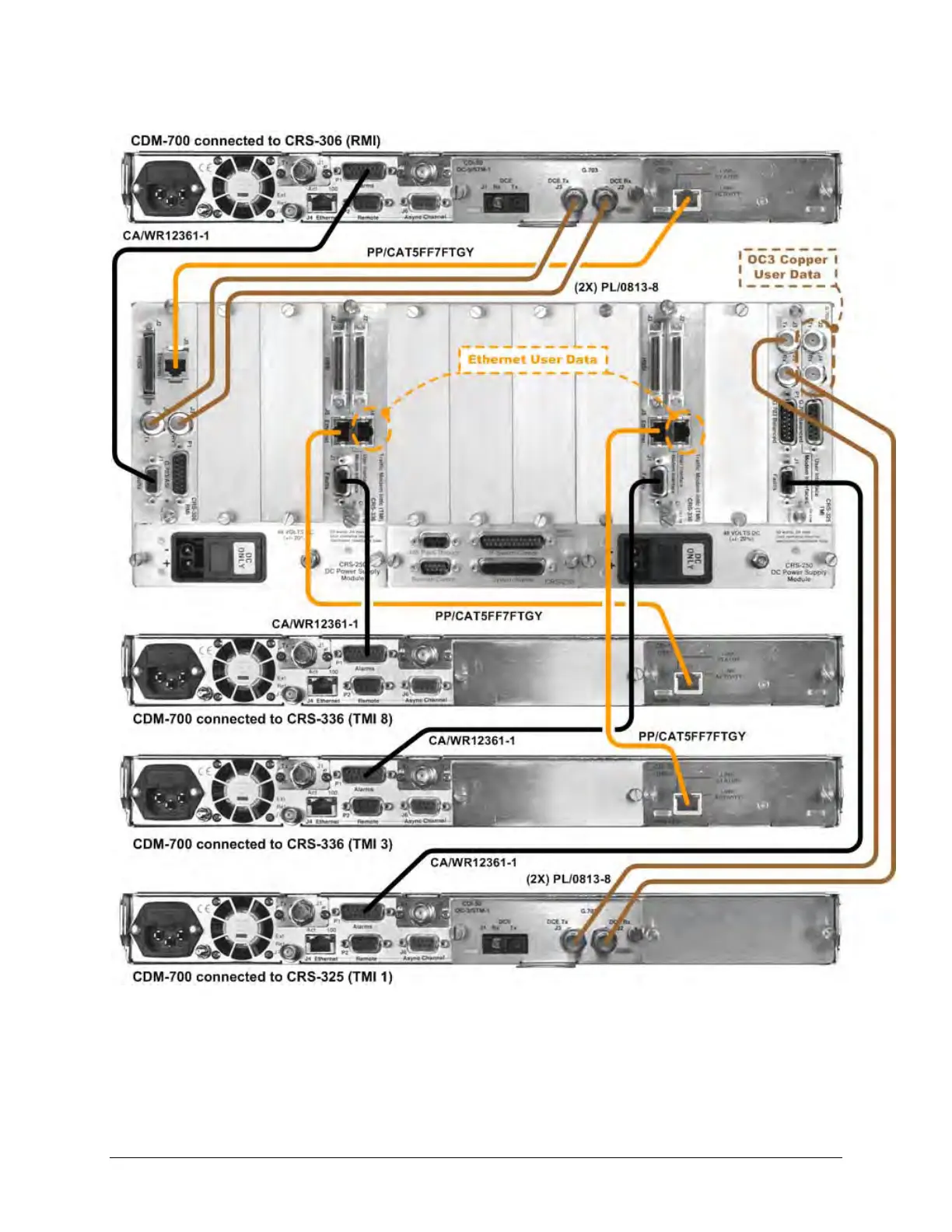

Figure 4-32. CDM-700 IP Connections – Wired-thru Example #1

(Connections shown for RMI and TMIs 1, 3, and 8 only)
