CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-30

B.4.13 Modem-to-Switch (CDM-625/A to CRS-350), Overhead Data Cable (DB-44M,

DB-9M

DB-9F, DB-25M, DB-15F)

You may use this multi-purpose cable to connect the CDM-625/A Modem to the CRS-350 ESC Switch .

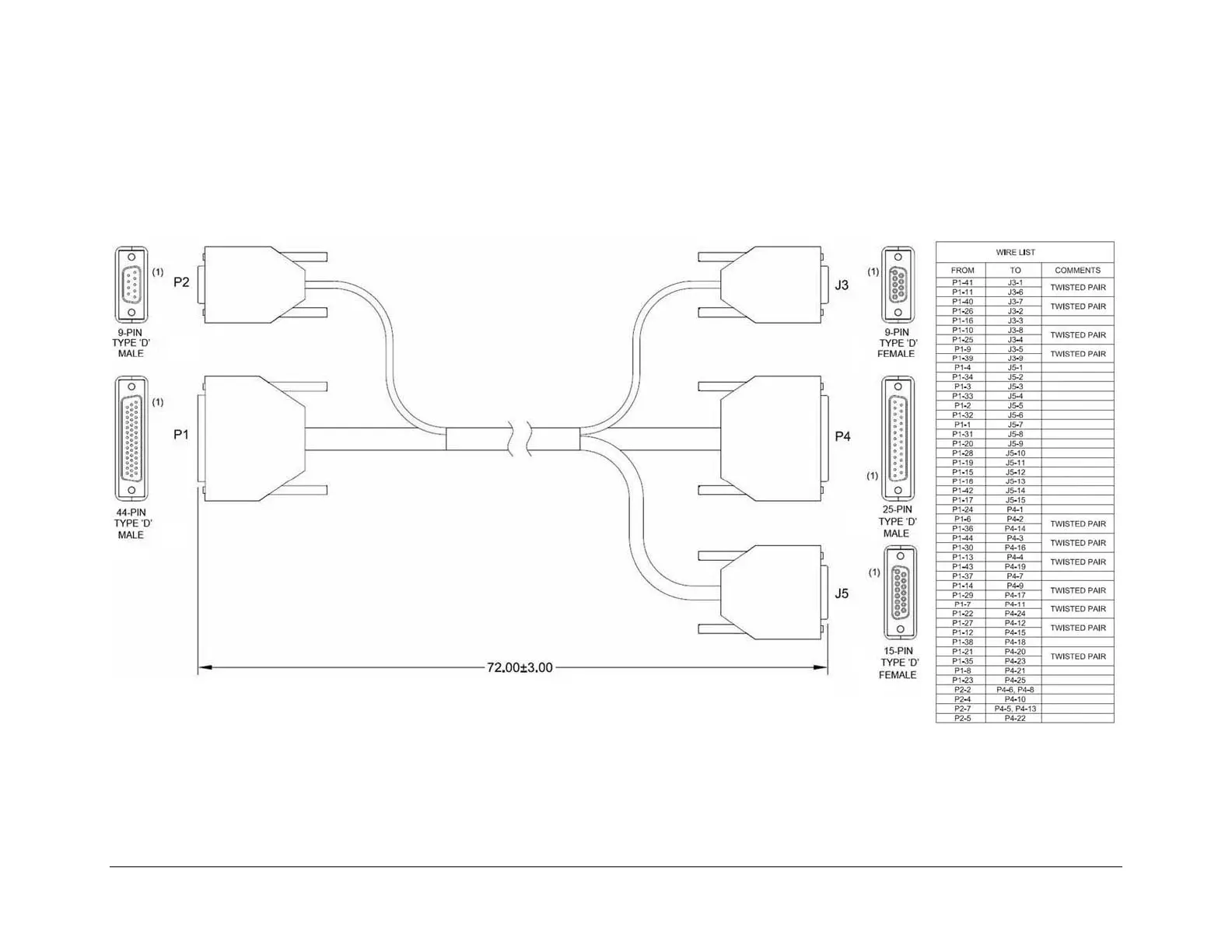

Figure B-25. CDM-625/A to CRS-350 Multi-purpose Cable (CA-0000074)
