Comtech EF Data CRS-300 - Switch-To-Modem, Balanced G.703 Data Cable for CDM-625;A (DB-15 FDB-15 M; Figure B-18. CDM-625;A Bal G.703 Data Cable (CA-0000072)

To Next Page

To Previous Page

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-23

B.4.6 Switch-to-Modem, Balanced G.703 Data Cable for CDM-625/A (DB-15FDB-15M)

You may use this cable for Balanced G.703 data connection between the Switch and the CDM-625/A Modem.

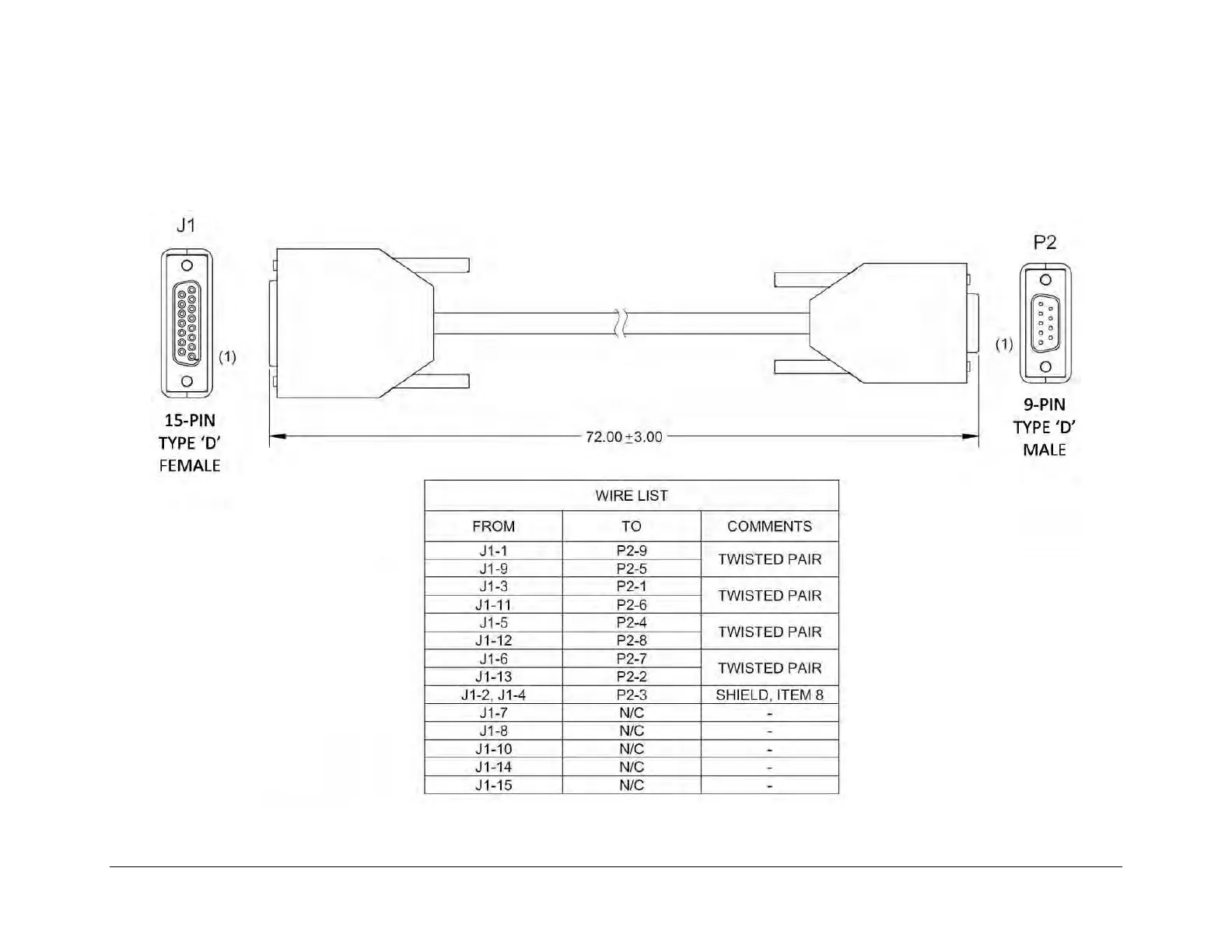

Figure B-18. CDM-625/A Bal G.703 Data Cable (CA-0000072)
