CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Modem, RMI/TMI, and Switch Configuration Revision 19

5–9

In this example, the EIA-485 offset address does not affect Modem #1, so the offset can be

0001 to 0099 without affecting other Modems’ EIA-485 addresses.

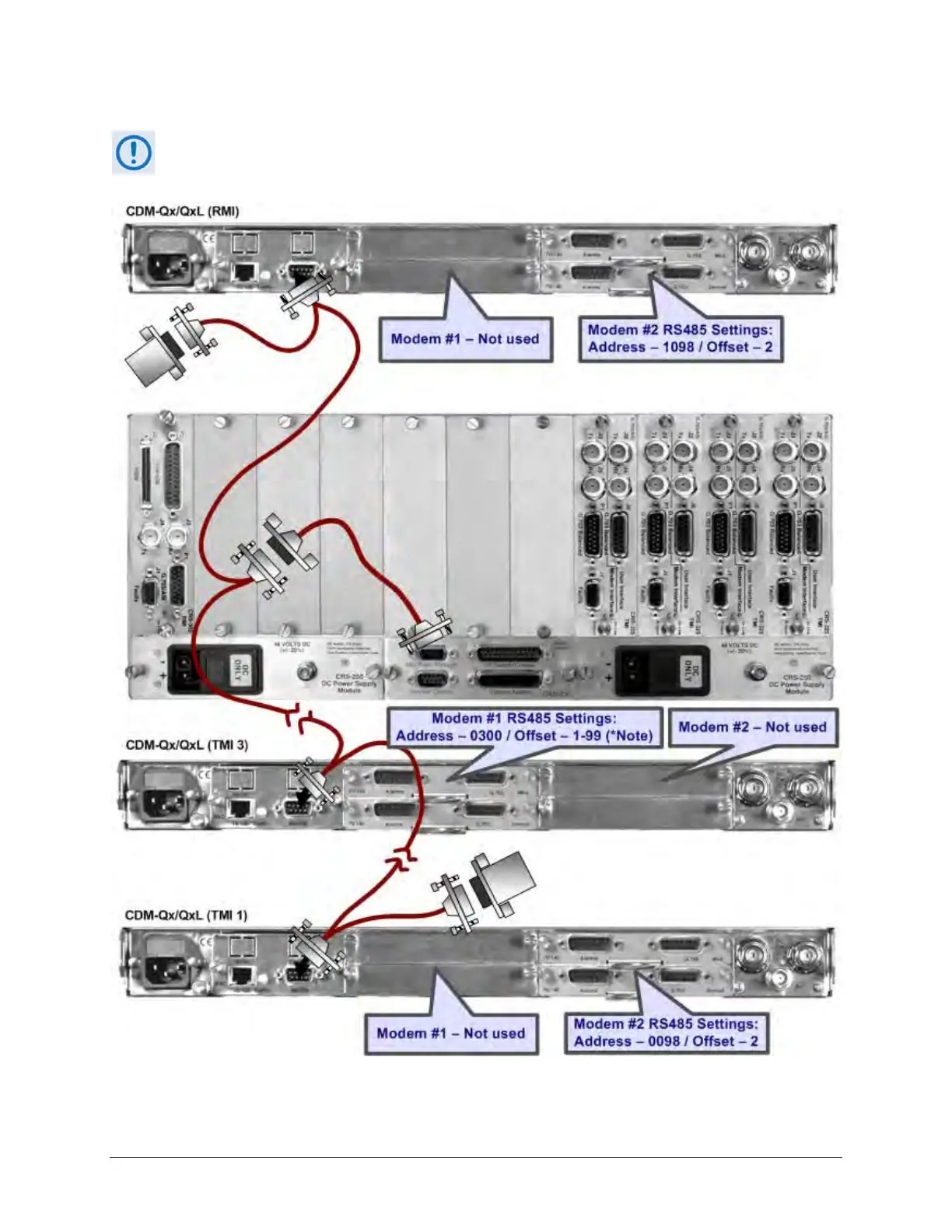

Figure 5-2. CDM-Qx/QxL / CRS-300 EIA-485 Scheme
