CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-27

B.4.10 Modem-to-User, Quad E1 Data Cable for CDM-625/A (DB-9MDB-9F)

You may use this Type ‘D’ 9-pin cable for the Quad E1 data connections between the Switch CRS-365D TMI and the CDM-625/A Modem.

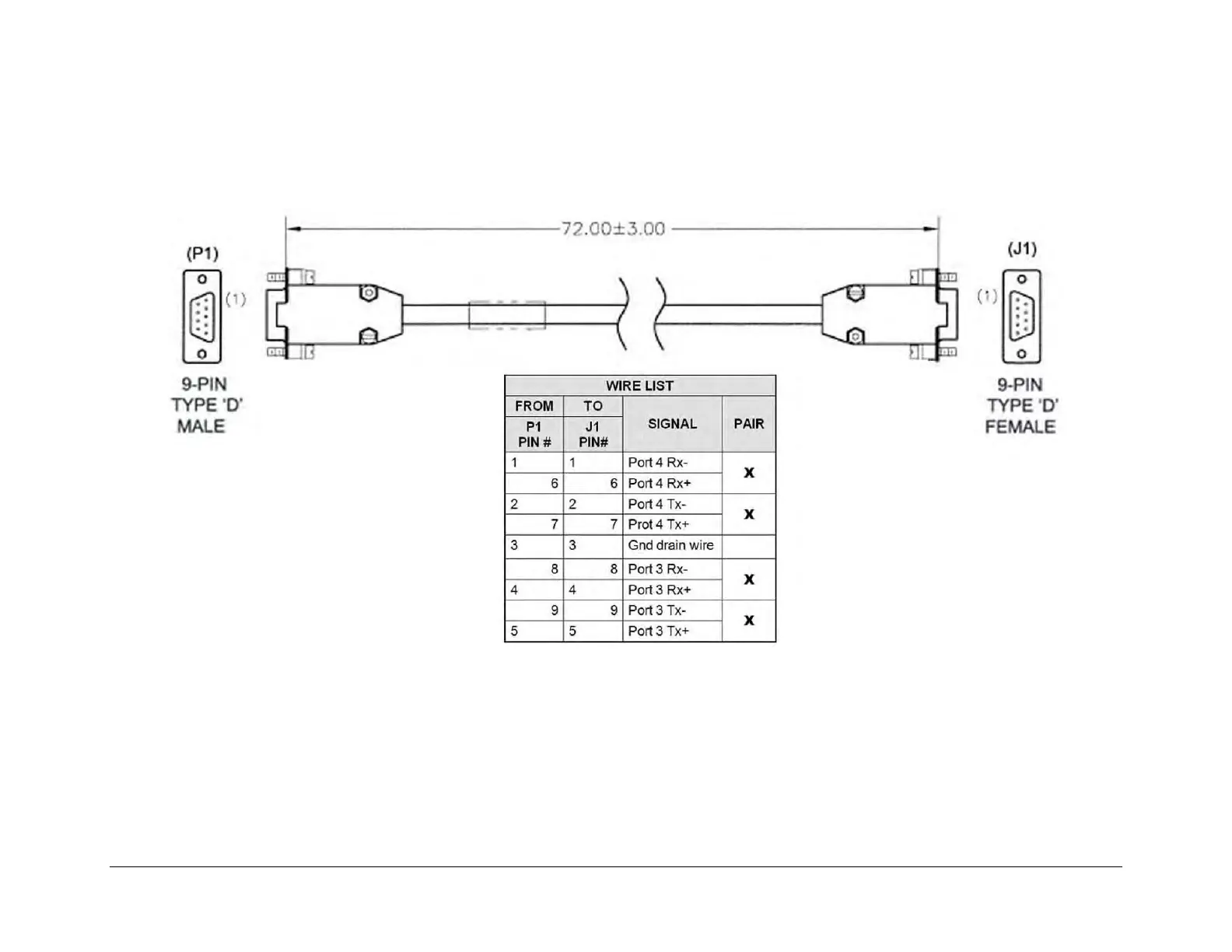

Figure B-22. CDM-625/A Quad E1 Data Cable (CA-0000136)
