Comtech EF Data CRS-300 - CRS-280;280 L Functional Schematic; Figure 1-2. CRS-280;280 L if Switch Functional Schematic

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM
Introduction Revision 19
1–5
1.1.2 CRS-280/280L Functional Schematic

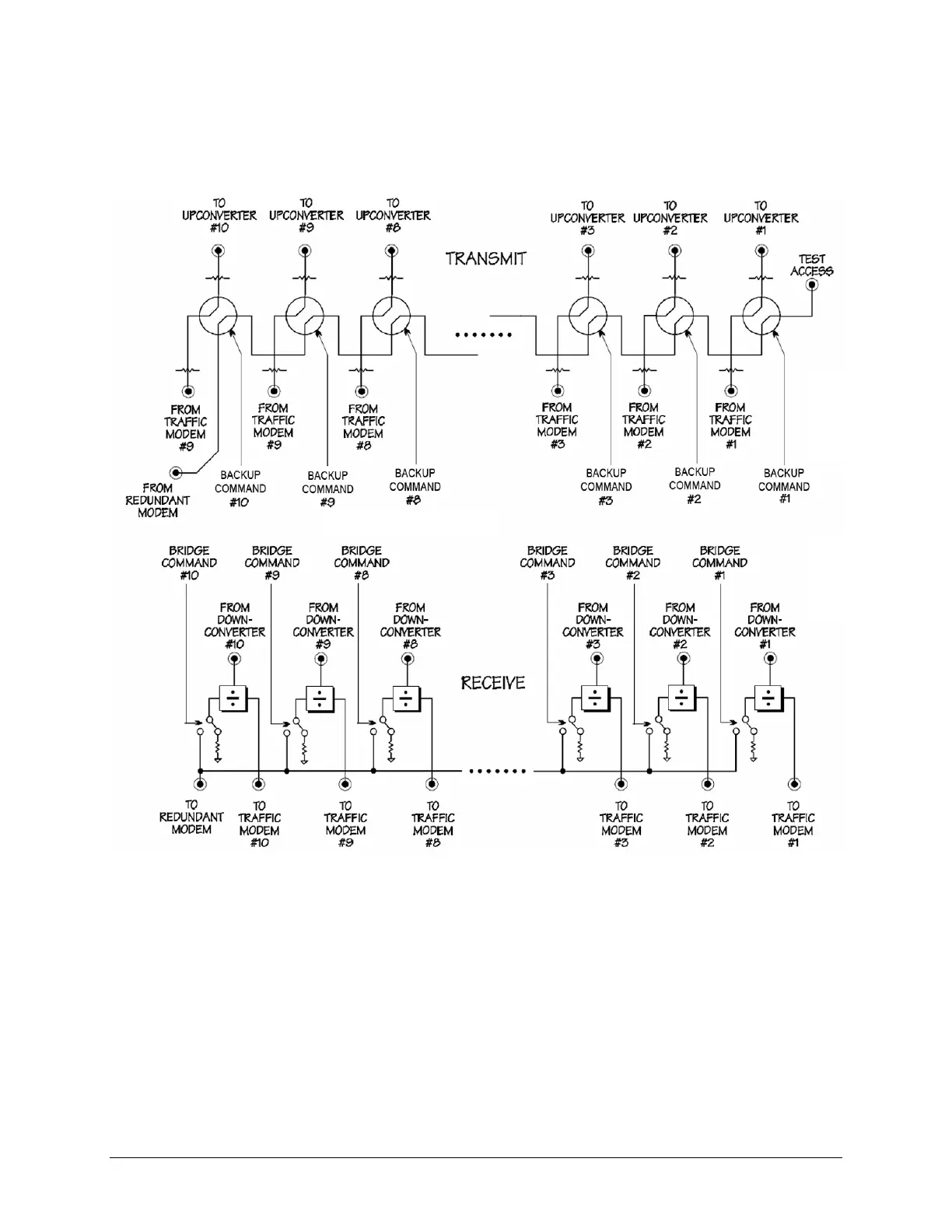

Figure 1-2 provides an operational schematic for the CRS-280/280L IF Switch.
Figure 1-2. CRS-280/280L IF Switch Functional Schematic
