Comtech EF Data CRS-300 - Figure 4-6. if Cabling Example

To Next Page

To Previous Page

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Cables and Connections Revision 19

4–13

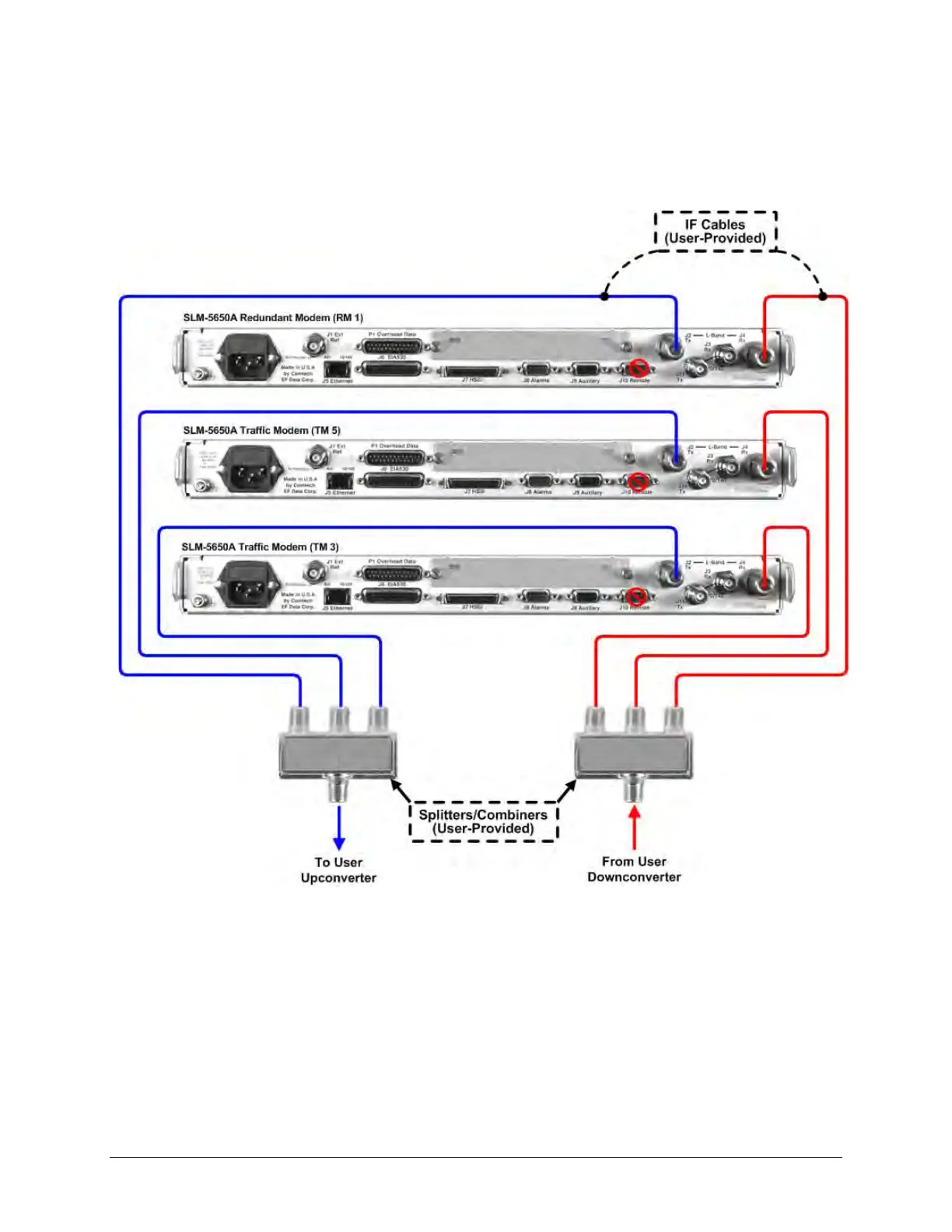

Figure 4-6. IF Cabling Example – Single Transponder Configuration

(Without CRS-280/280L – Connections shown for 1:N <1> RM with TMs 3 and 8 only)
