B.3.5 EIA-485 Cable Termination for CDM-Qx/QxL Multi-Drop Cables (DB-9M)

You may use this EIA-485 Cable Termination to terminate the ends of the standard CA/WR11417-1 EIA-485 Multi-Drop Shielded Cable

(Figure B-7) or the optional CA/RB11423-1 EIA-485 Multi-Drop Ribbon Cable (Figure B-10).

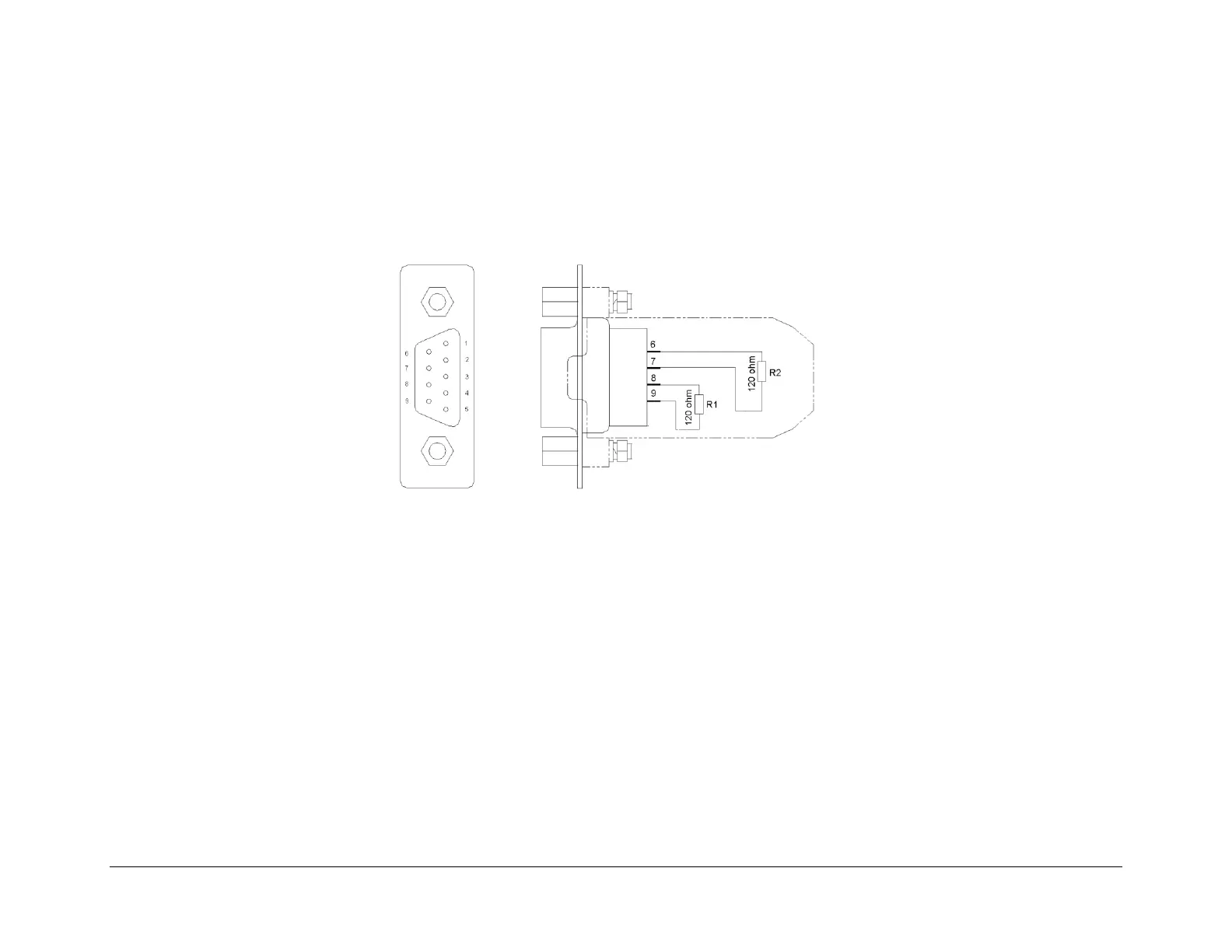

Figure B-8. CDM-Qx/QxL EIA-485 Cable Termination (CA/WR11418-1)
