Comtech EF Data CRS-300 - System Alarms Connector, DB-25 F; Table 3-3. System Alarms Connector

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM
Switch Connectors and Pinouts Revision 19
3–6

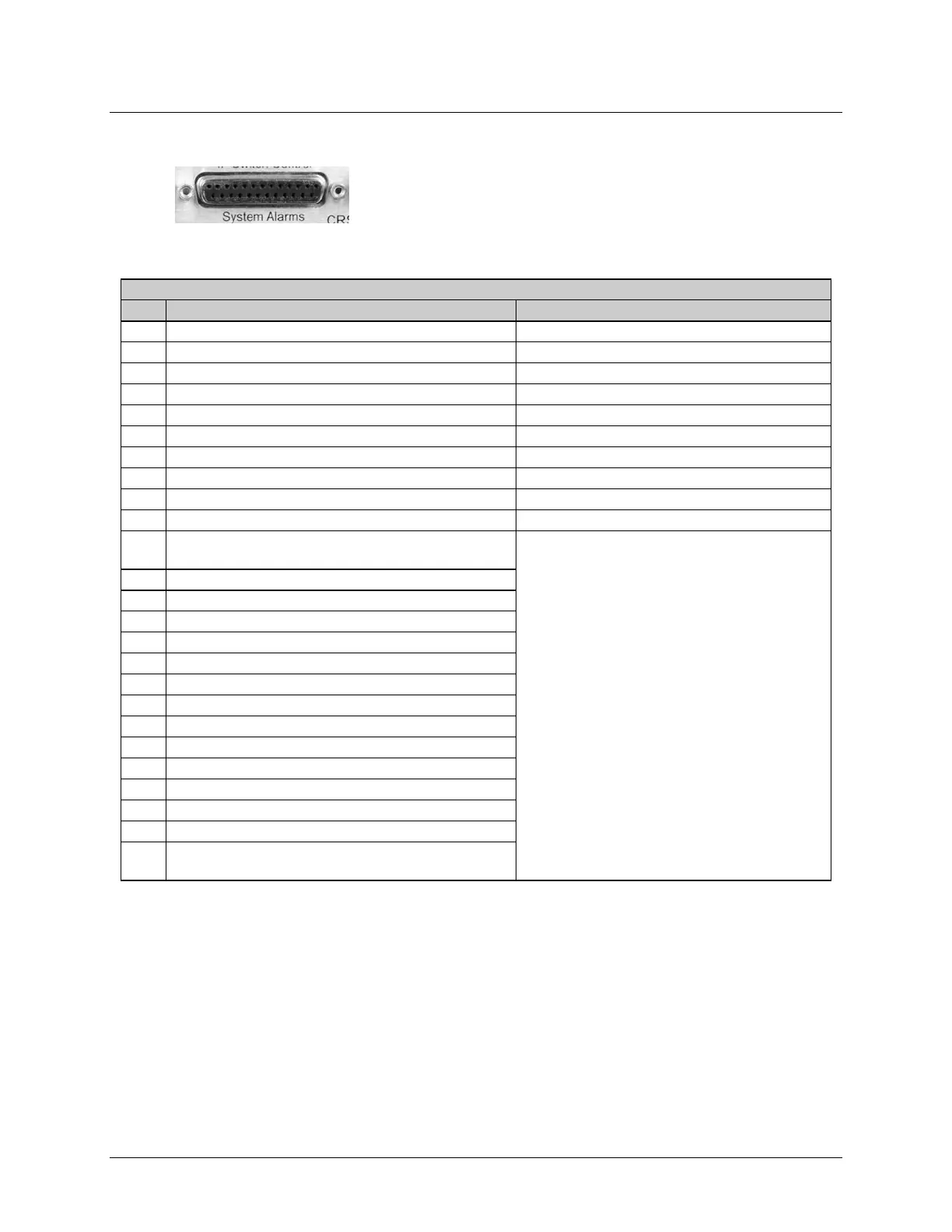

3.2.1.4 System Alarms Connector, DB-25F
See Table 3-3 for the pinouts for the DB-25F “System Alarms”
connector on the CRS-230.
Table 3-3. System Alarms Connector
Signal Function by Mode of Operation
Pin
“Show Fault” when Switch loses power (Default)
“Show No-Fault” when Switch loses power
13
Modem Summary DFM Fault – Normally Open
Modem Summary DFM Fault – Normally Closed
25
Modem Summary DFM Fault – Normally Closed
Modem Summary DFM Fault – Normally Open
12
Modem Summary Rx Traffic Fault – Normally Open
Modem Summary Rx Traffic Fault – Normally Closed
24
Modem Summary Rx Traffic Fault – Normally Closed
Modem Summary Rx Traffic Fault – Normally Open
11
Modem Summary Tx Traffic Fault – Normally Open
Modem Summary Tx Traffic Fault – Normally Closed
23 Modem Summary Tx Traffic Fault – Normally Closed Modem Summary Tx Traffic Fault – Normally Open
10
Modem Summary Unit Fault – Normally Open
Modem Summary Unit Fault – Normally Closed
22 Modem Summary Unit Fault –Normally Closed Modem Summary Unit Fault –Normally Open
9
Switch Unit Fault – Normally Open
Switch Unit Fault – Normally Closed
21 Switch Unit Fault – Normally Closed Switch Unit Fault – Normally Open
8
Form ‘C’ Fault Relay – Common
Common for pins 9-13 and 21-24
Unchanged
20
Audio Indicator (Ground = Auto On / Float = Audio Off)
7
Ground
19
No Connection
6
Traffic Modem #1 Online Status – Normally Open (Note 2)
18
Traffic Modem #2 Online Status – Normally Open (Note 2)
5
Traffic Modem #3 Online Status – Normally Open (Note 2)
17 Traffic Modem #4 Online Status – Normally Open (Note 2)
4
Traffic Modem #5 Online Status – Normally Open (Note 2)
16 Traffic Modem #6 Online Status – Normally Open (Note 2)
3
Traffic Modem #7 Online Status – Normally Open (Note 2)
15 Traffic Modem #8 Online Status – Normally Open (Note 2)
2
Traffic Modem #9 Online Status – Normally Open (Note 2)
14 Traffic Modem #10 Online Status – Normally Open (Note 2)
1
Traffic Modem Online Status – Common
Common for pins 2-6 and 14-18
Notes:
1) “Normally open” refers to the NON-FAILED state.
2) Traffic Modem Online Status (Open = Online, Closed = Backup)
