CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-35

B.4.18 Switch-to-Modem, G.703 Data Cable for CDM-700 (DB-9F8X BNC 75Ω Male)

You may use this cable to connect the Switch CRS-345 TMI Type ‘D’ 9-pin female connector to the Traffic CDM-700 G.703 Interface

module BNC ports. Certain modem configurations require a modified version of this cable that use only four of the eight BNC

connectors. See

Chapter 4.10 CDM-700 Modem Connections for examples of this alternate use.

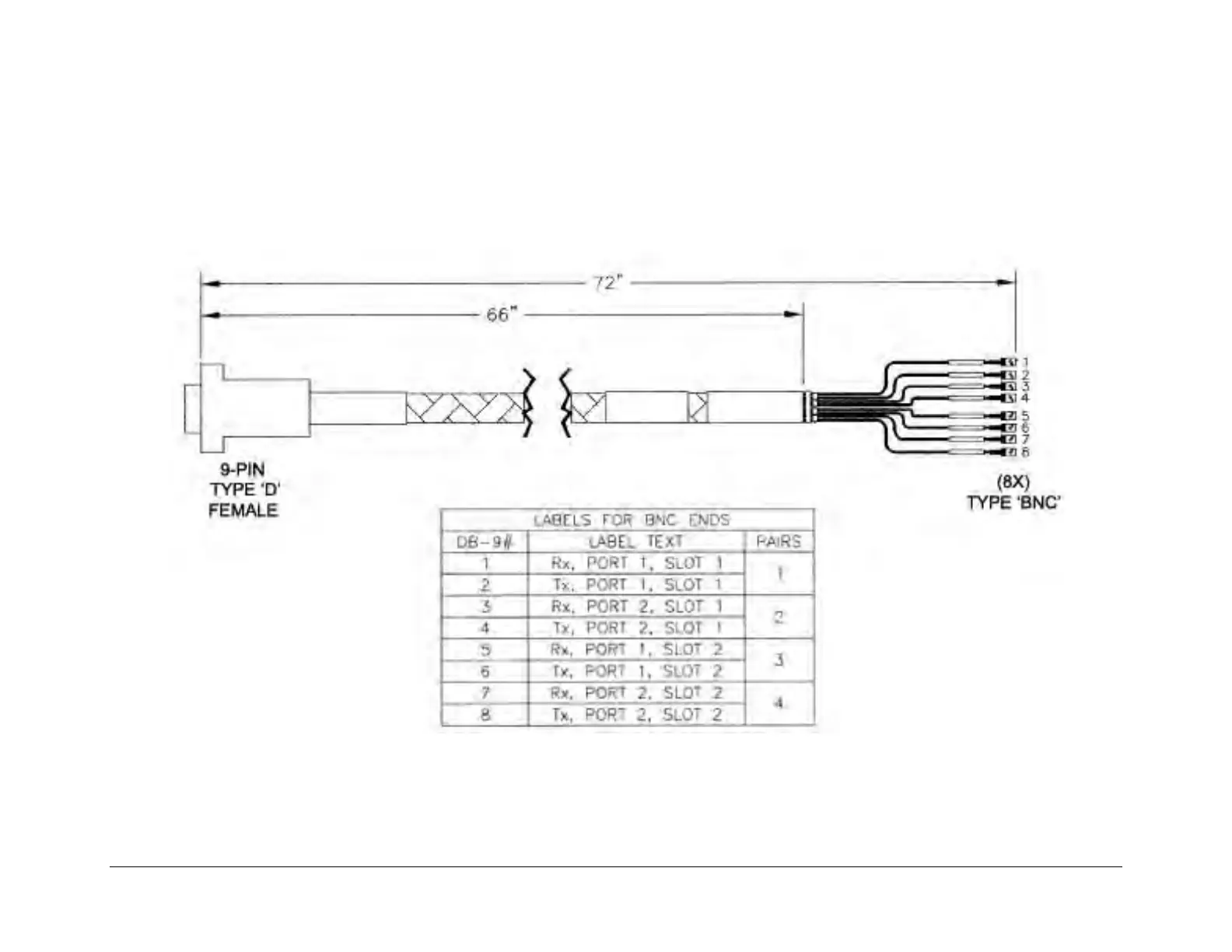

Figure B-30. CDM-700 G.703 Data Cable (CA/RF12278-1)
