1.3.3.3.2.2 TMI Cards

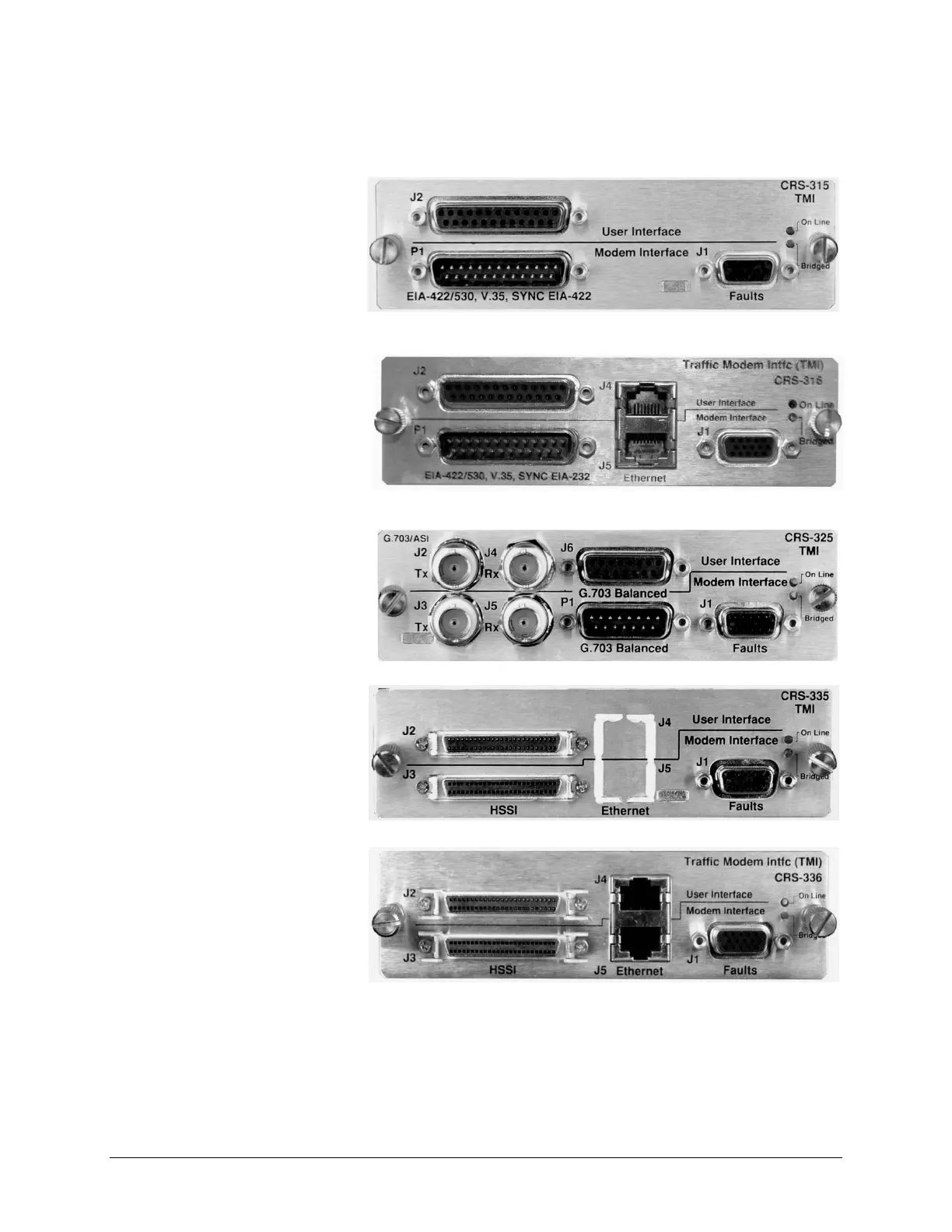

Figure 1-17. CRS-315 TMI
(PL/11493-1)
OBSOLETE
DB-25 Female
DB-25 Male HD-15 Female
Figure 1-18. CRS-316 TMI
RS422 or GigE
(PL/12498-1)
ALSO USED WITH
CDM-625/A
DB-25 Female RJ-45
DB-25 Male RJ-45 HD-15 Female
Figure 1-19. CRS-325 TMI
G.703 or ASI (PL/11492-1)
ALSO USED WITH
CDM-625/A
(2X) BNC Male DB-15 Female
(2X) BNC Male DB-15 Male HD-15 Female
Figure 1-20. CRS-315 TMI
(PL/11493-1)
OBSOLETE
(2X) HD-50 Female HD-15 Female
Figure 1-21. CRS-336 TMI
HSSI or GigE (PL/12499-1)
ALSO USED WITH
CDM-625/A
(2X) HD-50 Female (2X) RJ-45 HD-15 Female
