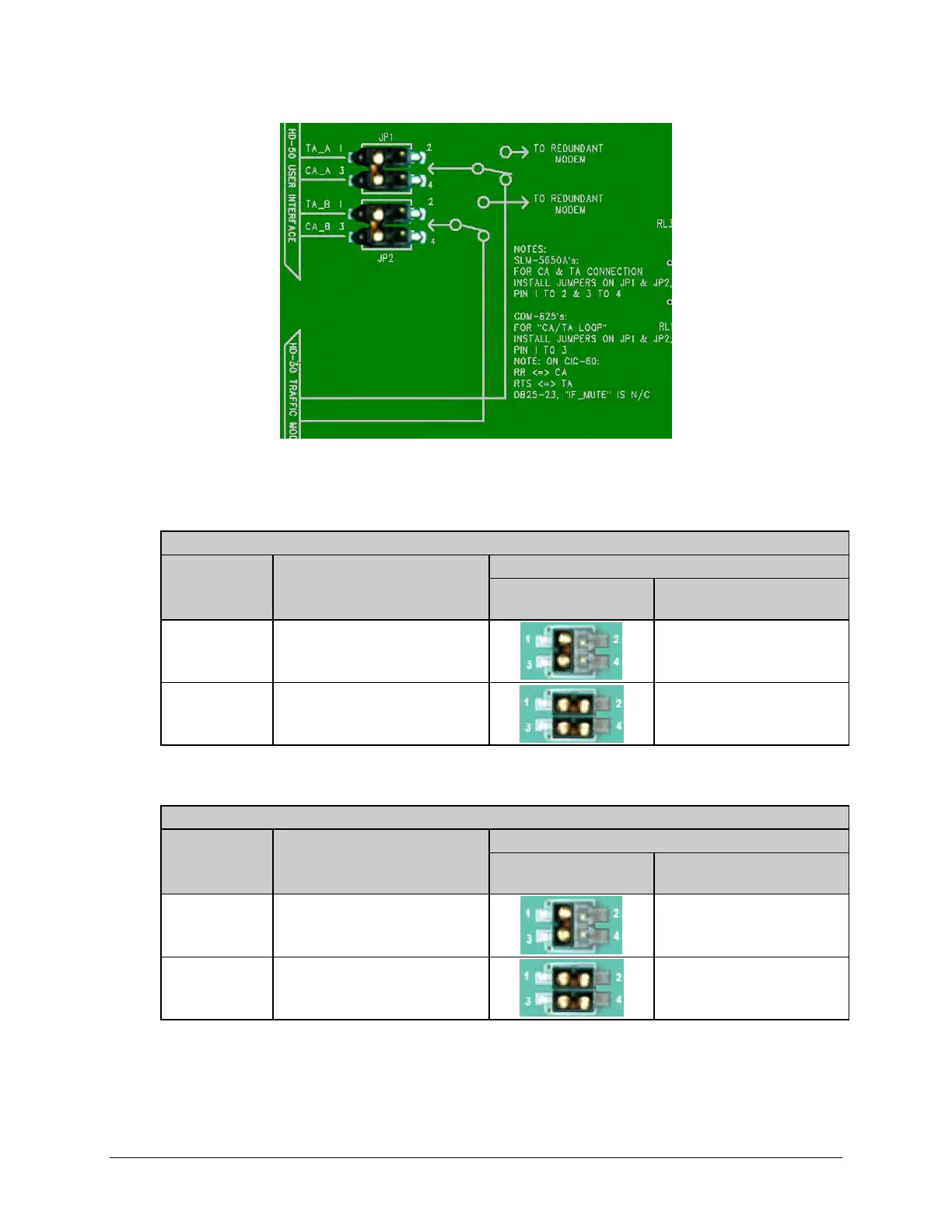

Figure 5-9. CRS-336 “JP1” and “JP2” Jumper Detail (As Shipped)
Table 5-6. CRS-336 Jumper “JP1” Settings
User Interface Jumper “JP1”
Modem Control Signal Setting
Jumper Settings
Detail
Settings
(Pins Jumped)
CDM-625/A
TA_A to CA_A
Loop Connected
at User HSSI Connector
‘1’ to ‘3’
(Note: TMI as shipped)
SLM-5650A
TA_A & CA_A
Routed to online modem
‘1’ to ‘2’
‘3’ to ‘4’
Table 5-7. CRS-336 Jumper “JP2” Settings
User Interface Jumper “JP2”
Modem Control Signal Setting
Jumper Settings
Detail
Settings
(Pins Jumped)
CDM-625/A
TA_B to CA_B
Loop Connected
at User HSSI Connector
‘1’ to ‘3’
(Note: TMI as shipped)
SLM-5650A
TA_B & CA_B
Routed to online modem
‘1’ to ‘2’
‘3’ to ‘4’
