B.3.7 Modem-to-Modem, Optional EIA-485 Multi-Drop Ribbon Cable for CDM-Qx/QxL (15X

DB-9F)

You may use this optional Type ‘D’ 9-pin female Multi-Drop ribbon cable to daisy-chain CDM-Qx/QxL Modems for communications when

Electromagnetic Compatibility (EMC) is not a concern.

You must use the standard CA/WR11417-1 EIA-485 Multi-Drop Shielded Cable (Figure B-7) when Electromagnetic

Compatibility (EMC) is a concern.

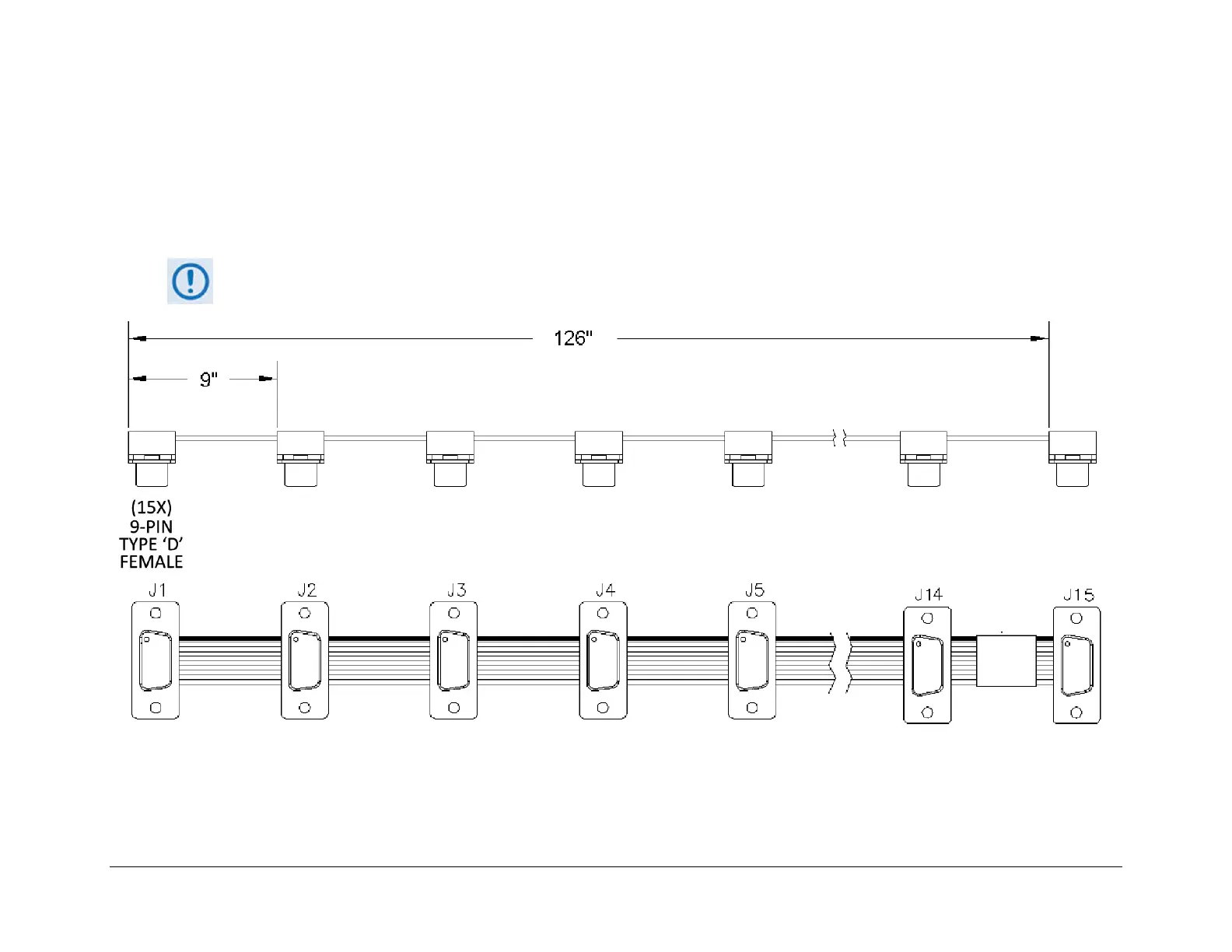

Figure B-10. CDM-Qx/QxL Optional EIA-485 Multi-Drop Ribbon Cable (CA/RB11423-1)
