3.3.2 Chassis Power Interfaces
(TOP) CRS-240 (AC) Power Supply Module
(BOTTOM) CRS-250 DC Power Supply Module

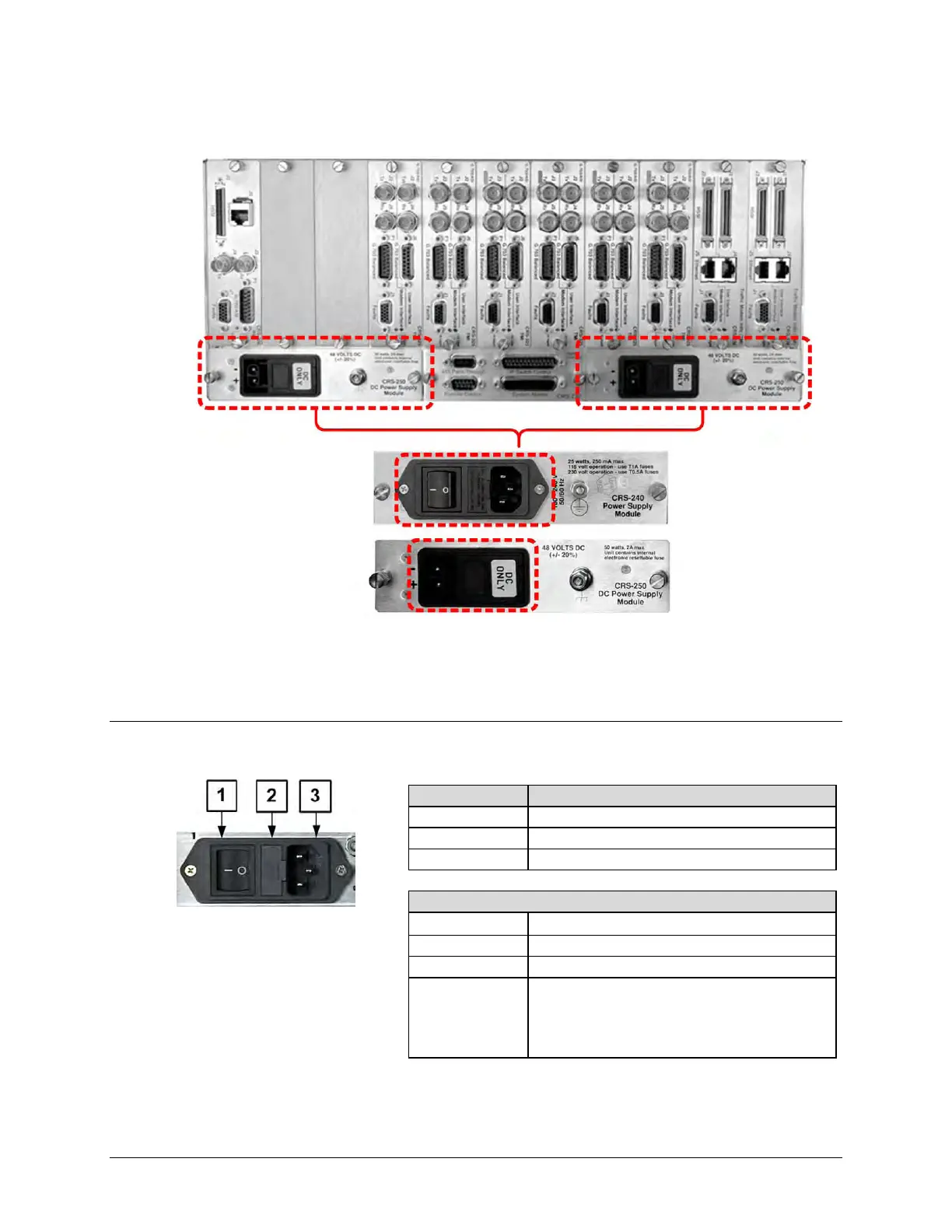

Figure 3-4. CRS-300 Chassis Power Supply Interfaces
3.3.2.1 Alternating Current (AC) Power Interface
Feature
Description
1
On / Off Switch
2
Press-fit Fuse Holder
3
IEC-60320 Type C14 Three-prong Connector
AC Power Specifications
Input Power
25W, 250 mA maximum
Input Voltage
90-264 volts AC (50/60 Hz)
Connection Type
IEC-60320 Type C13/C14
Fuse Protection
Line and neutral fusing
(2X) 5mm x 20mm Slow-blow type fuses:
• 1.0A fuses for 115 volt AC operation
•
0.5A fuses for 230 volt AC operation
Figure 3-5. Chassis AC Power Interface (CRS-240 Power Supply Module)
