Comtech EF Data CRS-300 - Figure B-11. CDM-Qx;Qxl with Cnc Y Control Cable (CA;WR12069-1); Switch-To-Modem, Y Control Cable for CDM-Qx;Qxl with Cnc (HD-15 M2 X DB-15 F)

To Next Page

To Previous Page

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-13

B.3.8 Switch-to-Modem, ‘Y’ Control Cable for CDM-Qx/QxL with CnC



(HD-15M2X DB-15F)

This cable is one of the two types of control cables required for CDM-Qx/QxL Modems. This cable adapts the HD-15 “Fault” connector on

the Switch TMI/RMI to the DB-15 “Alarms” connectors on the modem mod and demod modules. These interfaces are capable of CnC



support.

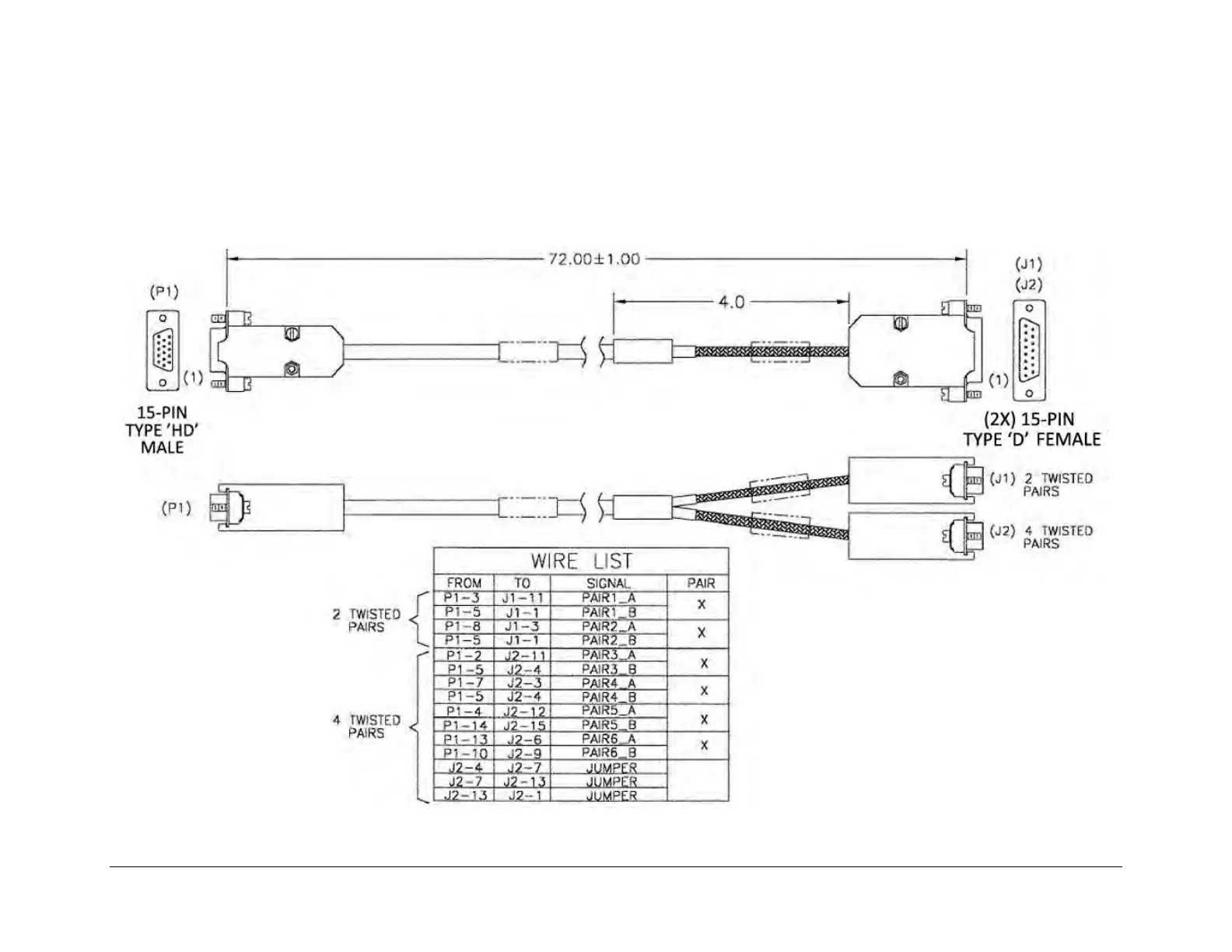

Figure B-11. CDM-Qx/QxL with CnC ‘Y’ Control Cable (CA/WR12069-1)
