B.4.3 Switch-to-Modem, ASI / Balanced G.703 / IF Cable (BNC 75Ω Male)

You may use this 75Ω BNC cable for ASI and Balanced G.703 data connections between the Switch and Modem. You may also use this

cable to connect the CRS-280 (70/140 MHz) IF Switch to the Modem.

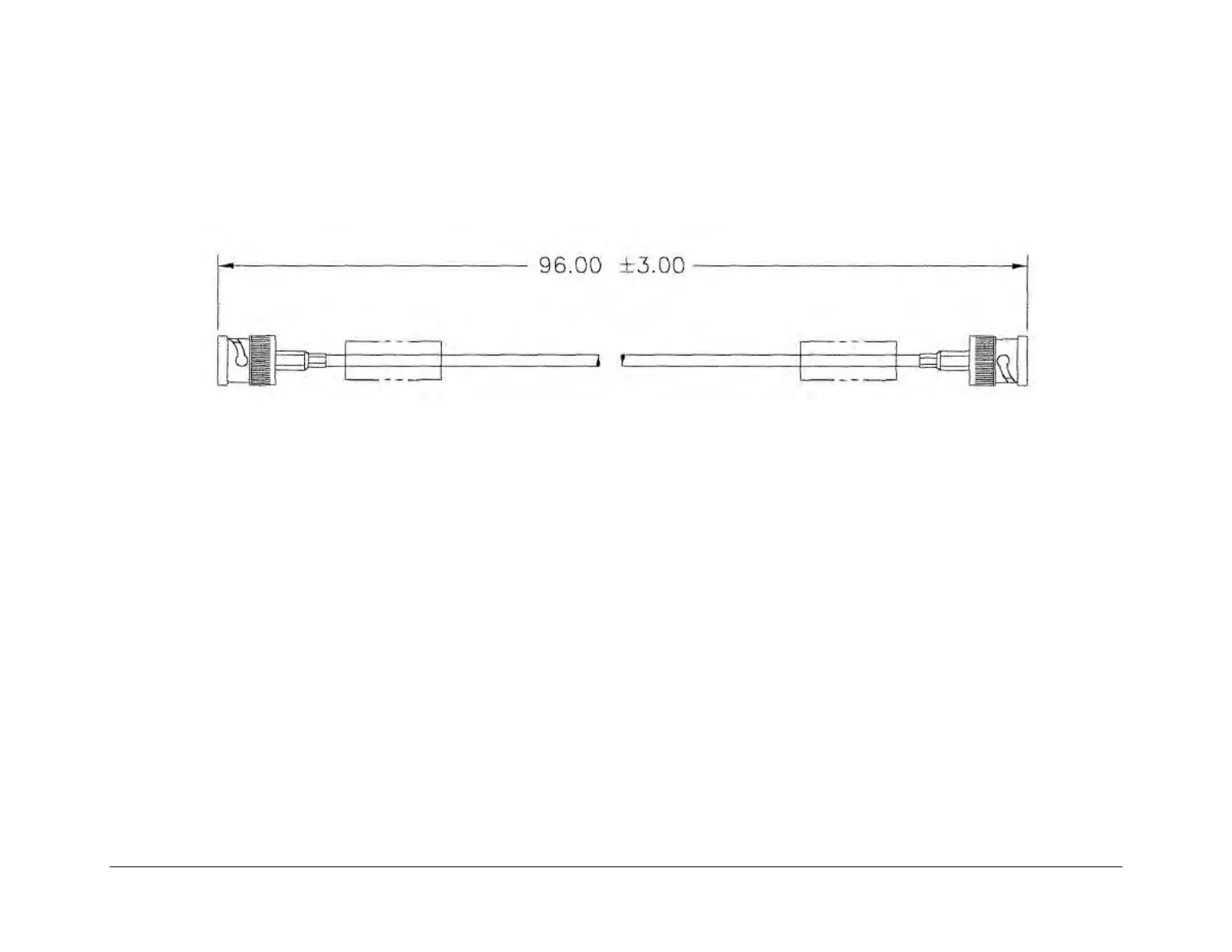

Figure B-15. ASI / Balanced G.703 / IF Cable, BNC 75Ω (PL/0813-8)
