1.3.3.3.1.1 RMI Card

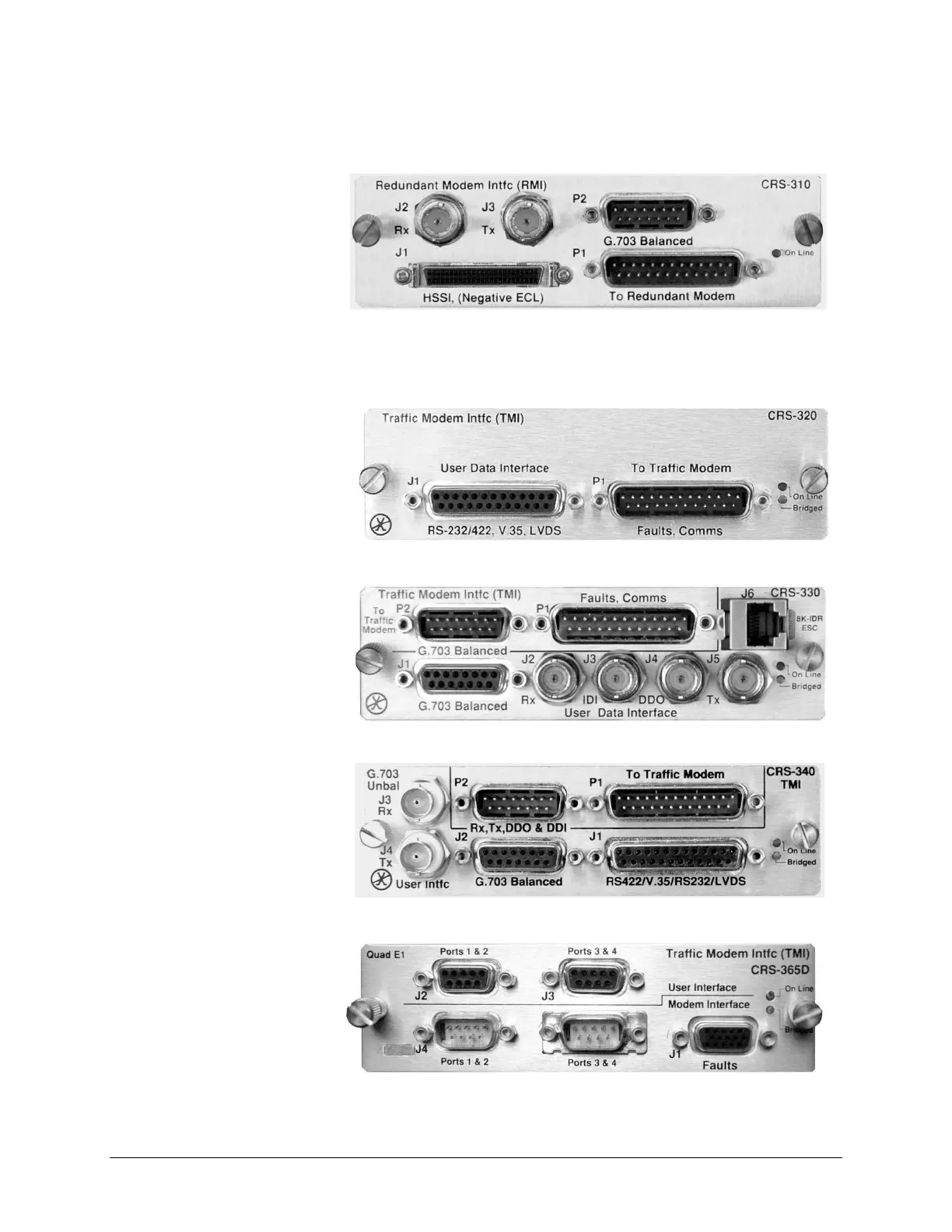

Figure 1-8. CRS-310 RMI
(PL/9579-1)
(2X) BNC - Male DB-15 Male
HD-50 Female DB-25 Male
1.3.3.3.1.2 TMI Cards
Figure 1-9. CRS-320 TMI
EIA-232/-422 (PL/9581-1)
OBSOLETE
REPLACED BY
CRS-340
DB-25 Female DB-25 Male
Figure 1-10. CRS-330
TMI G.703 (PL/9033-1)
DB-15 Male DB-25 Male RJ-45
DB-15 Female (4X) BNC – Female
Figure 1-11. CRS-340
TMI EIA-232/-422 or
LVDS or G.703
(PL/9387-1)
DB-15 Male B-25 Male RJ-45
DB-15 Female (4X) BNC – Female
Figure 1-12. CRS-365D
TMI E1 (1-4 ports)
(PL/12985-2)
FOR USE WITH
CDM-625/A ONLY
DB-9 Female DB-9 Female
DB-9 Male DB-9 Male HD-15 Female
