CRS-300 1:10 Redundancy Switch MN/CRS300.IOM
Switch Connectors and Pinouts Revision 19
3–14

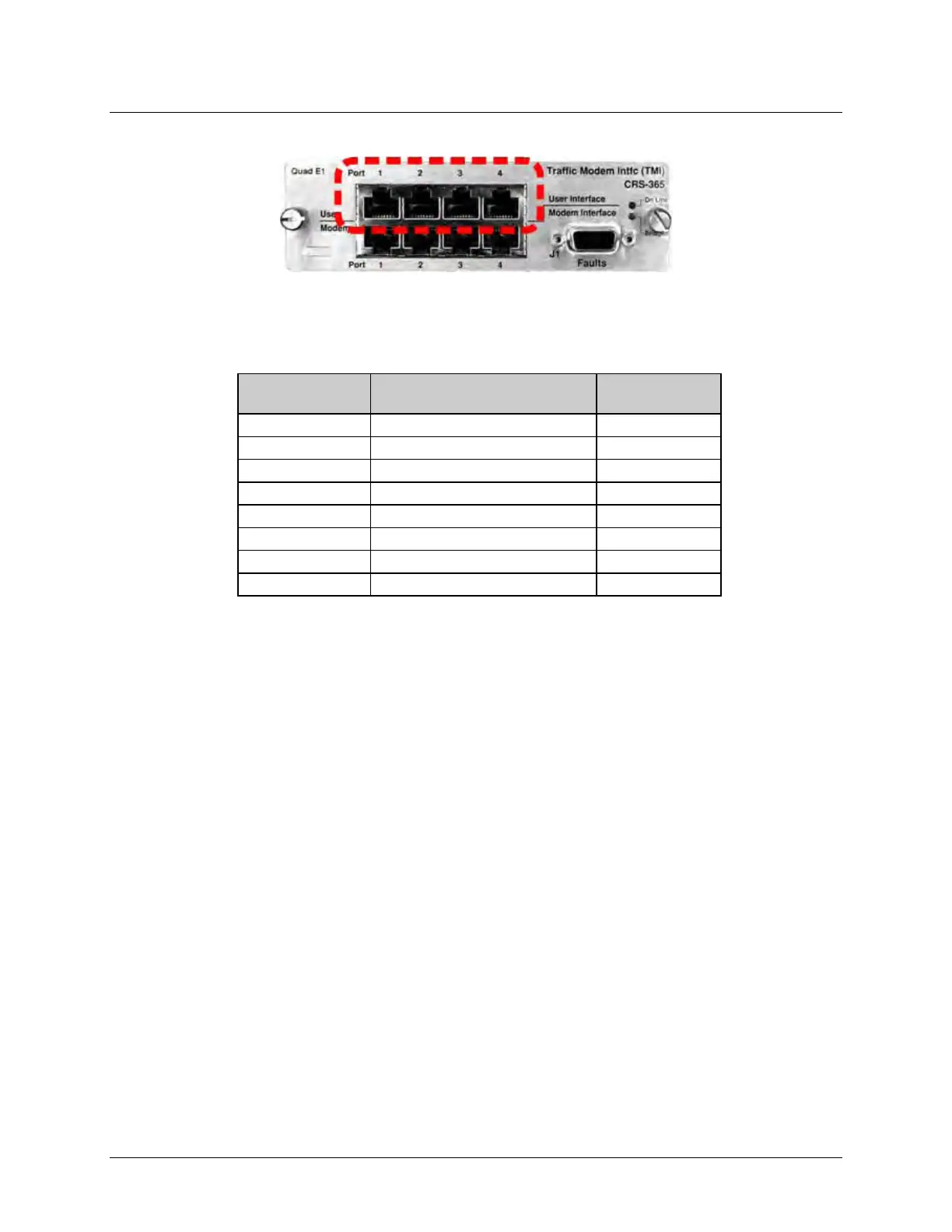

3.2.2.10 Quad E1 Connectors, RJ-48F (CRS-365)
See Table 3-13 for the RJ-48F connector pinouts for the Quad E1 User Data Interface – Ports 1
through 4 on the CRS-365 TMI.
Table 3-13. Quad E1 Connector Pinouts (Typical Ports 1 through 4)
Pin
Signal Function
(where Port # = Port 1, 2, 3 or 4)
Direction
1
Port # Tx(+)
In
2 Port # Tx– In
3
Ground
--
4
Port # Rx(+)
Out
5
Port # Rx–
Out
6
Ground
--
7 NC --
8
NC
--
