CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-37

B.4.20 Switch-to-Modem, Audio Data Cable for CDM-600/L (DB-9MDB-9F)

You may use this Type ‘D’ 9-pin cable for Audio data connections between the CRS-350 ESC Switch and CDM-600/L Modems.

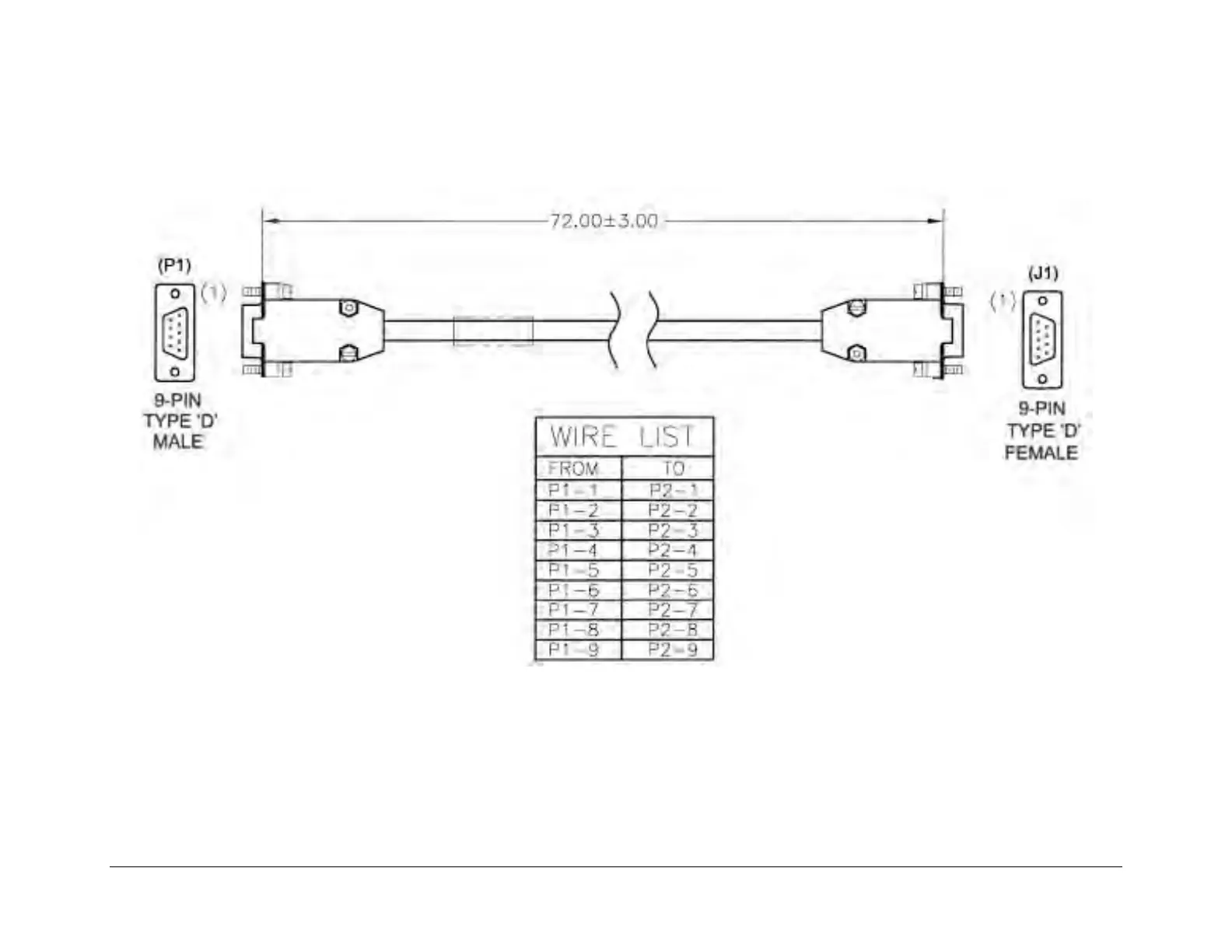

Figure B-32. CDM-600/L Audio Data Cable (CA/WR9932-1)
