CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-34

B.4.17 Switch-to-Modem, Quad E1 Data Cable for CDM-Qx/QxL (DB-15F4X RJ-45M)

You may use this cable to connect the Switch CRS-305 RMI to the redundant CDM-Qx/QxL Quad E1 interface.

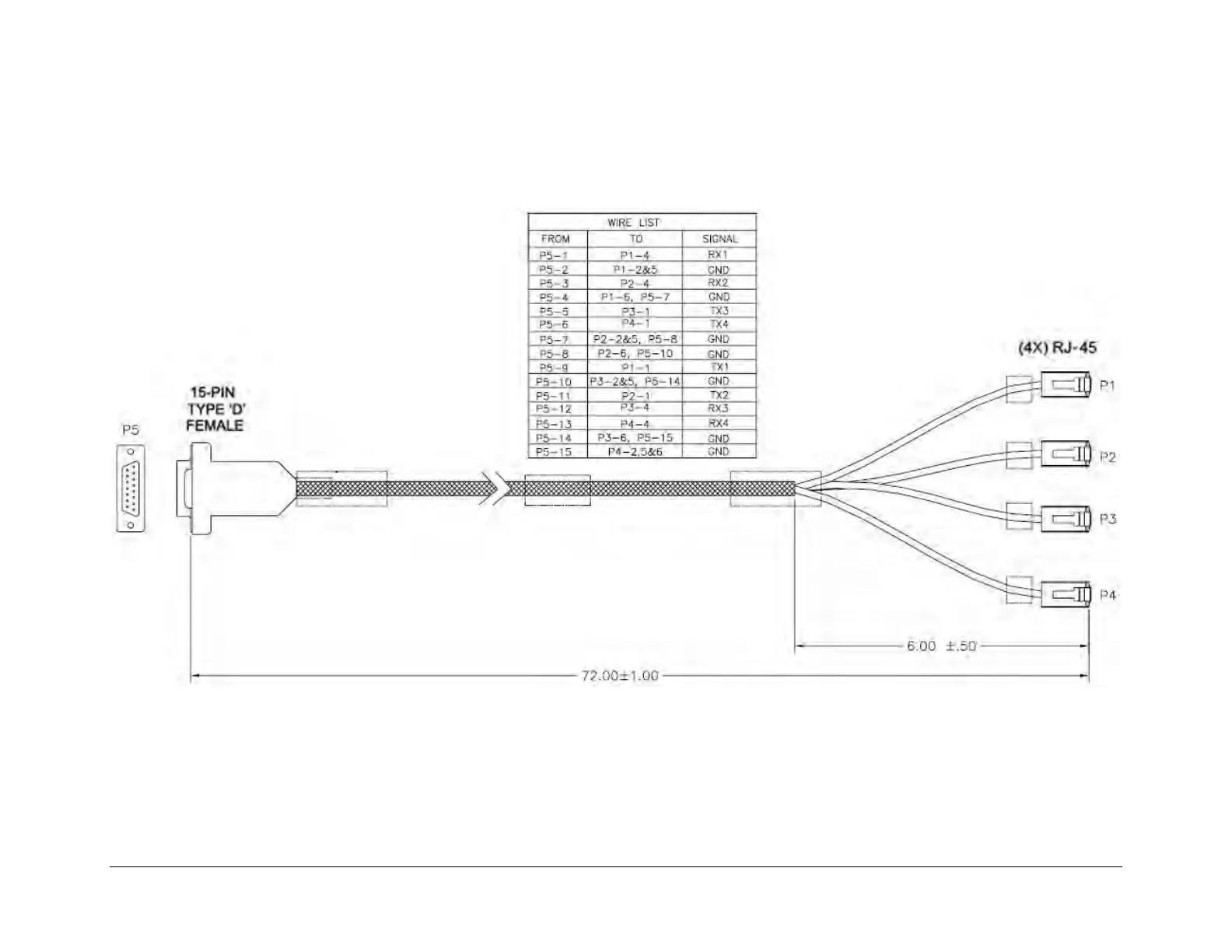

Figure B-29. CDM-Qx/QxL Quad E1 Data Cable (CA/WR13018-1)
