Comtech EF Data CRS-300 - Figure B-4. CDM-625;A Control Cable (CA-0000069); Switch-To-Modem, Control Cable for CDM-625;A (HD-15 MDB-9 M

To Next Page

To Previous Page

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-6

B.3.1 Switch-to-Modem, Control Cable for CDM-625/A (HD-15MDB-9M)

You may use this control cable to connect the Switch to the CDM-625/A Modem.

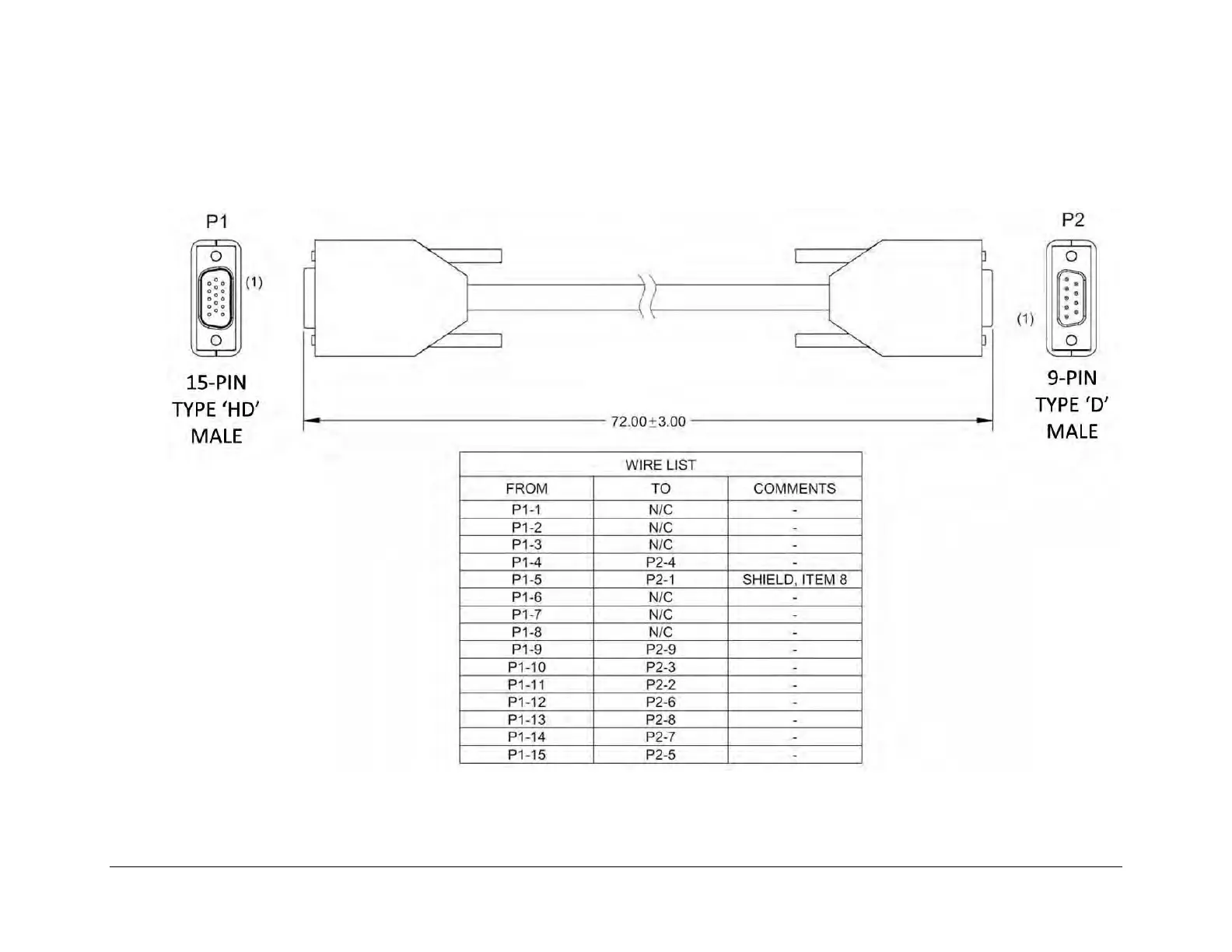

Figure B-4. CDM-625/A Control Cable (CA-0000069)
