CRS-300 1:10 Redundancy Switch MN/CRS300.IOM
Introduction Revision 19
1–12

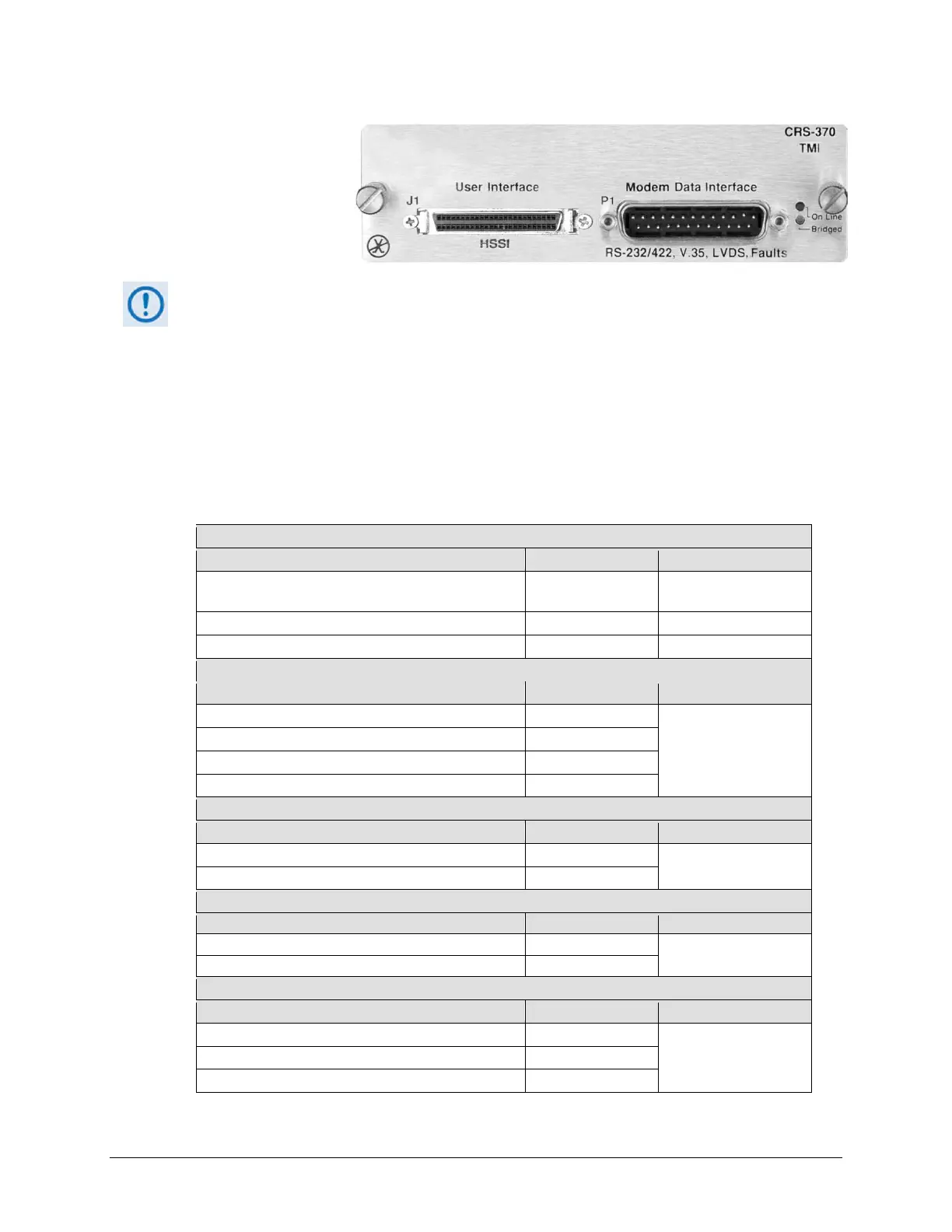

Figure 1-13. CRS-370
TMI HSSI (PL/9034-1)
FOR USE WITH
CDM-600/L ONLY
HD-50 Female DB-25 Male
Depending on the traffic data type, the appropriate jumper settings are provided on the
TMI to ensure proper operation for RTS/CTS, DTR/DSR (CRS-320 (obsolete) or CRS-340
TMIs) and CA/TA (CRS-370 TMI). See Chapter 5. MODEM, TMI AND SWITCH
CONFIGURATION for this important configuration information.
1.3.3.3.2 SLM-5650/5650A, CDM-Qx/QxL, CDM-710G/710GL, CDM-710,
CDM-700 Interface Cards
The following tables indicate the TMI (Traffic Modem Interface) and RMI (Redundant Interface)
cards that should be used with each modem and data type:
SLM-5650/5650A Modems
Data Type
TMI Type
RMI Type
Note 3
MIL-STD-188-114, EIA-530/-422 or Single-port
Ethernet Bridge Mode
CRS-316
Note 1
CRS-306 (GigE only)
CRS-307
G.703 Bal/UnBal
CRS-325
CRS-306
HSSI or Single-port Ethernet Bridge Mode
CRS-336
Notes 2, 4
CRS-306/307
CDM-Qx/QxL Modems
Data Type
TMI Type
RMI Type
EIA-530/-422/V.35, EIA-232
CRS-316
Note 1
CRS-305
G.703 T1/E1 Bal D&I , Unbal
CRS-325
HSSI
CRS-336
Note 2
Quad E1
CRS-365
CDM-710G/710GL Modems
Data Type
TMI Type
RMI Type
G.703 Unbal
CRS-325
CRS-306
HSSI or GigE
CRS-336
Note 4
CDM-710 Modem
Data Type
TMI Type
RMI Type
ASI
CRS-325
CRS-306
HSSI or GigE
CRS-336
Note 4
CDM-700 Modem
Data Type
TMI Type
RMI Type
Note 3
OC3 Copper
CRS-325
CRS-306
HSSI or GigE
CRS-336
Notes 2, 4
G.703 (E3/T3/STS-1) UnBal 1 to 4 Ports
CRS-345
