CRS-300 1:10 Redundancy Switch MN/CRS300.IOM

Appendix B Revision 19

B-21

B.4.4 Modem-to-Modem, Multi-Drop CnC

Plus Shielded Data Cable for CDM-625/A (11X

DB-9M)

You may use this Type ‘D’ 9-pin Multi-Drop cable to interconnect redundancy-enabled CnC

CDM-625/A Modems.

This cable bypasses the CRS-300 1:10 Redundancy Switch.

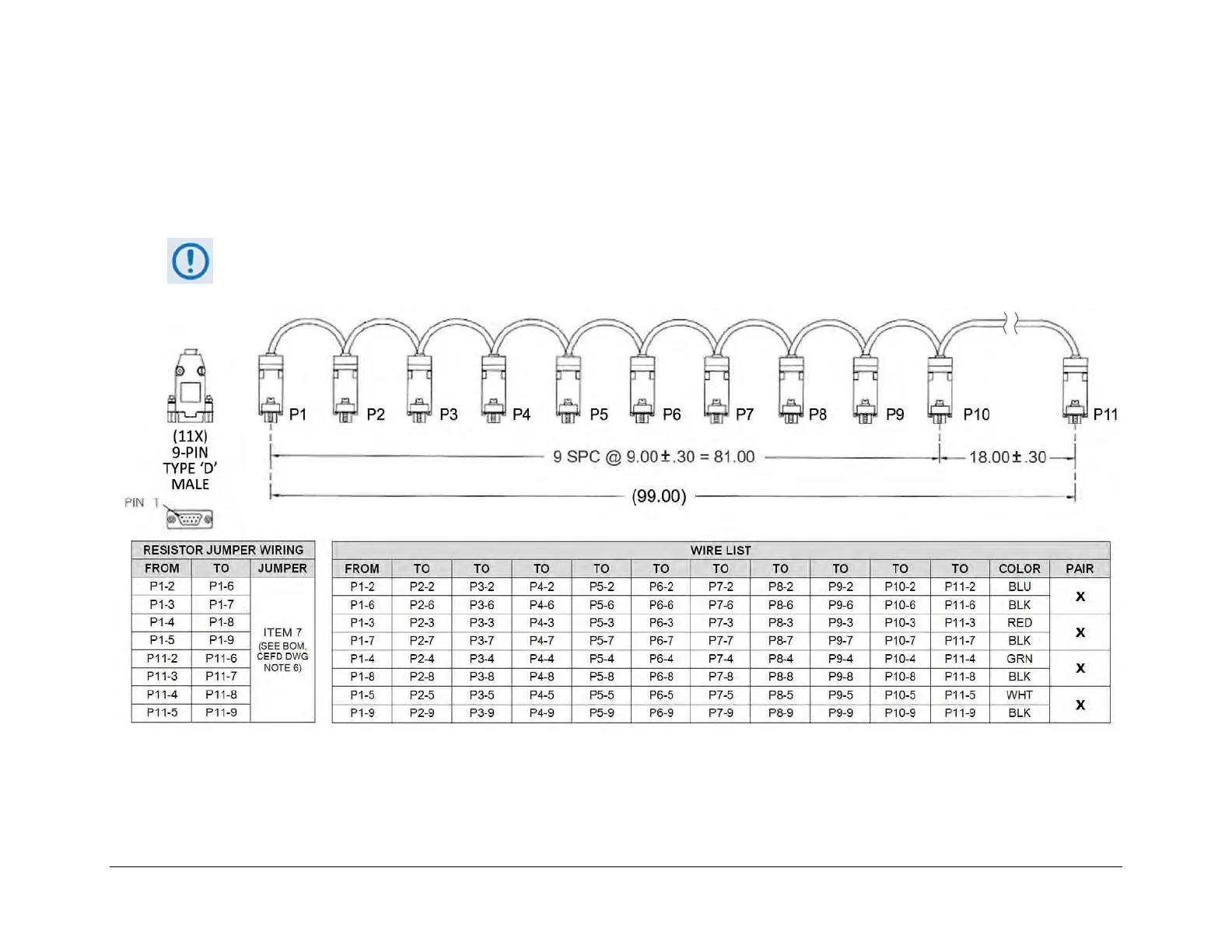

Figure B-16. Multi-Drop CnC® Plus Shielded Data Cable for CDM-625/A (CA-0000275)
