B.3.4 Switch-to-Modem, Standard EIA-485 Multi-Drop Shielded Cable for CDM-Qx/QxL (15X

DB-9F)

You may use this standard Type ‘D’ 9-pin female Multi-Drop cable to daisy-chain CDM-Qx/QxL Modems for communications.

You may use the optional CA/RB11423-1 EIA-485 Multi-Drop Ribbon Cable (Figure B-10) when Electromagnetic

Compatibility (EMC) is not a concern.

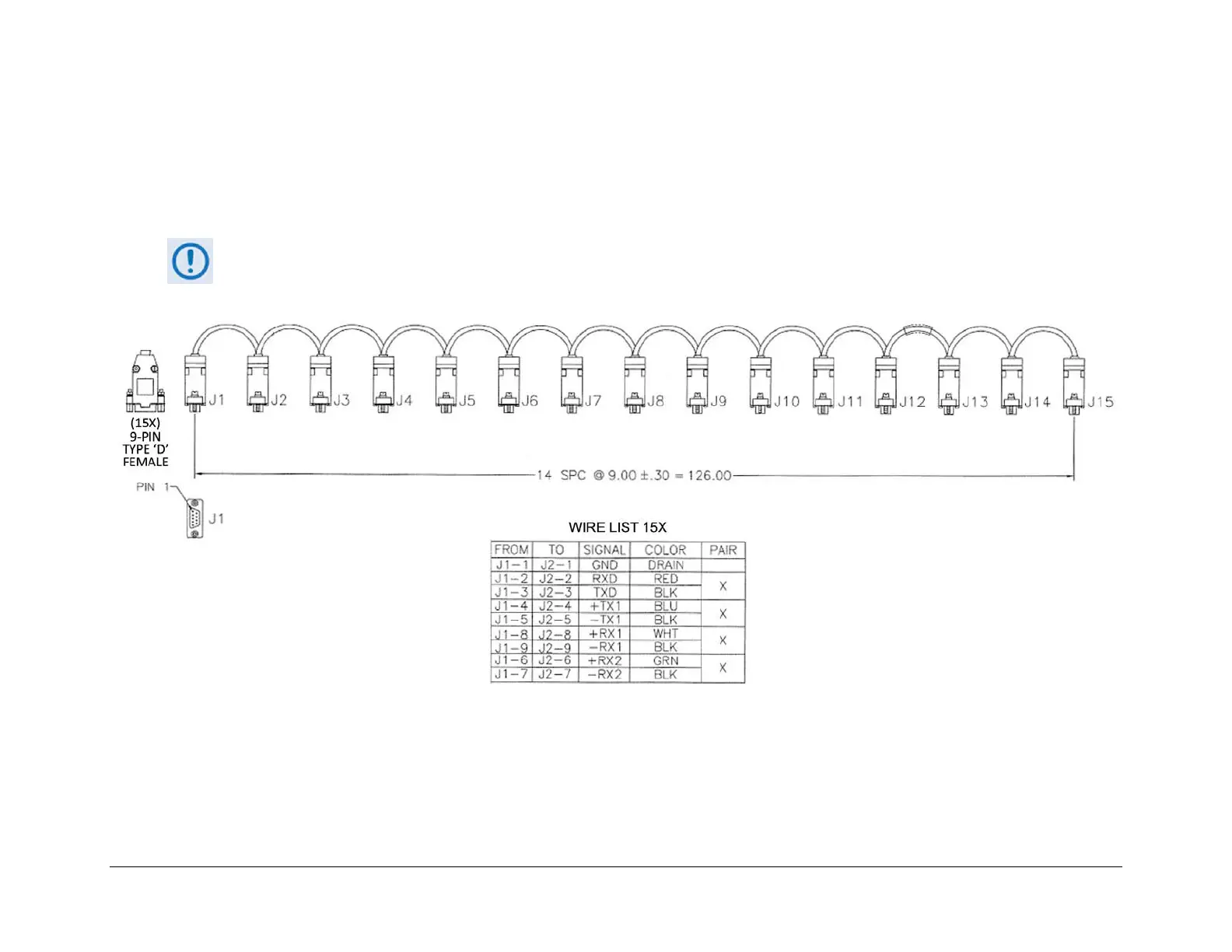

Figure B-7. CDM-Qx/QxL Standard EIA-485 Multi-Drop Shielded Cable (CA/WR11417-1)
