Comtech EF Data CRS-300 - Figure 1-14. CRS-305 RMI (PL;11494-1); Figure 1-15. CRS-306 RMI (PL;11494-2); Figure 1-16. CRS-307 RMI (PL;11494-3); RMI Cards

CRS-300 1:10 Redundancy Switch MN/CRS300.IOM
Introduction Revision 19
1–13
Notes (as of April 2007):
1) Use CRS-316 instead of CRS-315. To maintain older TMIs in the field, Switch
firmware must also support the CRS-315.
2) Use CRS-336 instead of CRS-335. To maintain older TMIs in the field, Switch
firmware must also support the CRS-335.
3) Use CRS-306 instead of CRS-305. To maintain older RMIs in the field, Switch
firmware must also support the CRS-335.
4) For modems where the terrestrial data type is Ethernet, you can use only one
Ethernet port in Single-port Ethernet Bridge Mode, on the modem rear panel (when
using the optional Ethernet interface).

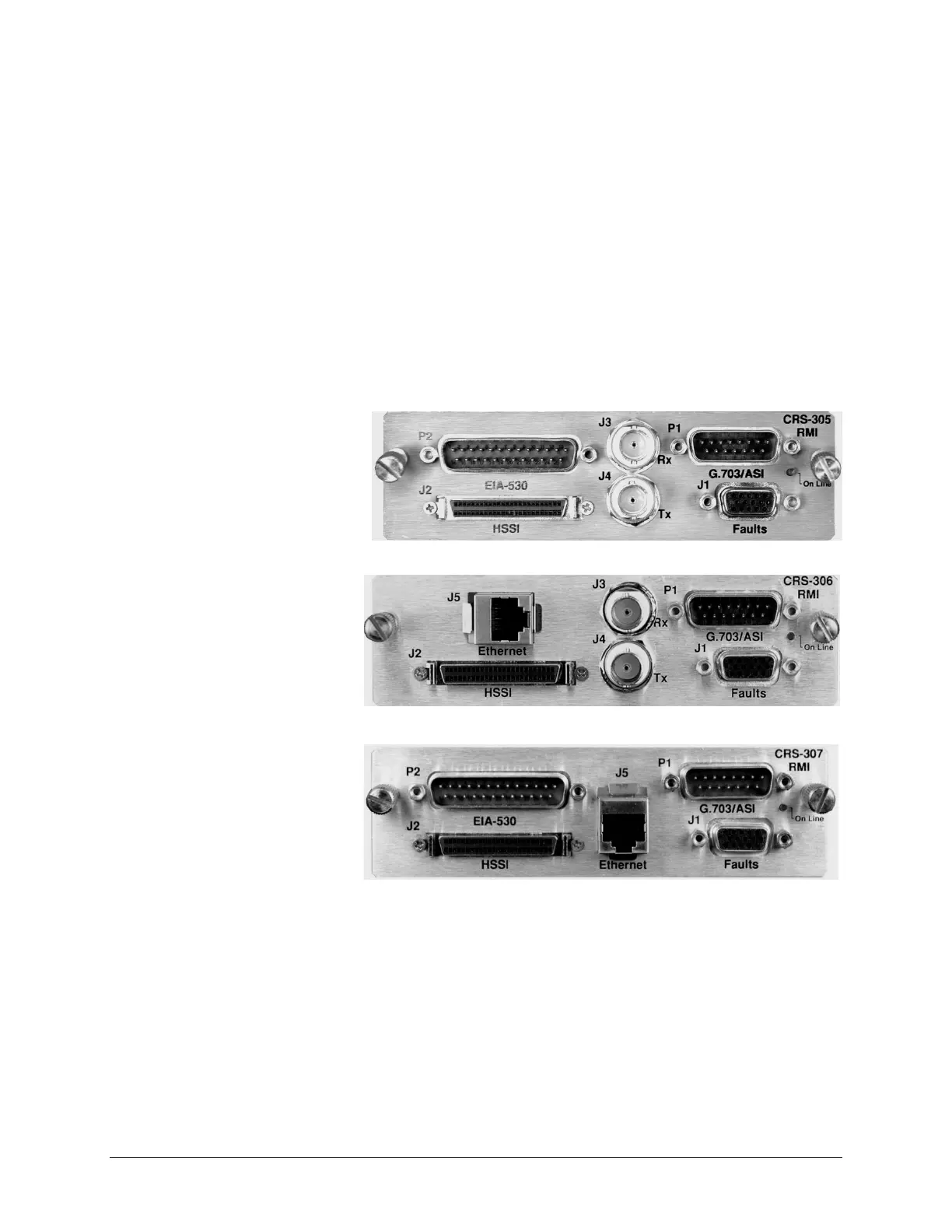

1.3.3.3.2.1 RMI Cards
Figure 1-14. CRS-305 RMI
(PL/11494-1)
DB-25 Male (2X) BNC Male DB-15 Male
HD-50 Female HD-15 Female
Figure 1-15. CRS-306 RMI
(PL/11494-2)
10/100/1000 (2X) BNC Male DB-15 Male
HD-50 Female HD-15 Female
Figure 1-16. CRS-307 RMI
(PL/11494-3)
DB-25 Male DB-15 Male
HD-50 Female RJ-45 HD-15 Female
