Connexity M6504 - Base Station Trunk Observation (Menu 4-7-4); Figure 119: Selection of Trunk Group to be Observed; Figure 120: Observation of the Selected Trunk Group

.
Page 140 15/09/2004 PS8149KENAA01
Ce document est la propriété de EADS et ne doit pas être reproduit ou communiqué sans autorisation.
This document is the property of EADS and may not be copied or circulated without authorisation.
4.7.4 BASE STATION TRUNK OBSERVATION (MENU 4-7-4)
 For the Call Manager (F5): this menu is not available.

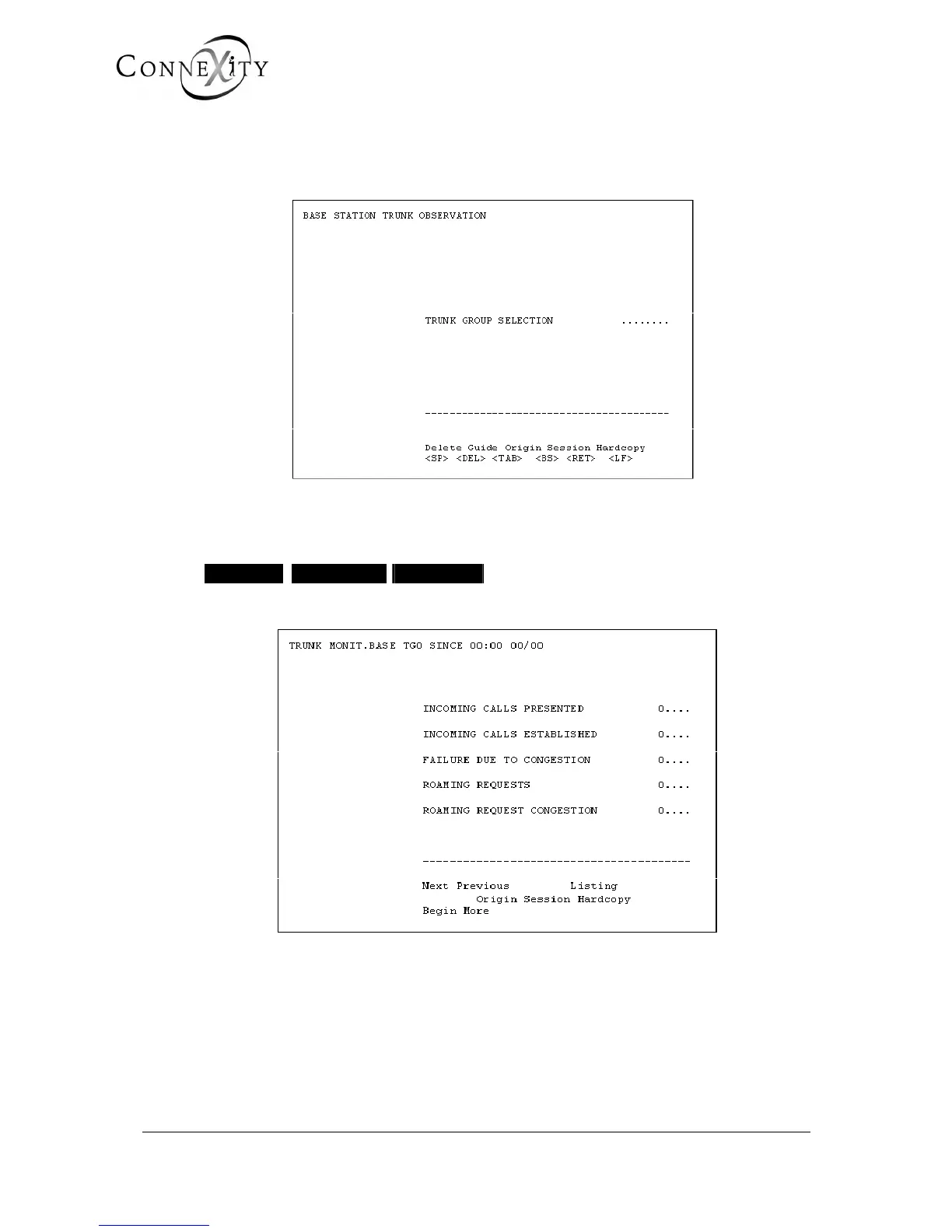

Figure 119: Selection of trunk group to be observed
TRUNK GROUP SELECTION
• • • • • • BASE TG0
Select the trunk group to be observed.
Figure 120: Observation of the selected trunk group
