FOR THE PHYSICAL TYPE (FIX FORMAT BELOW)
DIGITAL TRK ANALOG TRK TIE LINE
Select a trunk type.
Note: DIGITAL TRK is available on M6501L/R / M6504 PBXs and XL/XS using an LT2
card.
When you validate the screen Non ISDN signalling parameters, the following screen is
displayed:

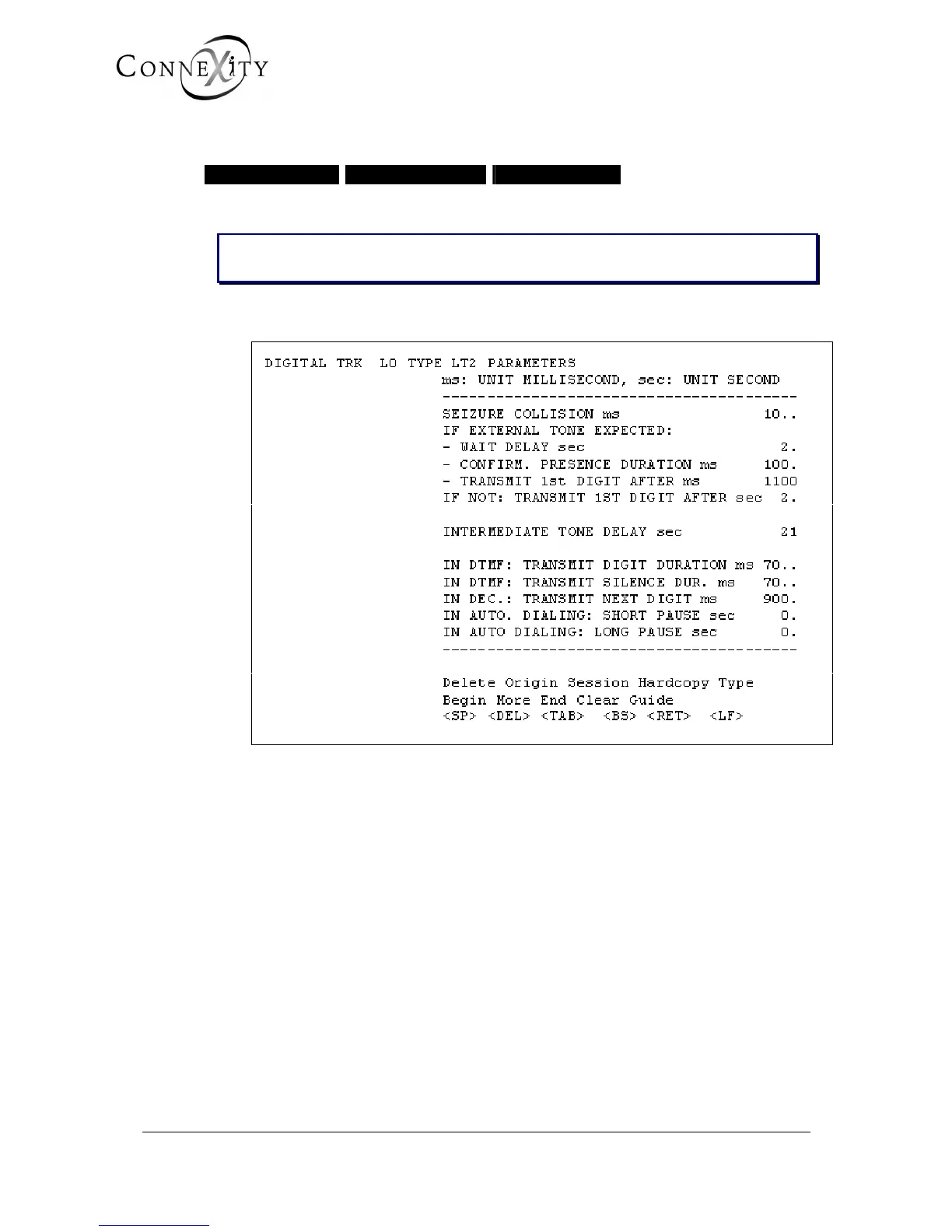

Figure 200: Non ISDN signalling parameters (continued)
