3.2.4 M6504/M6540 CARDS

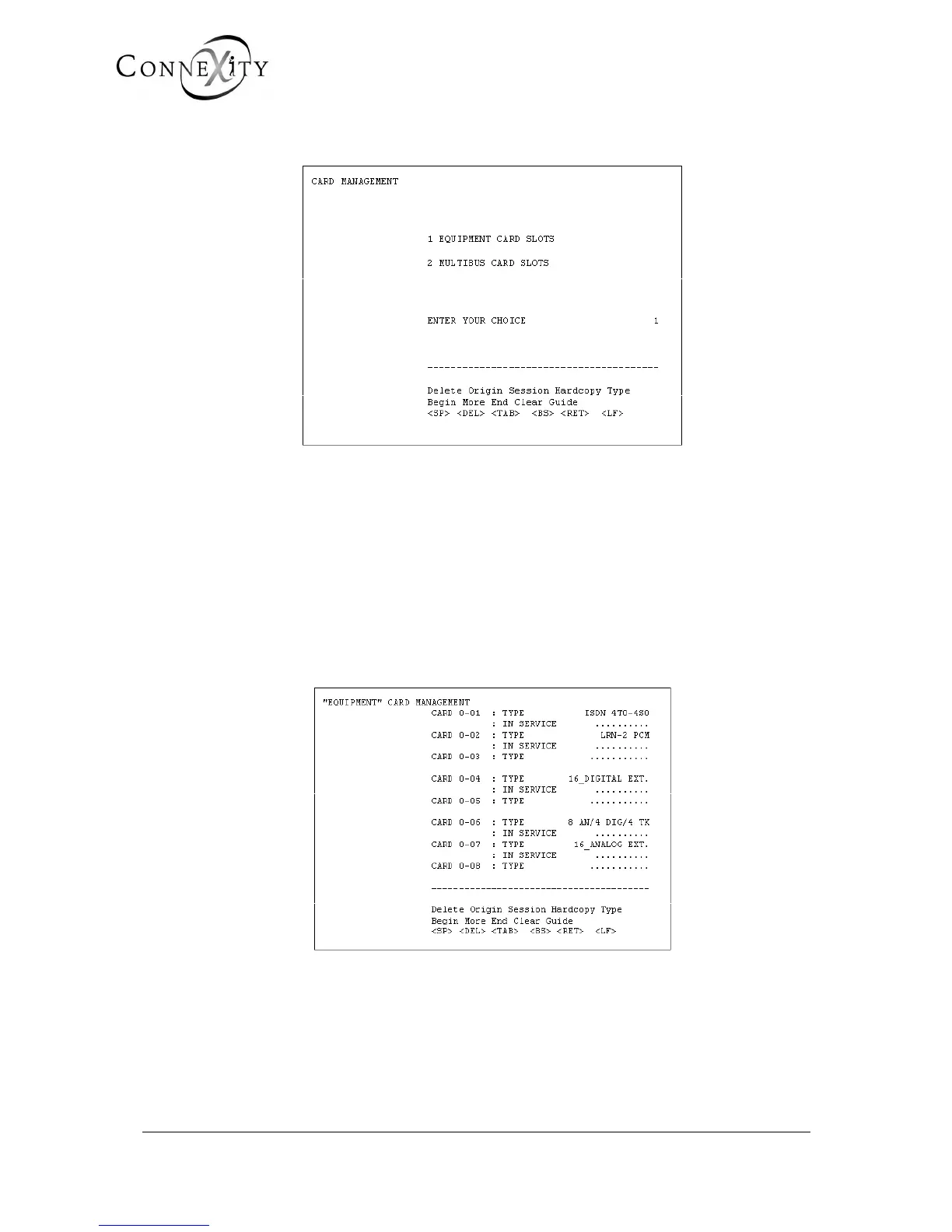

Figure 7: Card management (M6504/M6540)
3.2.4.1 EQUIPMENT CARD SLOTS
The M6504/M6540 has two cabinets: the main cabinet (0) and the expansion cabinet (1).
The slot number is therefore preceded by the cabinet number.
Example: Card 0-2 (second card of type PCM LRN-2 in cabinet 0).
CABINET 0
Main cabinet with an FP04PD back plane (
TELEPHONE + DATA).
