Connexity M6504 - Recording Parameters (Menu 5-6-5); Figure 208: R2 Standard Recorder Parameters

.
PS8149KENAA01 15/09/2004 Page 217
Ce document est la propriété de EADS et ne doit pas être reproduit ou communiqué sans autorisation.
This document is the property of EADS and may not be copied or circulated without authorisation.
5.6.5 RECORDING PARAMETERS (MENU 5-6-5)
 For the Call Manager (F5): this menu is not available.

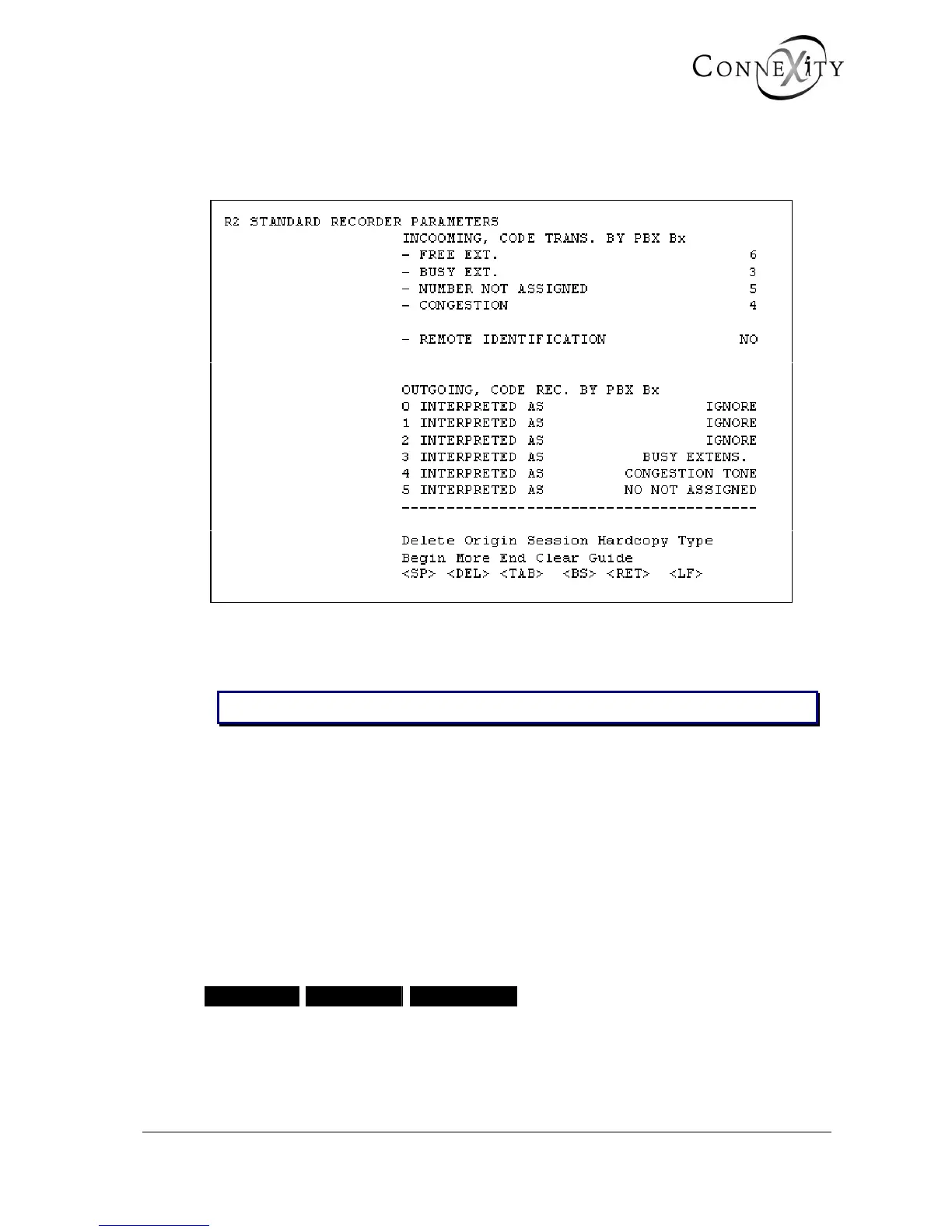

Figure 208: R2 Standard recorder parameters
This menu is used to configure the parameters of a recorder.
Note: The only type of recorder that can currently be configured is the R2 type.
INCOMING, CODE TRANS; BY PBX BX
FREE EXTENSION
Select a number: from 0 to 9
NUMBER NOT ASSIGNED
Select a number: from 0 to 9
CONGESTION TONE
Select a number: from 0 to 9
REMOTE IDENTIFICATION
NO AT END DURING
Select an identification.
