3.2.4.2 "MULTIBUS" SLOTS
The M6504/M6540 has two cabinets: the main cabinet (0) and the expansion cabinet (1).
The slot number is therefore preceded by the cabinet number.
Example: Card 0-2 (second card of type CCP in cabinet 0).
CABINET 0
Main cabinet with an FP04P back plane (
TELEPHONE).

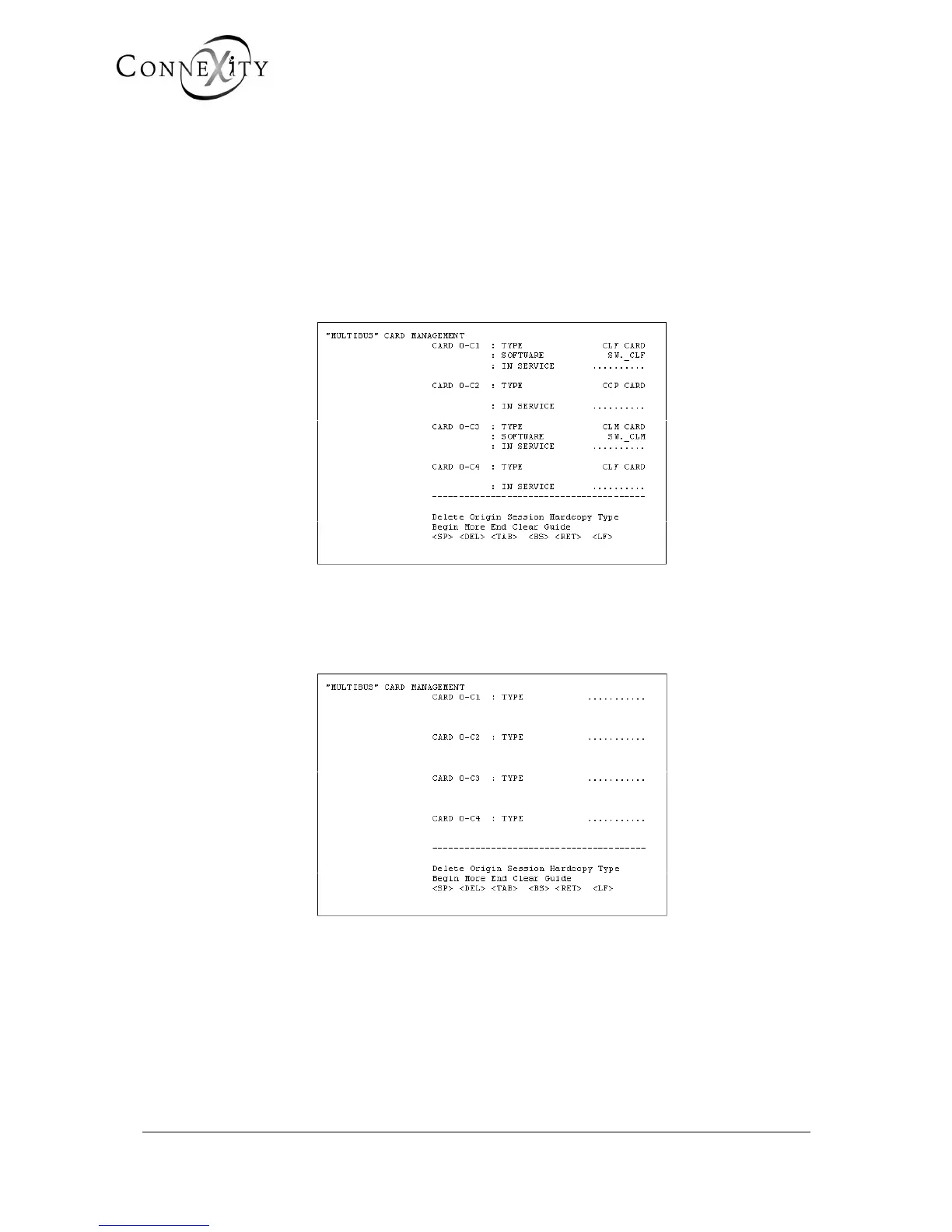

Figure 11: "Multibus" card management (M6504/6540)
CABINET 1
Expansion cabinet with an FP04PD mixed back plane (TELEPHONE + DATA).
Figure 12: "Multibus" card management (M6504/6540) (continued)
