Danfoss iC2 User Manual

Application Guide | iC2-Micro Frequency Converters
Selection number Selection name
11 Local bus reference
21 Potentiometer
P 5.5.3.10 Preset Reference
Use this parameter, an array [8], to define preset references. Enter up to 8 different preset references. To activate a preset reference, use
digital input and select from [16] Preset reference bit 0, [17] Preset reference bit 1, or [18] Preset reference bit 2, in the corresponding
parameter in parameter group P 9.4.1 Digital Input.
Default value: 0.00 Parameter type: Range (-100.00–100.00)
Parameter
number:
310 Unit: %
Data type: int16 Access type: Read/Write
P 5.5.3.11 Preset Relative Reference
Use this parameter, an array [8], to define a fixed value to be added to the variable value defined in P 5.5.3.12 Relative Scaling Reference
Resource. Their sum is multiplied by the actual reference. This product is then added to the actual reference to give the resulting actual
reference.
Default value: 0.00 Parameter type: Range (-100.00–100.00)
Parameter
number:
314 Unit: %
Data type: int16 Access type: Read/Write
Relative
Z=X+X*Y/100
Resulting
actual
reference
Y
X
e30ba059.13
Z

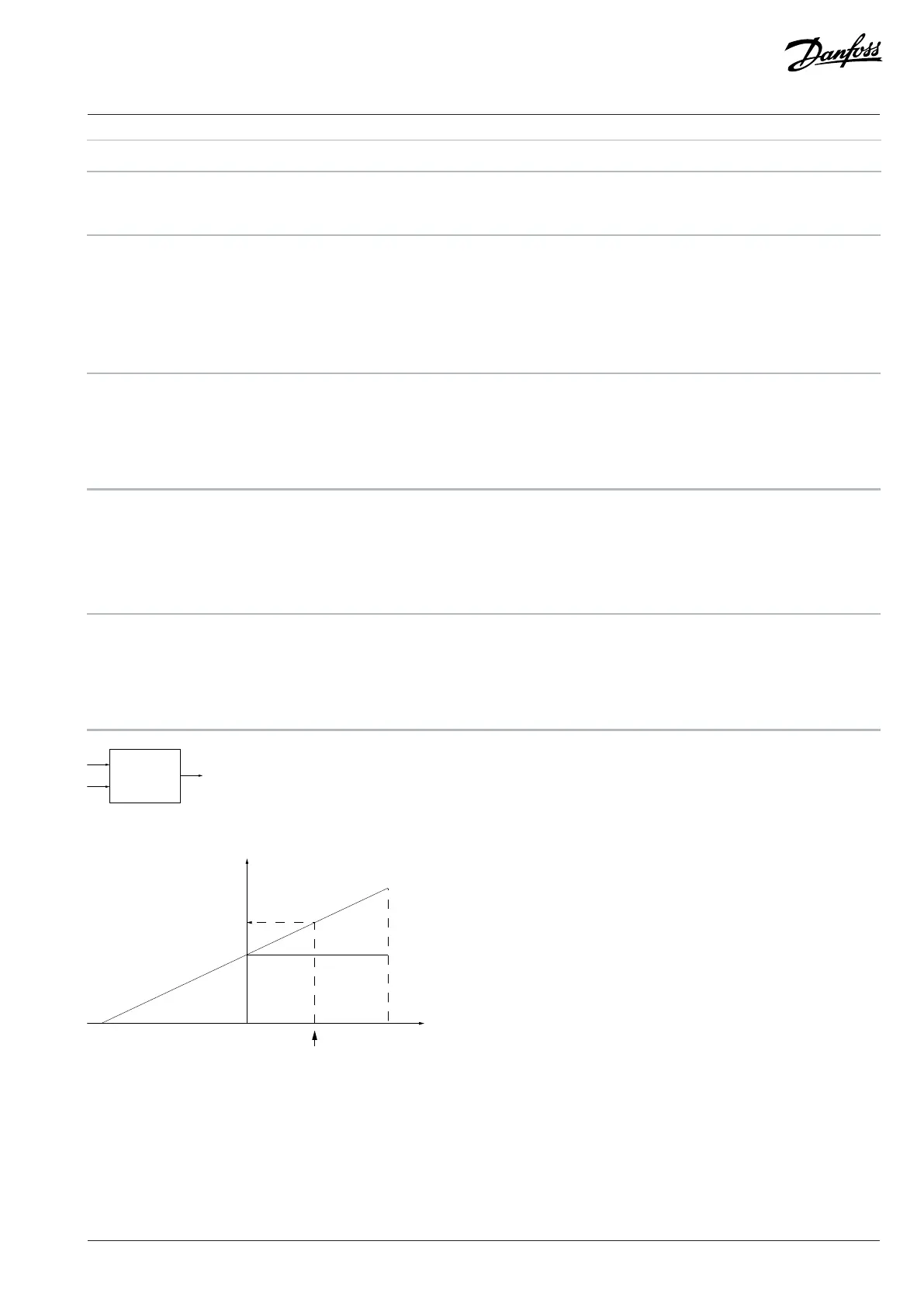

Figure 75: Preset Relative Reference
X
100
%
0
-100
Z
Y
X+X*Y/100
P 5.5.3.11 Preset
Relative Reference
e30bk135.10
Figure 76: Actual Reference
P 5.5.3.12 Relative Scaling Reference Resource
Use this parameter to define a variable value to be added to the fixed value defined in P 5.5.3.11 Preset Relative Reference. Their sum is
multiplied by the actual reference. This product is then added to the actual reference to give the resulting actual reference.
Danfoss A/S © 2024.03 AB413939445838en-000301 / 130R1254 | 161
