Danfoss iC2 - Page 62

12
13
14
15
17
18
20
31
32
33
34
35
1
2
3
RELAY
Fault
GND
AI2
AI1
10V
AO1
GND
DI4
DI3
DIO
DI2
DI1
24V
Reset
Reverse (1) / Forward (0)
Jog
Output Frequency
Speed Reference 1
Start (pulse )
Stop (pulse )
1k Ohm
e30bj843.10

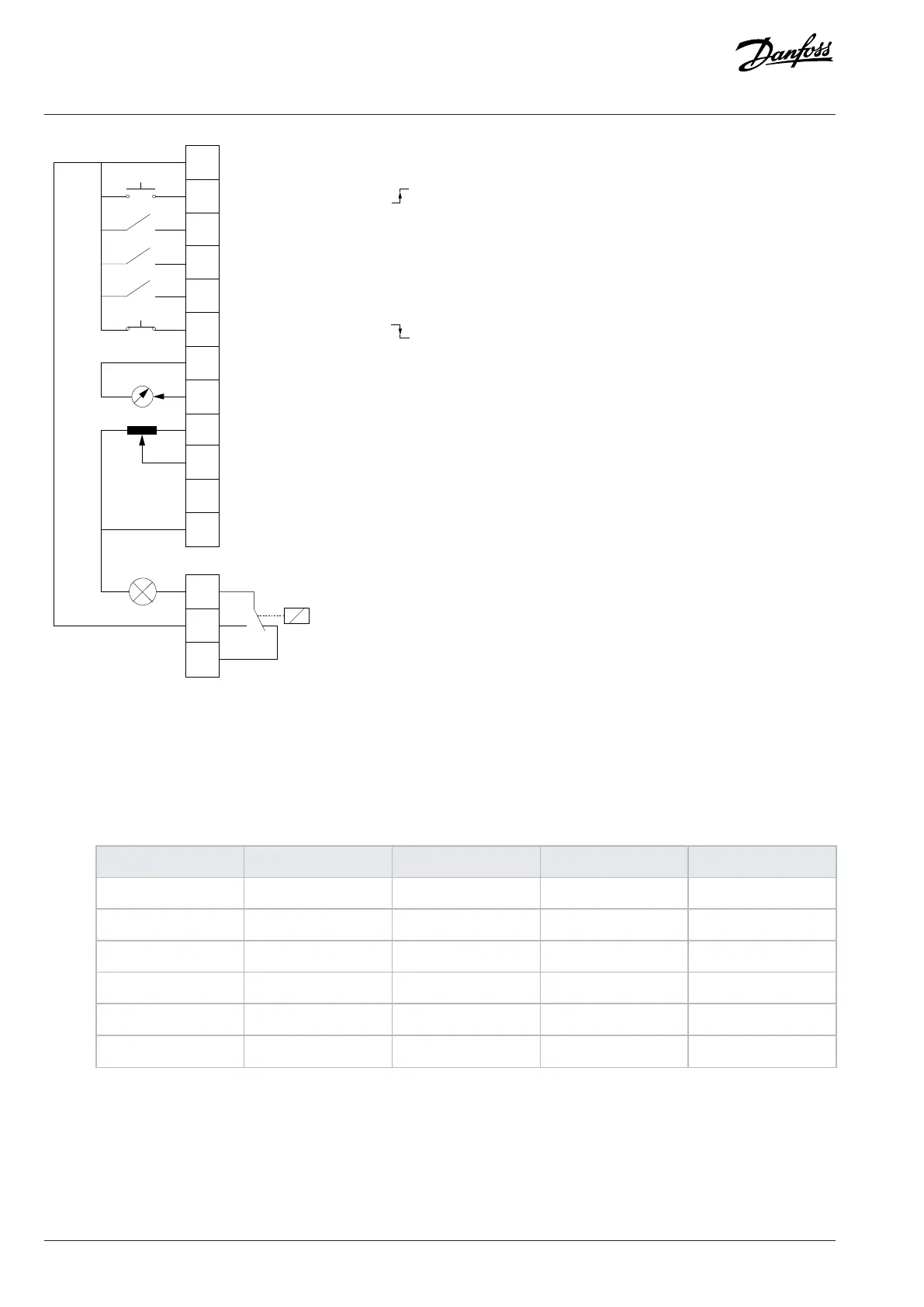

Figure 40: Default Connections
1. Set P 5.4.1 Application Selection to [23] 3-Wire Control Mode.
When [23] 3-Wire Control Mode is selected, the following parameters are automatically set to the values shown in the table.
Table 19: Default Settings
Category Parameter index Parameter name Default setting Parameter number
Operation mode 5.4.2 Operation Mode [0] Speed Open Loop 100
DI 1 - T13 9.4.1.2 T13 Digital Input [9] Latched start 510
DI 2 - T14 9.4.1.3 T14 Digital Input [10] Reversing 511
DI/O - T15 9.4.1.4 T15 Digital Input [1] Reset 512
DI 3 - T17 9.4.1.5 T17 Digital Input [14] Jog 513
DI 4 - T18 9.4.1.6 T18 Digital Input [6] Stop inverse 515
62 | Danfoss A/S © 2024.03 AB413939445838en-000301 / 130R1254
Application Guide | iC2-Micro Frequency Converters
