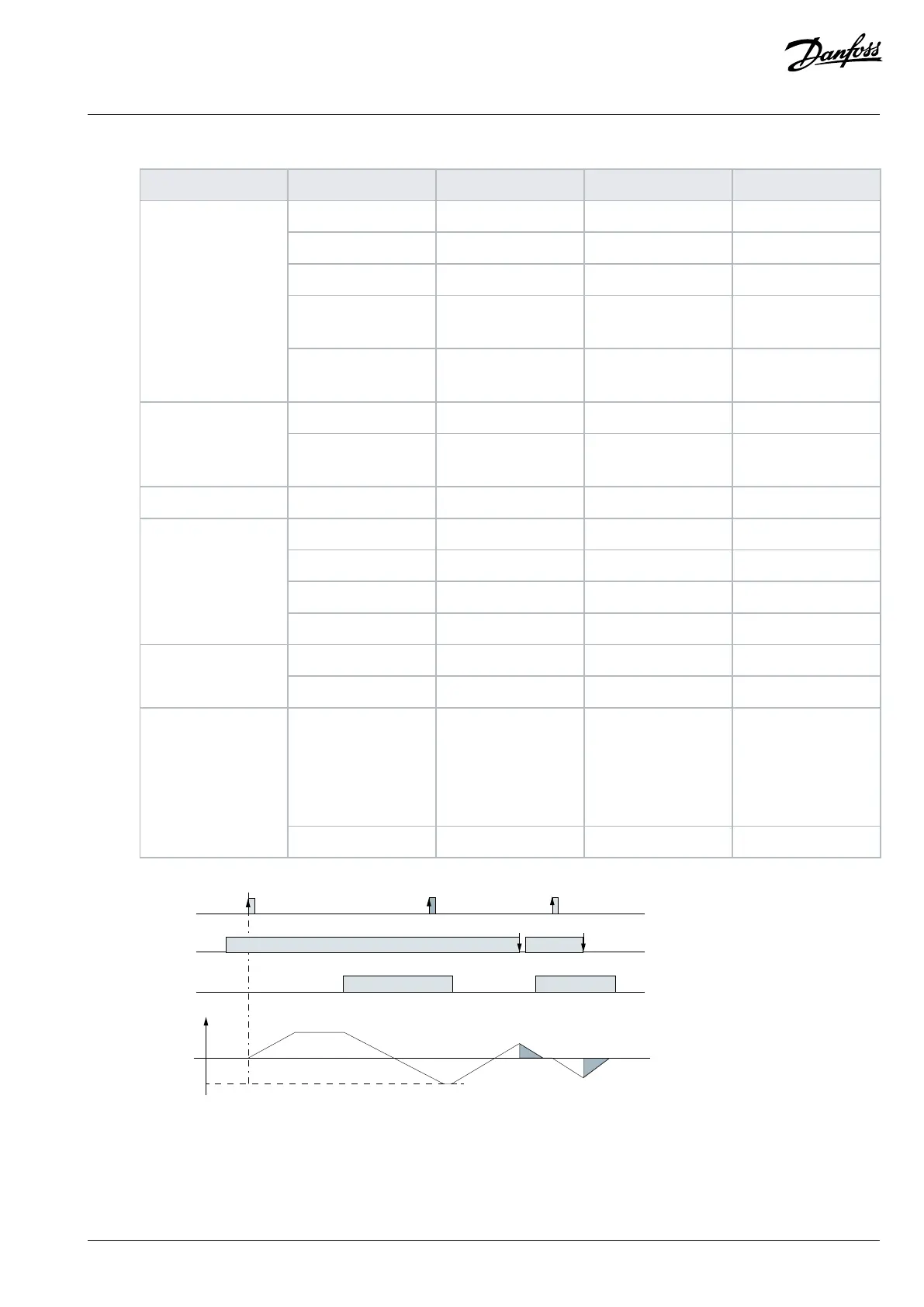

Table 19: Default Settings (continued)
Category Parameter index Parameter name Default setting Parameter number
9.5.2.1 T33 Mode [1] Voltage Mode 619
9.5.2.2 T33 High Voltage 10 V 611
9.5.2.3 T33 Low Voltage 0.07 V 610
9.5.2.6 T33 High Ref./Feedb.
Value
50 615
AI1 - T33
9.5.2.7 T33 Low Ref./Feedb.
Value
0 614
9.5.1.1 T31 Mode [0] 0-20mA 690AO1 - T42
9.5.1.2 T31 Analog Output [100] Output Fre-
quency
691
Relay 9.4.3.1 Function Relay [9] Fault 540
5.5.3.5 Reference Function [0] Sum 304
5.5.3.7 Reference 1 Source [1] Analog Input 33 315
5.5.3.8 Reference 2 Source [0] No Function 316
External reference
5.5.3.9 Reference 3 Source [0] No Function 317
5.9.2 Jog Reference 5.0 311Jog
5.9.1 Jog Ramp Time 3 s 380
5.5.3.3 Reference Maximum 50. If [1] North Amer-
ica is selected for
P 1.2.1 Regional
Settings, the default
value is 60.
303Reference limits
5.5.3.4 Reference Minimum 0 302
Reverse Reverse
Stop
Falling Edge
Start
Rising Edge
Start
Rising Edge
Command Ignored
0Hz
D11
Start
D14
Stop
DI2
Reverse
Fr-out max.
-Fr-out max.
Frequency
Output
e30bk103.10
Figure 41: Example
