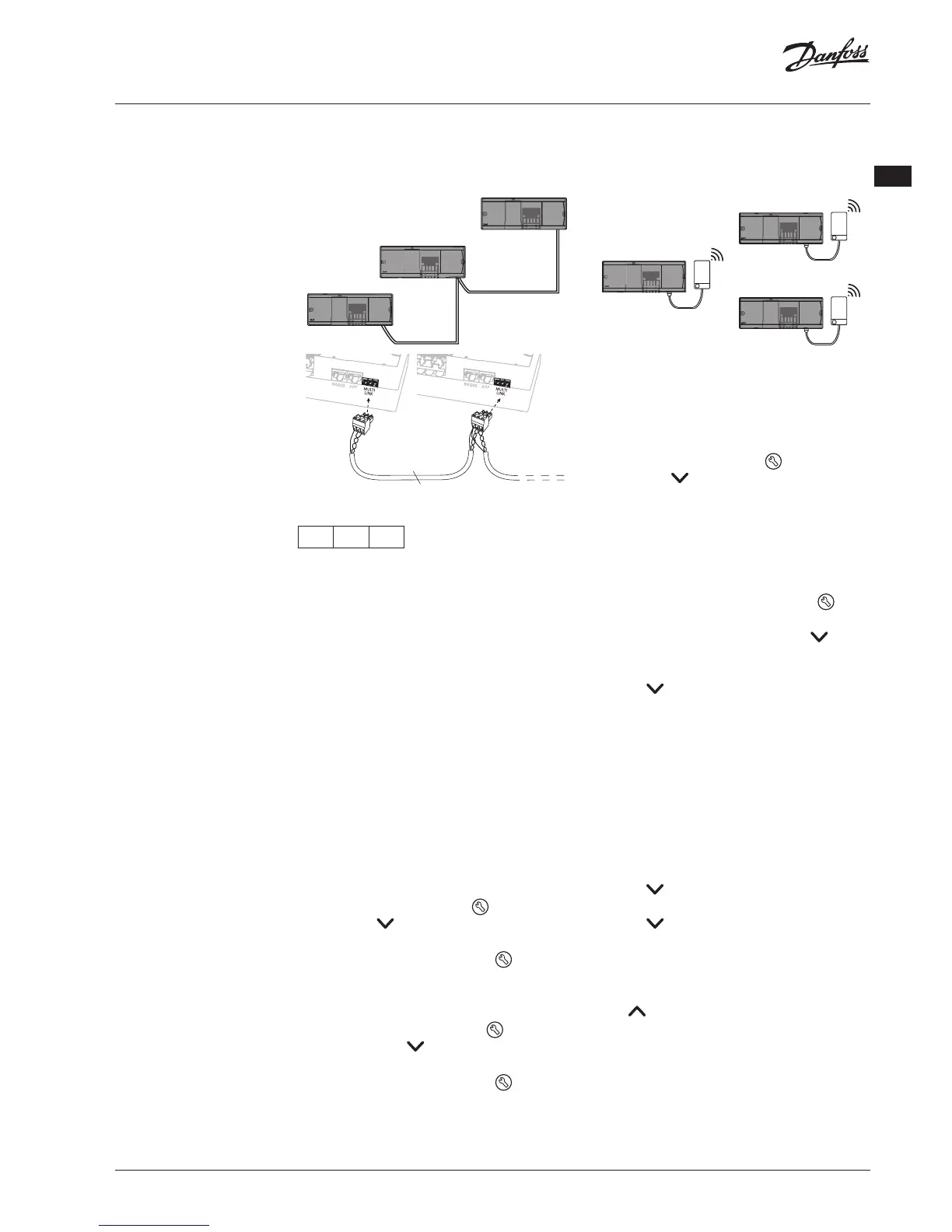

Installation Guide Danfoss Icon™ Master Controller 24 V
Connecting more
Danfoss Icon™
Master Controllers in
a system
If wired system
Connect up to three Danfoss Icon™ Master
Controller 24V to each other with a 4-wire twisted
pairs cable and the supplied connector.
Cable pin out
1 2 3
1. GND
2. COM A
3. COM B
If wireless system
Wireless connection of up to three Danfoss Icon™
Master Controllers 24V requires a Radio Module
with each Master / Slave.
Connecting procedure for multiple Danfoss
Icon™ Controllers in a system
On System Master
1. Install all thermostats and thermal actuators as
described in the Quick Guide D2 to D6.
2. Perform network test. Press
to select TEST
and press
to choose NET TEST. Conrm
witk OK (Quick Guide E7 and E8).
Pairing Master and Slave
Note! Slave Controllers must be assigned as System
Slaves before assigning outputs and thermostats to
them.
1. On the selected system master, press
to
select INSTALL mode.
2. On the system slave, press and hold
for
1.5 sec. The display now toggles between
SLA TYPA and SLA TYPB.
3. Press
to choose between the two slave
types and conrm with OK. See “Slave type
denition” on the next page.
4. Repeat step 4 and 5 to assign a 2
nd
Slave
Controller to the system (max. two slaves are
permitted).
NET TEST on System Slave
1. Install all thermostats and actuators as de-
scribed in the Quick Guide D2 to D6.
2. Perform Network test. Press
to select TEST
and press
to choose NET TEST. Conrm
with OK (Quick Guide E7 and E8).
3. After completing the TEST press
to select
RUN mode and press OK (Quick Guide E9).
APP TEST on System Master
1. Perform application test. Press
to select
TEST and press
to choose APP TEST. Con-
rm with OK (Quick Guide E7 and E8).
2. After completing the TEST press
to select
RUN mode and press OK (Quick Guide E9).
Note! If an Expansion Module is added to the system,
it must be installed on the Master Controller.
Changing Slave type
1. On Danfoss Icon™ Slave Controller press and
hold
for 1.5 sec. The display now toggles
between SLA TYPA and SLA TYPB.
2. Press
to choose between the two slave
types and conrm with OK. See “Slave type
denition” for more information.
LINK test on Slave (between Master and Slave)
Press
for 1.5 sec. The display shows inclu-
sion pattern while making the LINK test. When
done, the display shows the number of packages
recieved in percentage.
Test procedures for
multiple Danfoss
Icon™ Controllers in a
system
