2
130BA709.11
1
LABEL
Remove jumper to activate Safe Stop
12
13
18
19
27
29
33
32
20
39
42
50
53
54
61
68
CAUTION:
SEE MANUAL / RCD and high leakage current
VOIR MANUAL / Fransk tekst
WARNING:
Stored charge / “Fransk tekst” (4 min.)
LISTED 76x1 134261
INDUSTRIAL CONTROL EQUIPMENT
SEE MANUAL FOR PREFUSE TUPE IN UL
APPLICATIONS
T/C : CIAXXXPT5B20BR1DBF00A00
P/N : XXXN1100 S/N: 012815G432
IN: 3x380-480V 50/60Hz 14.9A
OUT: 3x0-Uin 0-1000Hz 16.0A 11.1 kVA
CHASIS/IP20 Tamb Max 45C/113F
MADE IN DENMARK
Ø6
1
WARNING! The label MUST be placed on the LCP frame as
shown (UL-approved).
2 Relay card

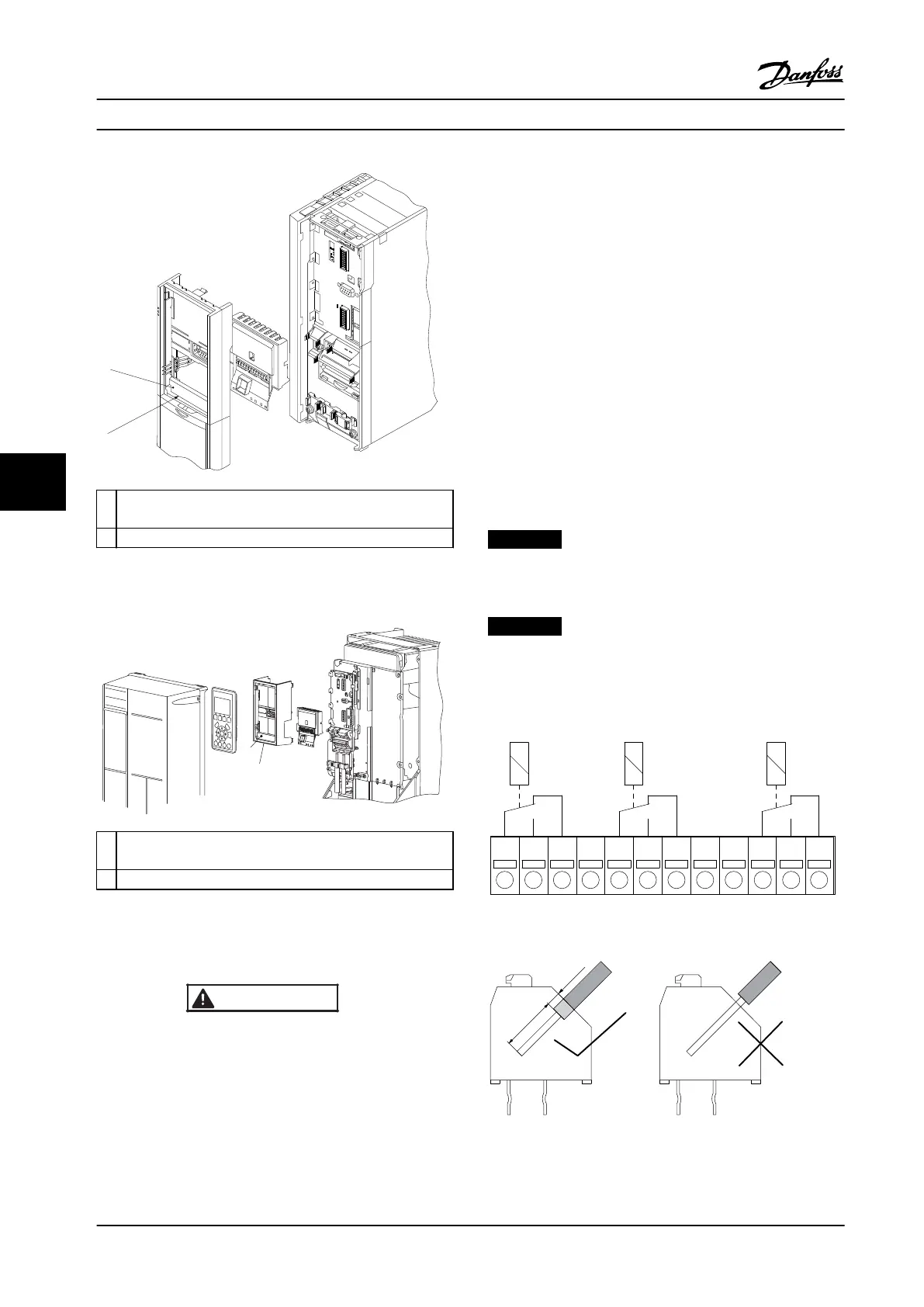

Figure 7.3 Enclosure Sizes A2-A3-B3
2
130BA710.11
1
LABEL
Remove jumper to activate Safe Stop
13
12
18
19
27
32
38
2
28
42
39
53
50
5
61
6
DC-
DC+
1
WARNING! The label MUST be placed on the LCP frame as
shown (UL-approved).
2 Relay card
Figure 7.4 Enclosure Sizes A5-B1-B2-B4-C1-C2-C3-C4
WARNING
Warning Dual Supply
130BE040.10
Figure 7.5 Warning Label Placed on Option
How to add the Relay card MCB 105 option:
1. Disconnect power to the adjustable frequency
drive.
2. Disconnect power to the live part connections on
relay terminals.
3. Remove the LCP, the terminal cover, and the LCP
xture from the adjustable frequency drive.
4. Fit the MCB 105 option in slot B.
5. Connect the control cables and fasten the cables
with the enclosed cable strips.
6. Make sure the length of the stripped wire is
correct (see Figure 7.7).
7. Do not mix live parts (high voltage) with control
signals (PELV).
8. Fit the enlarged LCP xture and enlarged terminal
cover.
9. Replace the LCP.
10. Connect power to the adjustable frequency drive.
11.
Select the relay functions in 5-40 Function Relay
[6-8], 5-41 On Delay, Relay [6-8] and 5-42 O Delay,
Relay [6-8].
NOTICE!
Array [6] is relay 7, array [7] is relay 8, and array [8] is
relay 9
NOTICE!
To access RS485 termination, switch S801 or current/
voltage switches S201/S202, dismount the relay card (see
Figure 7.3 and Figure 7.4, position 2).
Relay 7
NC NCNC
Relay 9Relay 8
1 2 3 12
130BA162.10
754 6 8 9 10 11
Figure 7.6 Relays
130BA177.10
8-9mm
2mm
Figure 7.7 Correct Wire Inserting
Specications
VLT
®
AQUA Drive FC 202
186 Danfoss A/S © 09/2014 All rights reserved. MG20N622
