Danfoss VLT AQUA Drive FC 202 Design Guide

[4]
[3]
[2]
[5]
[1]
130BB670.10
Hole number and recommended
use
Nearest metric
1) Line power M40
2) Motor M40
3)
Brake/load sharing
1)
M32
4) Control cable M25
5) Control cable M20
1) Line power for S2 variants with Line Power Disconnect.

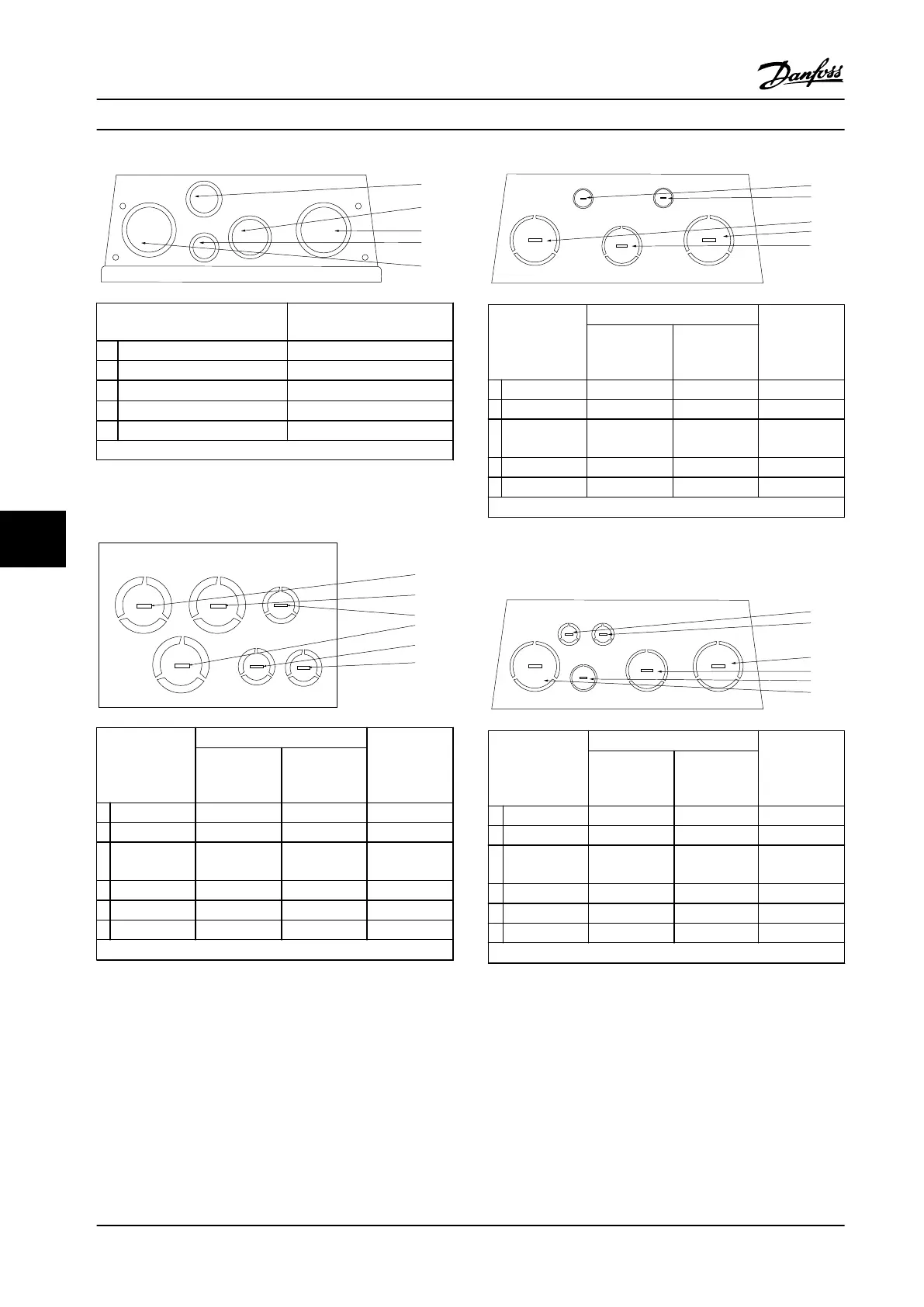

Figure 8.32 Enclosure Size B2, IP55 Threaded Connector Holes
[3]
[2]
[4]
[1]
[5]
[6]
130BB658.10
Hole number
and
recommended
use
Dimensions
1)
Nearest
metric
UL [in] [mm]
1 Line power 1 34.7 M32
2 Motor 1 34.7 M32
3 Brake/load
sharing
1 34.7 M32
4 Control cable 1/2 22.5 M20
5 Control cable 1/2 22.5 M20
6 Control cable 1/2 22.5 M20
1) Tolerance ±0.2 mm
Figure 8.33 Enclosure Size B3, IP21
[5]
[3]
[2]
[4]
[1]
130BB661.10
Hole number
and
recommended
use
Dimensions
1)
Nearest
metric
UL [in] [mm]
1 Line power 2 63.3 M63
2 Motor 2 63.3 M63
3 Brake/load
sharing
1 1/2 50.2 M50
4 Control cable 3/4 28.4 M25
5 Control cable 1/2 22.5 M20
1) Tolerance ±0.2 mm
Figure 8.34 Enclosure Size C1, IP21
[5]
[3]
[2]
[6]
[4]
[1]
130BB662.10
Hole number
and
recommended
use
Dimensions
1)
Nearest
metric
UL [in] [mm]
1 Line power 2 63.3 M63
2 Motor 2 63.3 M63
3 Brake/load
sharing
1 1/2 50.2 M50
4 Control cable 3/4 28.4 M25
5 Control cable 1/2 22.5 M20
6 Control cable 1/2 22.5 M20
1) Tolerance ±0.2 mm
Figure 8.35 Enclosure Size C2, IP21
Appendix - Selected Drawing...
VLT
®
AQUA Drive FC 202
204 Danfoss A/S © 09/2014 All rights reserved. MG20N622
