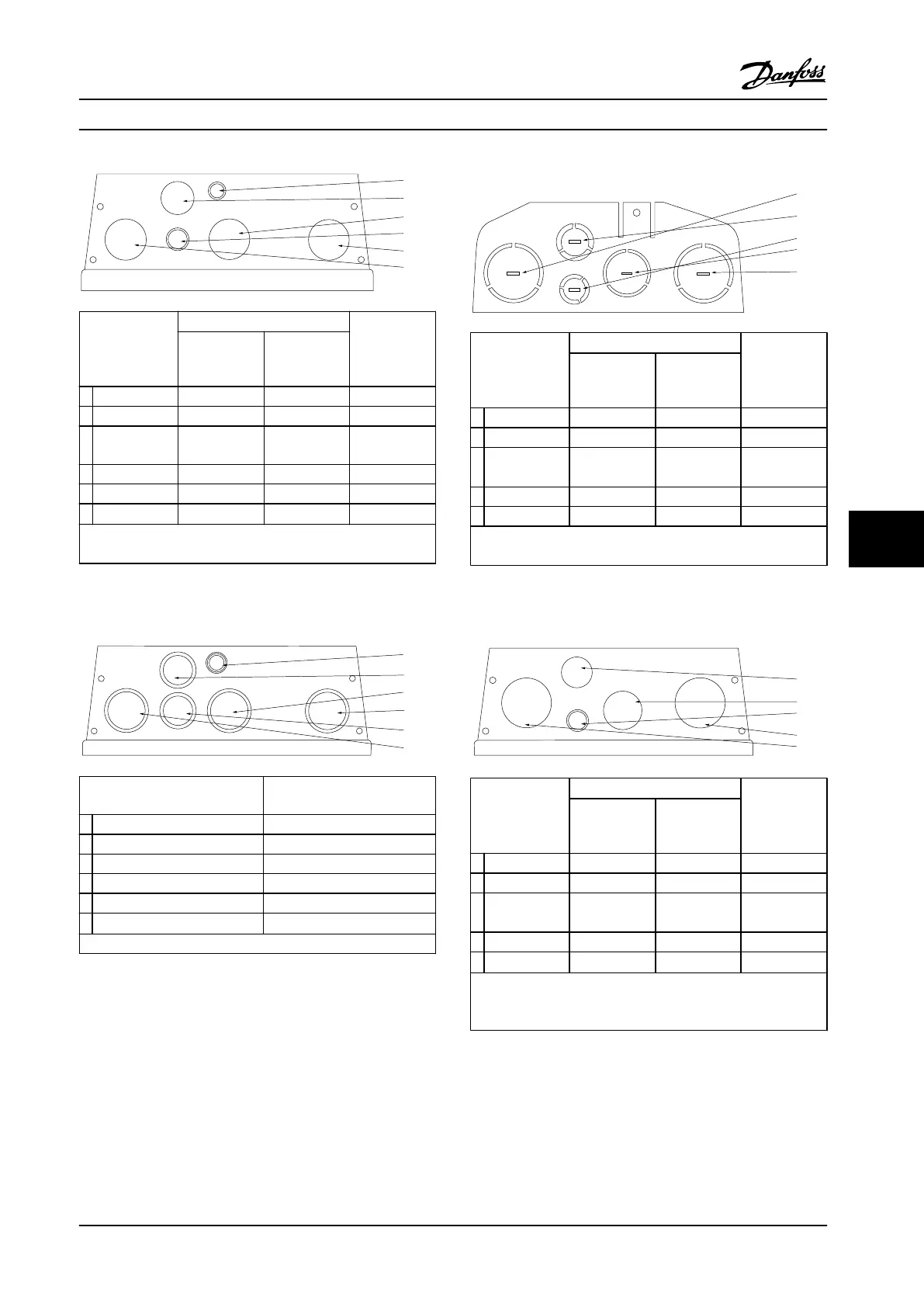

Danfoss VLT AQUA Drive FC 202 Design Guide

[5]
[4]
[3]
[6]
[2]
[1]
130BB667.10
Hole number
and
recommended
use
Dimensions
1)
Nearest
metric
UL [in] [mm]
1 Line power 1 34.7 M32
2 Motor 1 34.7 M32
3 Brake/load
sharing
1 34.7 M32
4 Control cable 3/4 28.4 M25
5 Control cable 1/2 22.5 M20
5
Control cable
2)
1/2 22.5 M20
1) Tolerance ±0.2 mm
2) Knockout hole
Figure 8.28 Enclosure Size B1, IP55
[6]
[5]
[3]
[2]
[4]
[1]
130BB669.10
Hole number and
recommended use
Nearest metric
1 Line power M32
2 Motor M32
3 Brake/load sharing M32
4 Control cable M25
5 Control cable M25
6 Control cable
22.5 mm (1/2 in UL)
1)
1) Knockout hole
Figure 8.29 Enclosure Size B1, IP55 Threaded Connector Holes
[1]
[4]
[5]
[3]
[2]
130BB660.10
Hole number
and
recommended
use
Dimensions
1)
Nearest
metric
UL [in] [mm]
1 Line power 1 1/4 44.2 M40
2 Motor 1 1/4 44.2 M40
3 Brake/load
sharing
2)
1 34.7 M32
4 Control cable 3/4 28.4 M25
5 Control cable 1/2 22.5 M20
1) Tolerance ±0.2 mm
2) Line power for S2 variants with Line Power Disconnect.
Figure 8.30 Enclosure Size B2, IP21
[4]
[3]
[5]
[2]
[1]
130BB668.10
Hole number
and
recommended
use
Dimensions
1)
Nearest
metric
UL [in] [mm]
1 Line power 1 1/4 44.2 M40
2 Motor 1 1/4 44.2 M40
3 Brake/load
sharing
3)
1 34.7 M32
4 Control cable 3/4 28.4 M25
5
Control cable
2)
1/2 22.5 M20
1) Tolerance ±0.2 mm
2) Knockout hole
3) Line power for S2 variants with Line Power Disconnect.
Figure 8.31 Enclosure Size B2, IP55
