Danfoss VLT AQUA Drive FC 202 Design Guide

130BA845.10
A
B

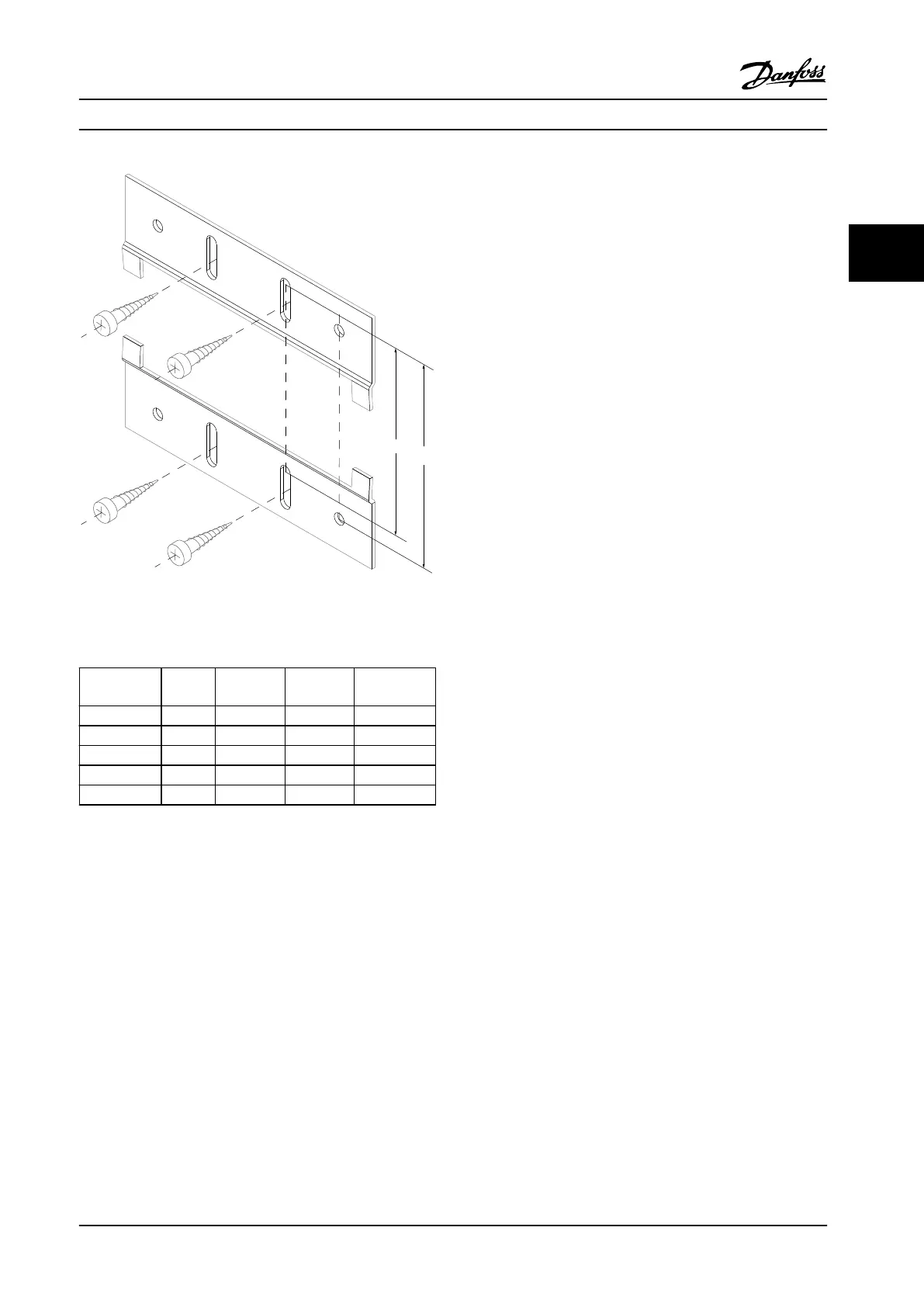

Figure 3.40 Upper Bracket
See dimensions in Table 3.23.
Enclosure
Size
IP A [mm (in)] B [mm (in)] Ordering
number
A5 55/66 480 (18.9) 495 (19.49) 130B1080
B1 21/55/66 535 (21.06) 550 (21.65) 130B1081
B2 21/55/66 705 (27.76) 720 (28.35) 130B1082
B3 21/55/66 730 (28.74) 745 (29.33) 130B1083
B4 21/55/66 820 (32.28) 835 (32.87) 130B1084
Table 3.23 Details of Mounting Brackets
System Integration Design Guide
MG20N622 Danfoss A/S © 09/2014 All rights reserved. 79
