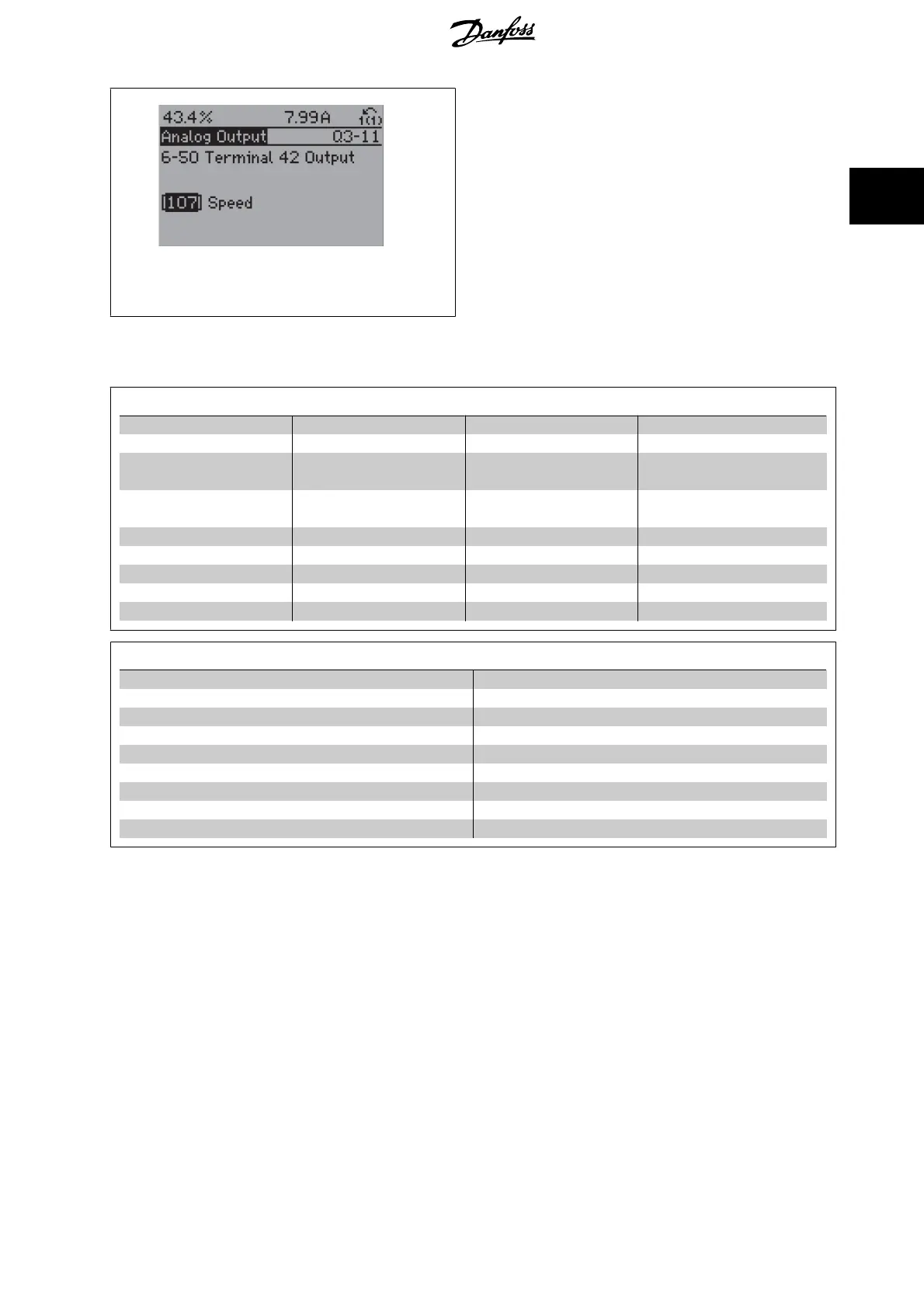

Illustration 2.13: Step 7: Use the up/down navigation keys
to select between the different choices. Press [OK].
Function Set-ups parameters
The Function Set-ups parameters are grouped in the following way:
Q3-1 General Settings
Q3-10 Adv. Motor Settings Q3-11 Analog Output Q3-12 Clock Settings Q3-13 Display Settings
Par. 1-90
Motor Thermal Protection
Par. 6-50
Terminal 42 Output
Par. 0-70
Date and Time
Par. 0-20
Display Line 1.1 Small
Par. 1-93
Thermistor Source
Par. 6-51
Terminal 42 Output Min
Scale
Par. 0-71
Date Format
Par. 0-21
Display Line 1.2 Small
Par. 1-29
Automatic Motor Adapta-
tion (AMA)
Par. 6-52
Terminal 42 Output Max
Scale
Par. 0-72
Time Format
Par. 0-22
Display Line 1.3 Small
Par. 14-01
Switching Frequency
Par. 0-74
DST/Summertime
Par. 0-23
Display Line 2 Large
Par. 4-53
Warning Speed High
Par. 0-76
DST/Summertime Start
Par. 0-24
Display Line 3 Large
Par. 0-77
DST/Summertime End
Par. 0-37
Display Text 1
Par. 0-38
Display Text 2
Par. 0-39
Display Text 3
Q3-2 Open Loop Settings
Q3-20 Digital Reference Q3-21 Analog Reference
Par. 3-02
Minimum Reference
Par. 3-02
Minimum Reference
Par. 3-03
Maximum Reference
Par. 3-03
Maximum Reference
Par. 3-10
Preset Reference
Par. 6-10
Terminal 53 Low Voltage
Par. 5-13
Terminal 29 Digital Input
Par. 6-11
Terminal 53 High Voltage
Par. 5-14
Terminal 32 Digital Input
Par. 6-12
Terminal 53 Low Current
Par. 5-15
Terminal 33 Digital Input
Par. 6-13
Terminal 53 High Current
Par. 6-14
Terminal 53 Low Ref./Feedb. Value
Par. 6-15
Terminal 53 High Ref./Feedb. Value
VLT
®
HVAC Drive Programming Guide 2 How to Programme
MG.11.C9.02 - VLT
®
is a registered Danfoss trademark
