2.1.8 Parameter Selection
In the Main Menu mode, the parameters are divided into groups. You
select a parameter group by means of the navigation keys.
The following parameter groups are accessible:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
8 Comm. and Options
9 Profibus
10 CAN Fieldbus
11 LonWorks
13 Smart Logic
14 Special Functions
15 FC Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed Loop
21 Ext. Closed Loop
22 Application Functions
23 Time-based Functions
25 Cascade Controller
26 Analog I/O Option MCB 109
After selecting a parameter group, choose a parameter by means of the
navigation keys.

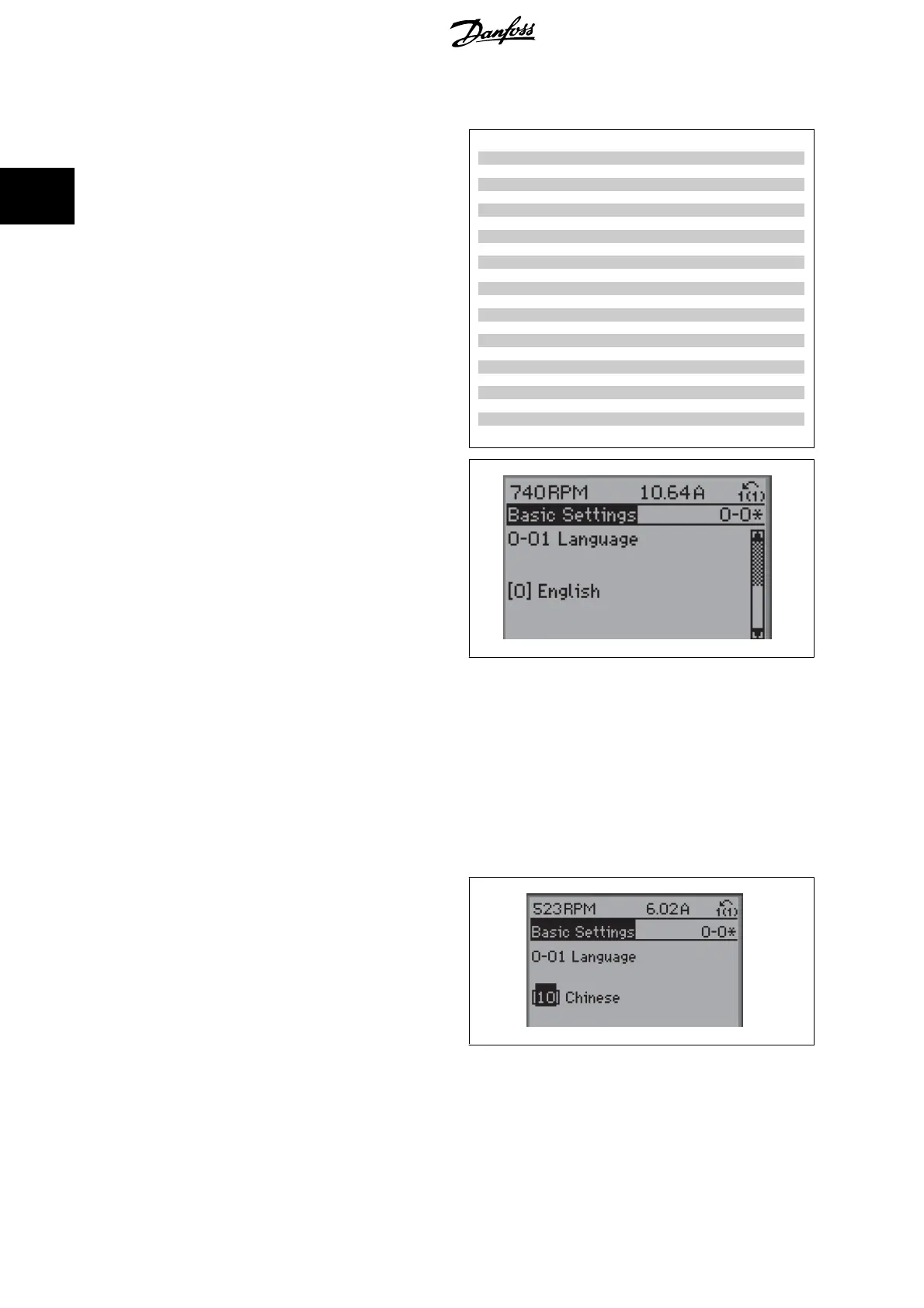

The middle section on the display shows the parameter number and name
as well as the selected parameter value.
1
2.1.9 Changing Data
The procedure for changing data is the same whether you select a parameter in the Quick menu or the Main menu mode. Press [OK] to change the
selected parameter.
The procedure for changing data depends on whether the selected parameter represents a numerical data value or a text value.
2.1.10 Changing a Text Value
If the selected parameter is a text value, change the text value by means
of the [
▲
] [
▼
] navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value you want to save and press [OK].
130BP068.10
2 How to Programme VLT
®
HVAC Drive Programming Guide
28
MG.11.C9.02 - VLT
®
is a registered Danfoss trademark
2
