Danfoss VLT Programming Guide

Q3-4 Application Settings
Q3-40 Fan Functions Q3-41 Pump Functions Q3-42 Compressor Functions
Par. 22-60 Broken Belt Function Par. 22-20 Low Power Auto Set-up Par. 1-03 Torque Characteristics
Par. 22-61 Broken Belt Torque Par. 22-21 Low Power Detection Par. 1-71 Start Delay
Par. 22-62 Broken Belt Delay Par. 22-22 Low Speed Detection Par. 22-75 Short Cycle Protection
Par. 4-64 Semi-Auto Bypass Set-up Par. 22-23 No-Flow Function Par. 22-76 Interval between Starts
Par. 1-03 Torque Characteristics Par. 22-24 No-Flow Delay Par. 22-77 Minimum Run Time
Par. 22-22 Low Speed Detection Par. 22-40 Minimum Run Time Par. 5-01 Terminal 27 Mode
Par. 22-23 No-Flow Function Par. 22-41 Minimum Sleep Time Par. 5-02 Terminal 29 Mode
Par. 22-24 No-Flow Delay Par. 22-42 Wake-up Speed [RPM] Par. 5-12 Terminal 27 Digital Input
Par. 22-40 Minimum Run Time Par. 22-43 Wake-up Speed [Hz] Par. 5-13 Terminal 29 Digital Input
Par. 22-41 Minimum Sleep Time Par. 22-44 Wake-up Ref./FB Difference Par. 5-40 Function Relay
Par. 22-42 Wake-up Speed [RPM] Par. 22-45 Setpoint Boost Par. 1-73 Flying Start
Par. 22-43 Wake-up Speed [Hz] Par. 22-46 Maximum Boost Time Par. 1-86 Trip Speed Low [RPM]
Par. 22-44 Wake-up Ref./FB Difference Par. 22-26 Dry Pump Function Par. 1-87 Trip Speed Low [Hz]
Par. 22-45 Setpoint Boost Par. 22-27 Dry Pump Delay
Par. 22-46 Maximum Boost Time Par. 22-80 Flow Compensation
Par. 2-10 Brake Function Par. 22-81 Square-linear Curve Approximation
Par. 2-16 AC brake Max. Current Par. 22-82 Work Point Calculation
Par. 2-17 Over-voltage Control Par. 22-83 Speed at No-Flow [RPM]
Par. 1-73 Flying Start Par. 22-84 Speed at No-Flow [Hz]
Par. 1-71 Start Delay Par. 22-85 Speed at Design Point [RPM]
Par. 1-80 Function at Stop Par. 22-86 Speed at Design Point [Hz]
Par. 2-00 DC Hold/Preheat Current Par. 22-87 Pressure at No-Flow Speed
Par. 4-10 Motor Speed Direction Par. 22-88 Pressure at Rated Speed
Par. 22-89 Flow at Design Point
Par. 22-90 Flow at Rated Speed
Par. 1-03 Torque Characteristics
Par. 1-73 Flying Start
See also VLT HVAC Drive Programming Guide for a detailed description of the Function Setups parameter groups.

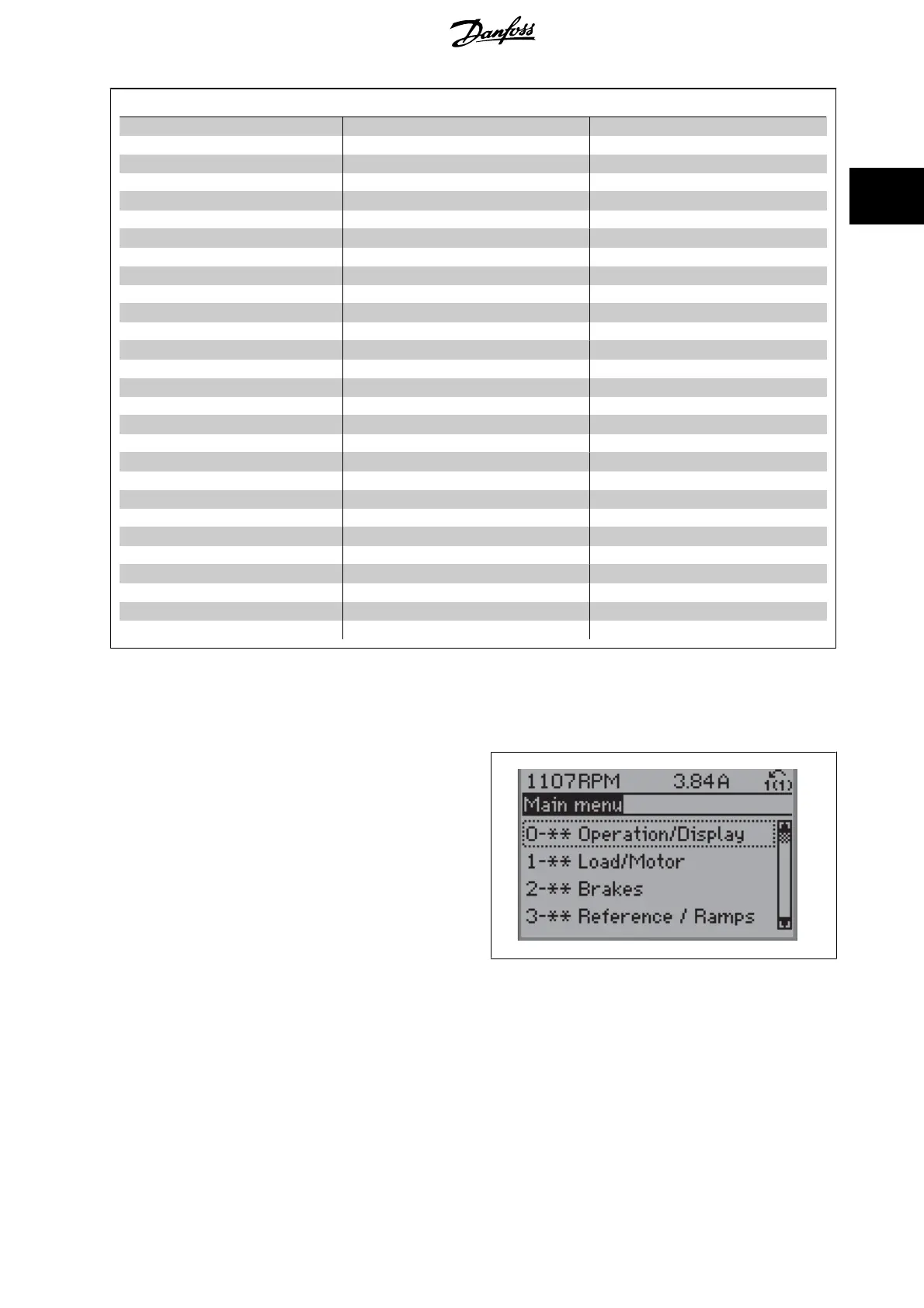

2.1.7 Main Menu Mode
Select the Main Menu mode by pressing the [Main Menu] key. The below
read-out appears on the display.
The middle and bottom sections on the display show a list of parameter
groups which can be chosen by toggling the up and down buttons.
1
30BP066.10
Each parameter has a name and number which remain the same regardless of the programming mode. In the Main Menu mode, the parameters are
divided into groups. The first digit of the parameter number (from the left) indicates the parameter group number.
All parameters can be changed in the Main Menu. However, depending on the choice of configuration (par. 1-00
Configuration Mode ), some parameters
can be hidden.
VLT
®
HVAC Drive Programming Guide 2 How to Programme
MG.11.C9.02 - VLT
®
is a registered Danfoss trademark 27
2

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
