Standard Cable Pinouts
Product Reference Guide
283
Standard Cable Pinouts
Figure 24
and
Ta ble 25
provide standard pinout information for the reader’s cable.

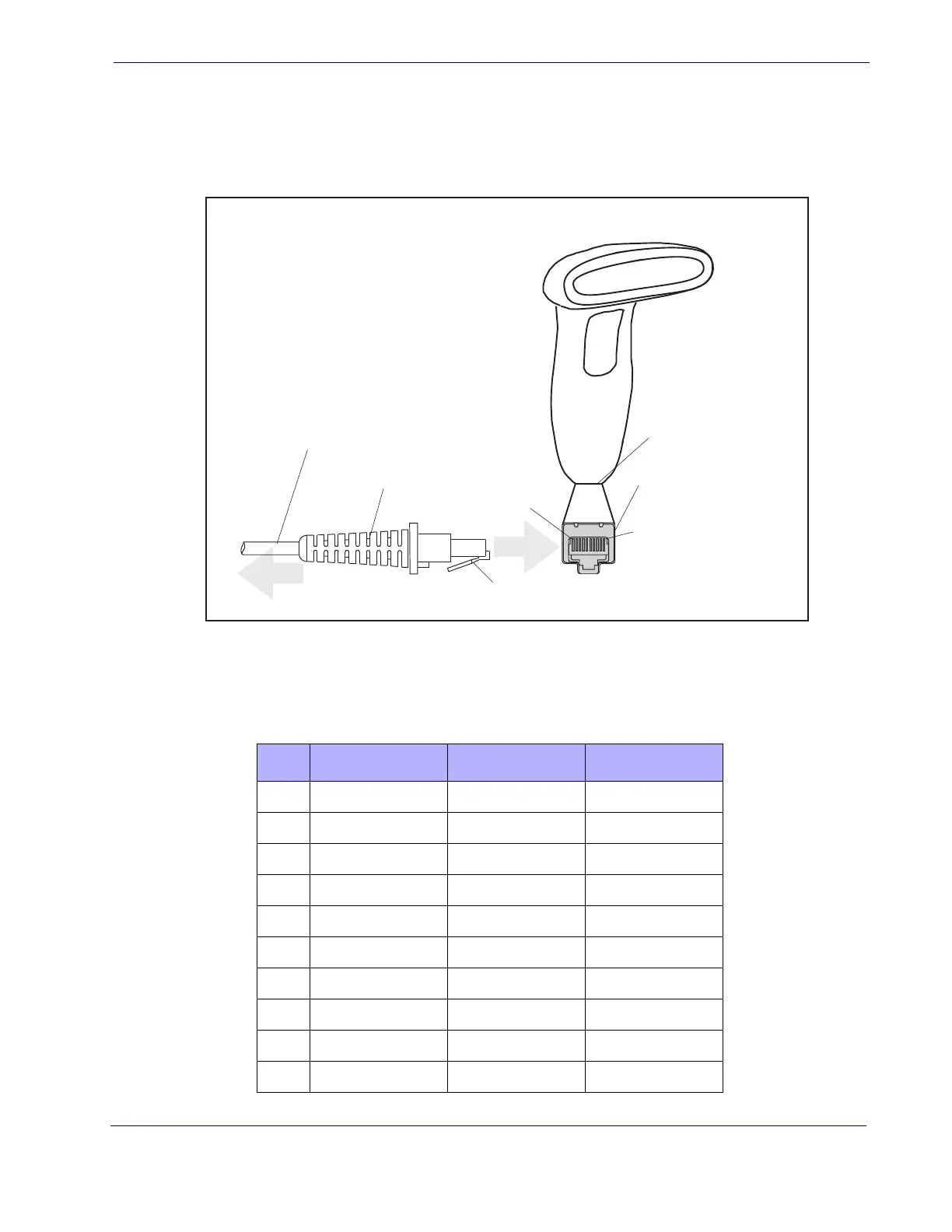

Figure 24. Standard Cable Pinouts
The signal descriptions in
Table 25
apply to the connector on the reader and are for ref-
erence only.
Table 25.
Standard Cable Pinouts — Reader Side
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Imager
Interface Cable Port
Pin 1
Pin 10
Pin RS-232 USB Keyboard Wedge
1RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5RX
6TX
7 VCC VCC VCC
8CLKOUT (PC side)
9DATAOUT (PC side)
10 CTS (in)
