Enter/Exit Programming Mode
50
Touch TD1100

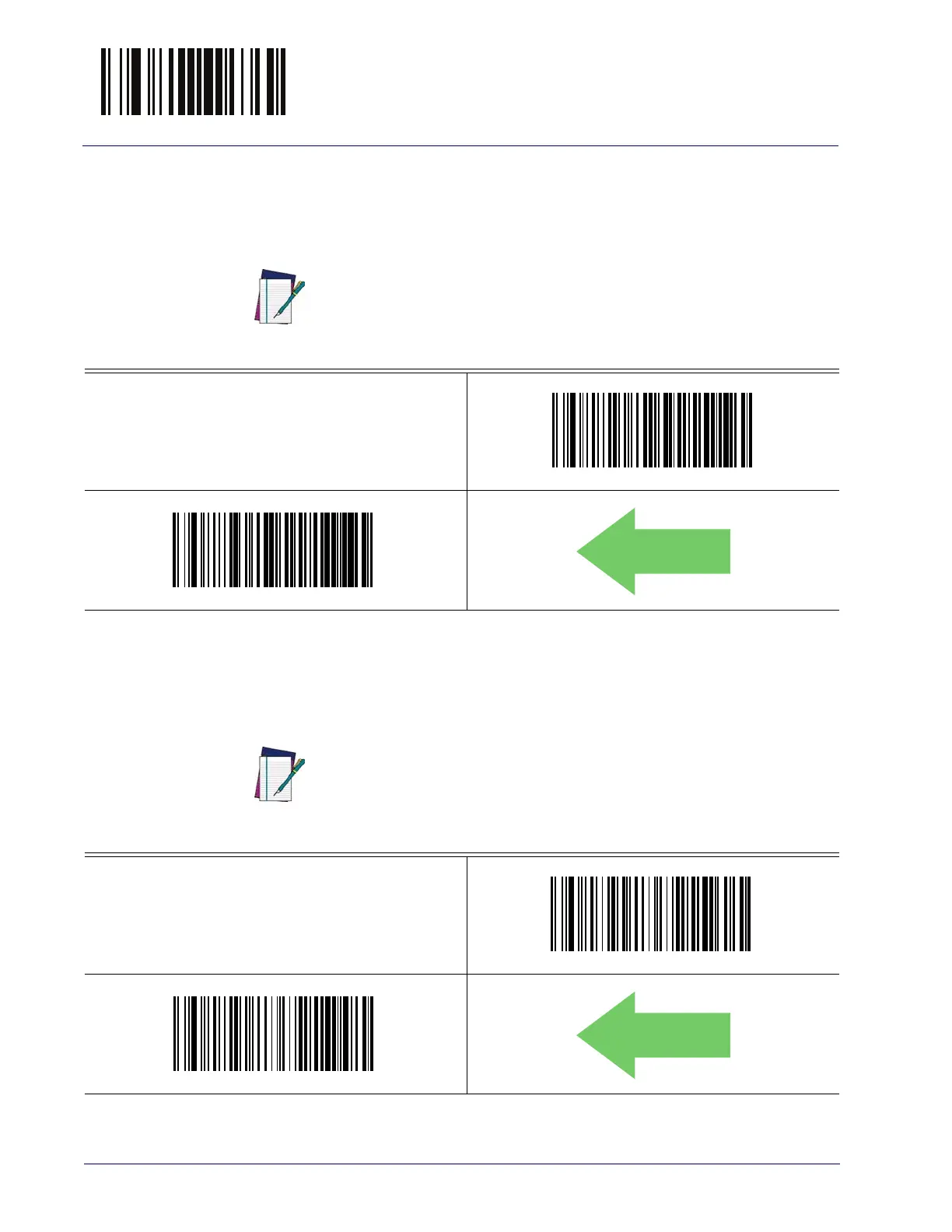

Wand Polarity
This option specifies the polarity of the Wand output signal. Choices are:
• Quiet zones and spaces are high, bars are low
• Quiet zones and spaces are low, bars are high
Wand Idle State
This feature specifies the level of the Wand output signal when the reader is idle.
NOTE
TTL logic levels:
0V <= Low <= 0.7V
2.4V <= High <= 5.25V
Wand Polarity = Quiet Zones & Spaces High, Bars Low
Wand Polarity = Quiet Zones & Spaces Low, Bars High
NOTE
TTL logic levels:
0V <= Low <= 0.7V
2.4V <= High <= 5.25V
Wand Idle State = Low
Wand Idle State = High
To Next Page
